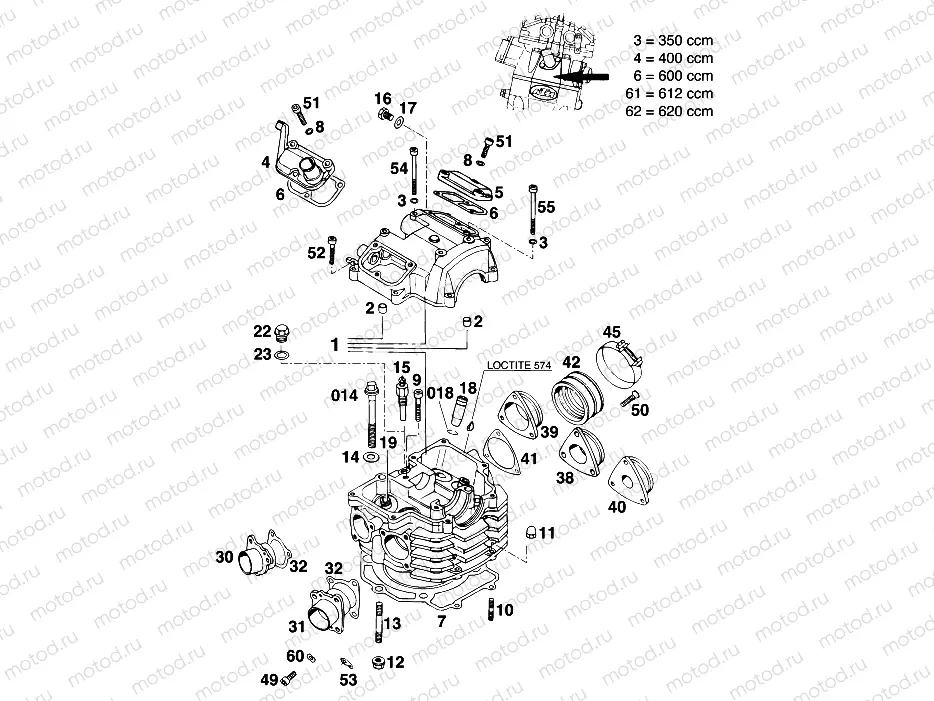

CYLINDER HEAD

CYLINDER HEAD
Например: 57536020000
1
57536020000
* CYLINDER HEAD CPL. 350 LC4'9
1
57636020000
* CYLINDER HEAD CPL. 400 LC4'9
1
58336020000
CYLINDER HEAD CPL. 620 LC4'94
2
49030090000
Dowel 9,8 x 7 x 10
4
58036152600
VALVE COVER FRONT '99
5
58036052200
VALVE COVER REAR
6
58036053000
Joint de couvercle de soupape
7
57530036000
Joint culasse
7
58030136200
Joint culasse
7
58330036000
Joint culasse
8
0603061001
CU-SEAL RING DIN7603-6X10X1
9
0912060353
AH SCREW DIN0912-M 6X35
10
0551060253
THREAD PIN DIN0551-M 6X25
10
0551060303
THREAD PIN DIN0551-M 6X30
11
61230045000
CAP NUT M6 STAINLESS STEEL
12
49030028000
Nut
13
54330043000
STUD DIN0835-M 8X40
13
0835080355
STUD DIN0835-M 8X35 10.9
14
58036098000
CU-SEAL RING 10 X 20 X 1
14
58036099100
COLLAR SCREW M10X80 WS=13 10.9
15
42011252000
TEMPERATURE SWITCH VDO
16
0933080123
null
17
0603082121
SEAL RING CU DIN7603- 8X12X1
18
0993012000
CIRCLIP DIN7993-RW12
18
58036026644
VALVE GUIDE INTAKE CPL.
19
58036126644
VALVE GUIDE EXHAUST CPL.
20
56535006000
CONNECTING ANGLE
21
56535106000
GASKET FOR CONNECTING ANGLE
22
54630021000
HH PLUG M10X1 WS13
23
0603100141
Rondelle
25
0933080103
HH SCREW DIN0933-M 8X10
30
58036040000
EXHAUST FLANGE R/S
31
58036140000
EXHAUST FLANGE L/S
32
58036041000
Exhaust gasket
38
58136142026
INTAKE FLANGE D=26MM
38
58136142028
INTAKE FLANGE D=28MM
39
57536042000
null
39
58136042000
INTAKE FLANGE D=38MM
40
58136142023
null
41
58136043000
INTAKE FLANGE GASKET
42
57536044100
INTAKE BOOT D=39MM 540 LC4 '98
42
58136044100
Pipe d’admission (38 mm)
45
56530061000
CLAMP SM12/A60
49
0912060163
AH SCREW DIN0912-M 6X16
50
0991060163
FLAT HEAD SCR. DIN7991-M 6X16
51
0912060203
AH SCREW DIN0912-M 6X20
52
0912060253
AH SCREW DIN0912-M 6X25
53
51005074000
RETAINING PLATE
54
0912060603
AH SCREW DIN0921-M 6X60
55
0912060703
AH SCREW DIN0912-M 6X70
60
0137060000
SPRING WASHER DIN0137-B 6
