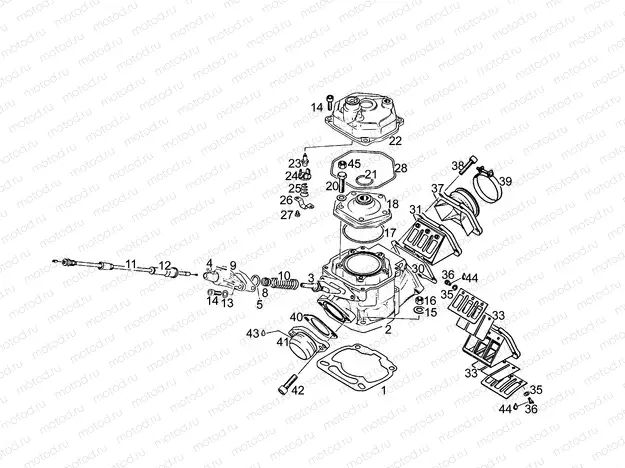

Cylinder

Cylinder
1
AP0650096
Joint d'embase cylindre
1
AP0650095
Joint d'embase cylindre
1
AP0650097
Cylinder base gasket 0,8
2
AP8106365
Worked cylinder
2
AP0223614
Cylinder 9 holes
2
AP0223615
Cylinder
3
AP0253722
Exhaust valve
4
AP0253465
Valve body
5
AP0230880
pc - O-Ring
8
AP0230810
Valve stem seal
9
AP0250975
Gasket 0,8
10
AP0239052
Spring
11
AP0297746
Elect.rave valve cable
12
AP0860460
Rubber cap
13
AP0845020
Spring washer B6
14
AP0241930
Vis
15
AP0250311
Rondelle
16
AP0942674
Nut
17
AP0250160
O-Ring (64x2)
18
2R000073
Cylinder head
18
AP0223383
Cylinder head cover
20
AP0940065
Stud bolt
20
AP0940485
Vis
21
AP0430782
pc - O-Ring (23,3x2,4)
22
AP0613101
Cylinder head cover
23
AP0222120
Thermostat
23
AP0222122
Thermostat
24
AP0222175
Maintenance
25
AP0239950
Spring
26
AP0222202
Bracket
27
AP0240195
Vis (spec)
28
AP0250280
pc - O-Ring (105x2,5)
30
AP0250521
4 pc - Intake manifold Gasket
31
AP0224389
Reed valve
31
AP0224389
Reed valve
33
AP0224389
Reed valve
33
AP8106266
Blade C40
35
AP0945758
Break washer A4
36
AP0940235
Round screw M4x8
37
AP0267915
Carburettor flange
38
AP0840861
Vis (M6x25)
39
AP0251850
Collier
40
AP0250271
Exhaust gasket
41
AP8119402
Exhaust flange cpl.
41
AP0273970
Exhaust flange cpl.
42
AP0240071
Vis (M8x20)
43
AP0297434
Loctite Anti Seize 10 GR.
44
AP0899788
Loctite (green) 648 5gr.
45
AP0242209
Nut (M8)

Узлы для RS 125 2T APRILIA RS 125
