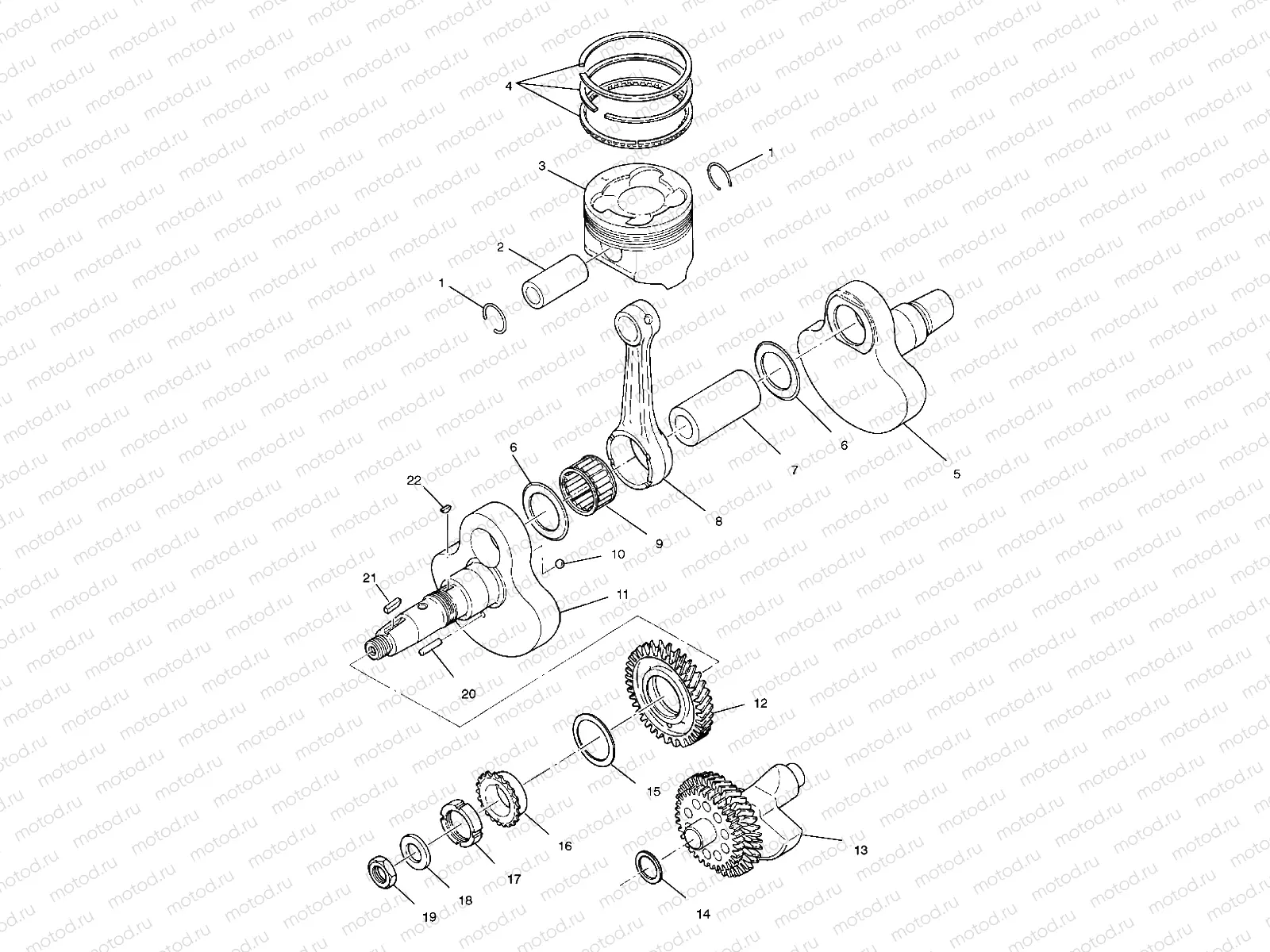

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AA) Polaris 2002 ATV CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03) | CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03)

CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03) | CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03)

CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03) | CRANKSHAFT AND PISTON - A02CH42AA (4968536853D03)

Например: 3085534

1

3085534

CLIP

2

3084886

Piston pin

3

3087232

Piston (0.50MM O/S)

3

3087231

Piston (0.25MM O/S)

3

3086207

SET PISTON STANDARD

4

3087233

SET PISTON RING STANDARD

4

3087235

Kir segment (0.50MM O/S)

4

3087234

Kir segment (0.25MM O/S)

5

3085340

CRANKSHAFT #2

6

3085344

SPACER CRANK PIN

7

3085375

PIN-CRANK COMPL.

8

3086206

ROD CONNECTING

9

3085400

BEARING LARGE END

10

3085024

BALL STEEL

11

3085339

CRANKSHAFT #1

11

3084881

CRANKSHAFT

12

3085852

BALANCER,GEAR,1 *

13

3085404

SHAFT BALANCER

14

3084897

SPACER 1.2

14

3084895

SPACER 0.8

14

3084896

SPACER 1.0

15

3084892

SPACER 0.8

15

3084894

SPACER 1.2

15

3084893

SPACER 1.0

15

3240088

SPACER 0.6

16

3084882

SPROCKET 1

17

3085528

NUT SLIT

18

3086767

Rondelle

19

3083905

NUT LOCK

20

3085346

PIN, DOWEL

21

3081447

KEY

22

3081543

KEY WOODRUFF
