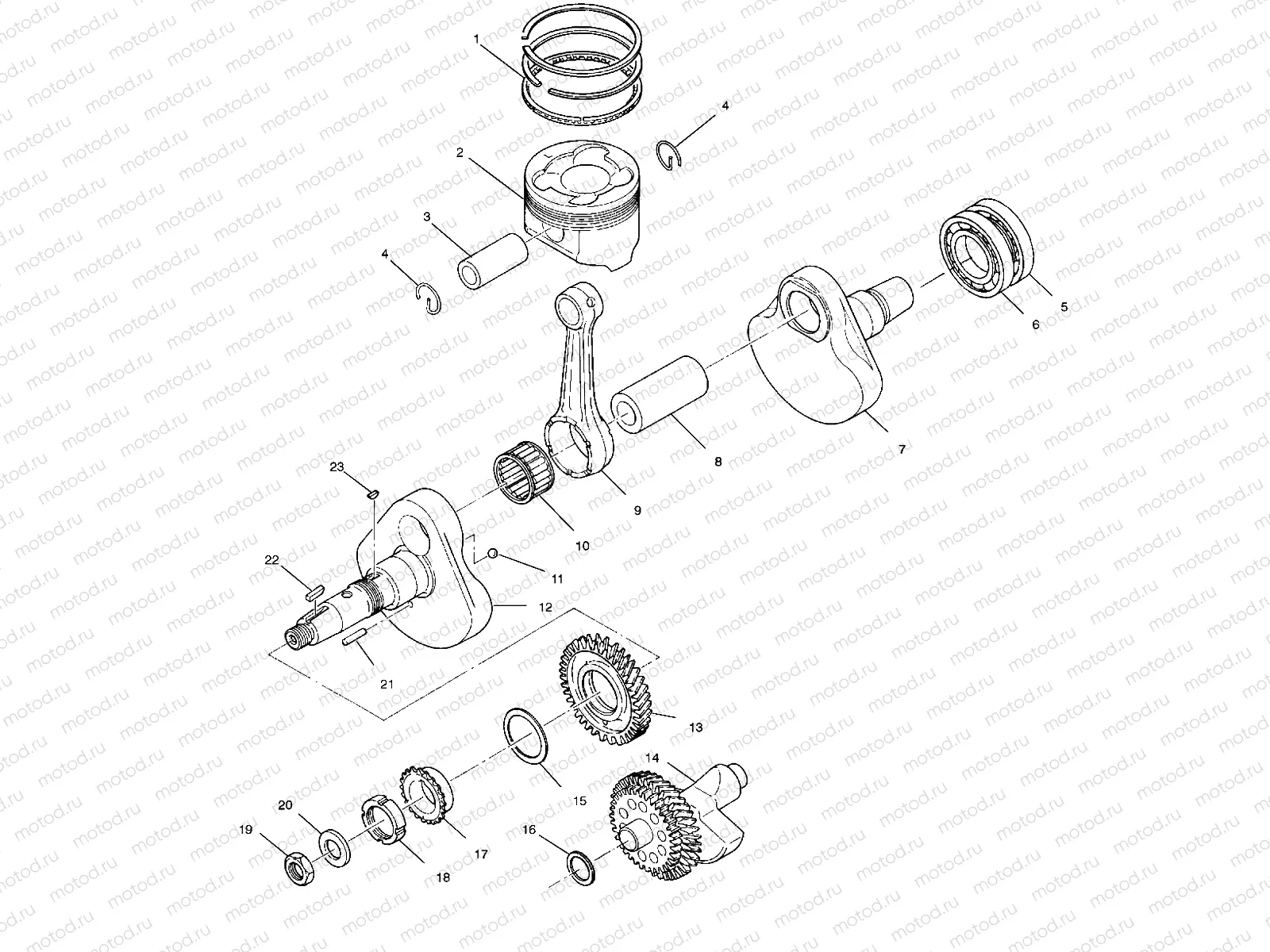

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 500 DUSE HO (A01CH50AF) Polaris 2001 ATV CRANKSHAFT and PISTON - A01CH50EB (4964466446D005) | CRANKSHAFT and PISTON - A01CH50EB (4964466446D005)

CRANKSHAFT and PISTON - A01CH50EB (4964466446D005) | CRANKSHAFT and PISTON - A01CH50EB (4964466446D005)

CRANKSHAFT and PISTON - A01CH50EB (4964466446D005) | CRANKSHAFT and PISTON - A01CH50EB (4964466446D005)

Например: 3087225

1

3087225

Kir segment (0.25MM O/S)

1

3087224

SET PISTON RING STANDARD

1

3087226

Kir segment (0.50MM O/S)

2

3087172

Piston (0.50MM O/S)

2

3087171

Piston (0.25MM O/S)

2

3087170

SET PISTON STANDARD

3

LR--

CALIPER, BRAKE, RH

4

3085534

CLIP

5

3080676

BEARING BALL

6

3085815

BEARING BALL

7

3085812

CRANKSHAFT #2

8

3085375

PIN-CRANK COMPL.

9

3090273

CONNECTING ROD

10

3085400

BEARING LARGE END

11

3085024

BALL STEEL

12

9990000

Suspension, Rear

12

3090323

Vilebrequin

13

3085852

BALANCER,GEAR,1 *

14

3086837

SHAFT,BALANCER *

15

3084894

SPACER 1.2

15

3084892

SPACER 0.8

15

3084893

SPACER 1.0

15

3240088

SPACER 0.6

16

3084896

SPACER 1.0

16

3084895

SPACER 0.8

16

3084897

SPACER 1.2

17

3084882

SPROCKET 1

18

3085528

NUT SLIT

19

3083905

NUT LOCK

20

3086767

Rondelle

21

3085346

PIN, DOWEL

22

3081447

KEY

23

3081543

KEY WOODRUFF
