Главная Каталог товаров APRILIA Motor EPC RSV 4 1000 APRILIA Motor 2015 APRILIA RSV 4 1000 RSV4 1000 Racing Factory ABS APRILIA RSV 4 1000 (VIN: ZD4RKL00, ZD4RKL01) Crankcases I

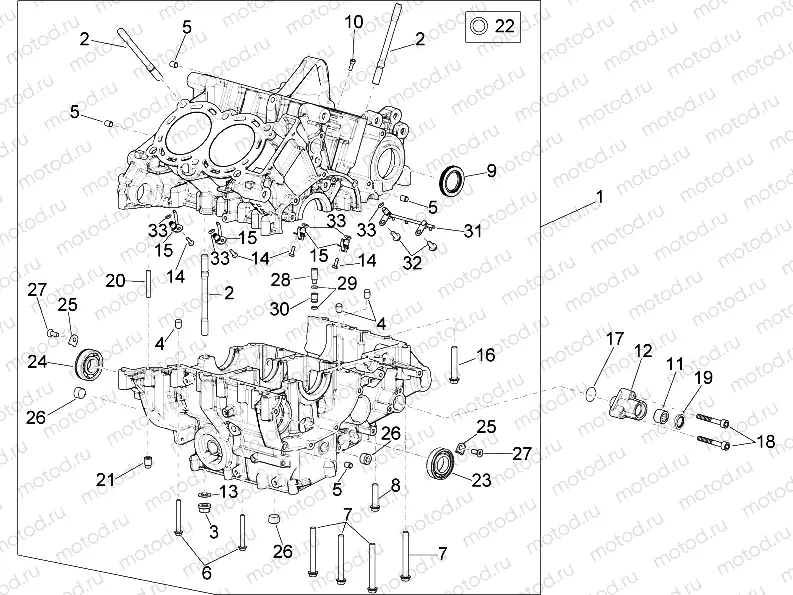

Crankcases I

Crankcases I
Например: 2A000263
1
2A000263
Carter, pair
2
857087
Stud bolt
3
897434
Flanged nut M10x1
4
857427
Pin M8x12
5
411209
Pin
6
AP9100433
Screw w/ flange M6x50
7
AP8152294
0 pc - Vis
8
AP8152289
Vis
9
857128
Joint (30x47x7)
10
AP8152003
4 pc - Vis
11
B045224
Needle bearing
12
857090
Maintenance
13
857208
Rondelle
14
B046202
Screw TB 4X12 TORX
15
2A000293
Piston cooling jet
16
AP8152292
0 pc - Vis
17
857109
2 pc - O-Ring (17,12x2,62)
18
AP8150285
pc - Vis
19
857127
Gasket ring 12x22
20
2A000295
Stud bolt
21
857496
Nut (Special)
22
857144
O-Ring
23
897436
Roulement
24
897435
Roulement
25
AP9150145
Check bearing plate
26
974060
Plug M16X1,5
27
AP8152166
screw M6x16
28
B045126
Relief Valve
29
AP8120965
pc - O-Ring
30
2A000363
Lubricating jet
31
2A000569
Lubrication pipe
32
AP8152277
Vis (6x12)
33
GU90706009
2 pc - O-Ring (6x1)
