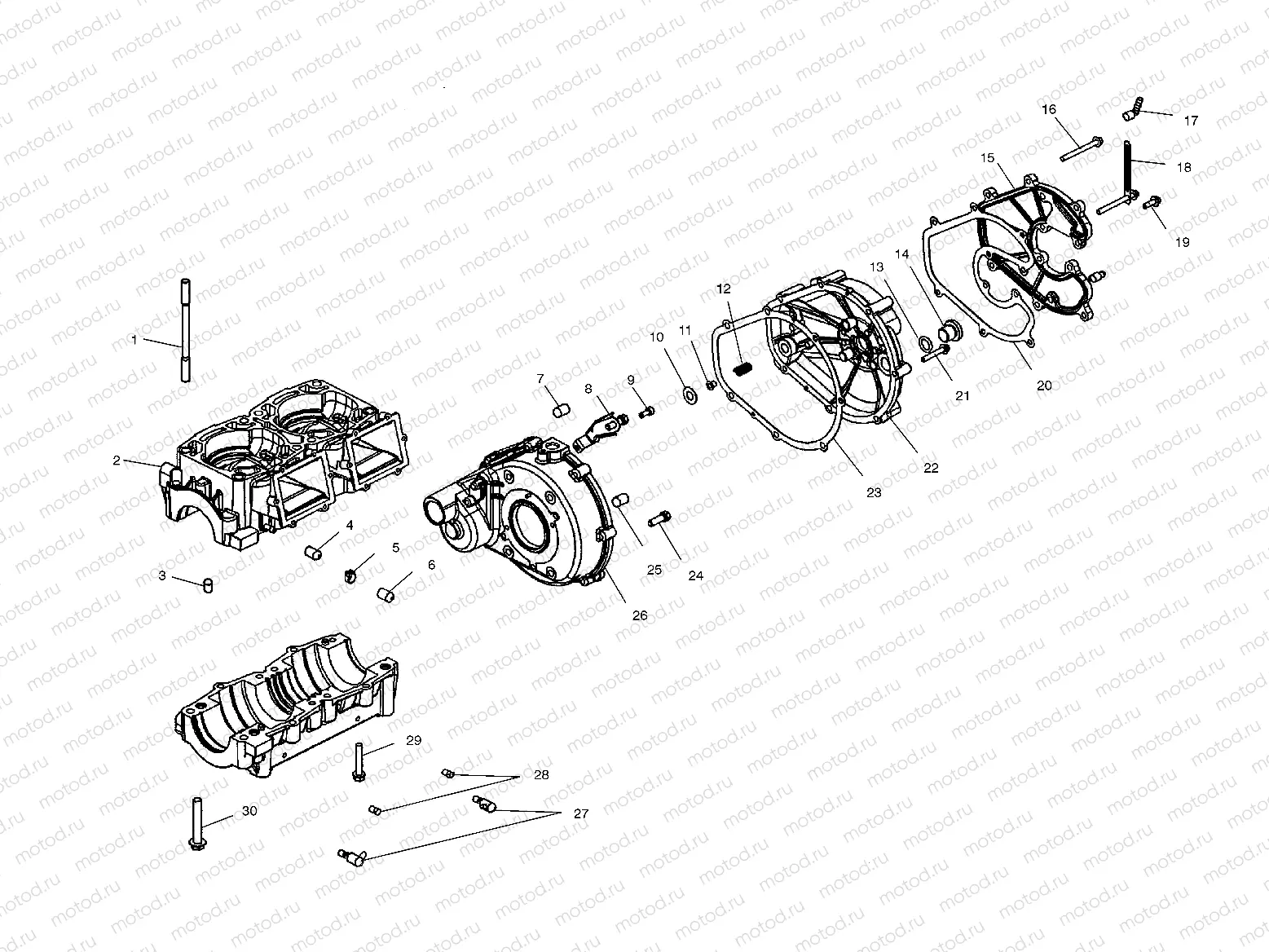

Главная Каталог товаров Polaris EPC 2002 Polaris PWC Polaris 2002 VIRAGE I (W025101C) Polaris 2002 PWC CRANKCASE - W025101C/W025101D/W025101I (4971387138C03) | CRANKCASE - W025101C/W025101D/W025101I (4971387138C03)

CRANKCASE - W025101C/W025101D/W025101I (4971387138C03) | CRANKCASE - W025101C/W025101D/W025101I (4971387138C03)

CRANKCASE - W025101C/W025101D/W025101I (4971387138C03) | CRANKCASE - W025101C/W025101D/W025101I (4971387138C03)

Например: 5131677

1

5131677

STUD CYL.FLANGE 152MM SPS

2

2202189

KIT-CRANKCASE 777 PWC 1202406

3

7663001

Dowel pin

4

7052145

FITTING

5

7080830

CLAMP-HOSE,OETIKER,11.4-13.3SS

6

5411736

CAP,PULSE FITTING

7

3514378

BUSHING-12.08X17X10

8

5243231

CLAMP-STATOR WIRES

9

7517431

Vis

10

3569806

BUSHING

11

3574214

BUSHING,PLASTIC

12

7041457

Spring

13

5411564

O-Ring

14

5433820

PLUG HOLE TMNG 3/4-16 NYLON

15

5630981-329

Cover, Water Jacket

16

7517662

Vis

17

7052156

FITTING,1/4"HOSE

18

7080654

RETAINER,SS.

19

7516809

BOLT(10)

20

5812011

GASKET,WATER JACKET,COVER

21

7516806

Vis

22

1202574

Carter Couverture Générateur

23

5811550

GASKET FLYWHEEL COVER

24

7516723

Vis

25

7663002

PIN, DOWEL

26

1202023

FLYWHEEL HOUSING DFI MOD

27

7051020

VALVE CHECK 90 DEG.

28

7051529

PLUG

29

7516725

BOLT S.S

30

7516913

BOLT, S.S
