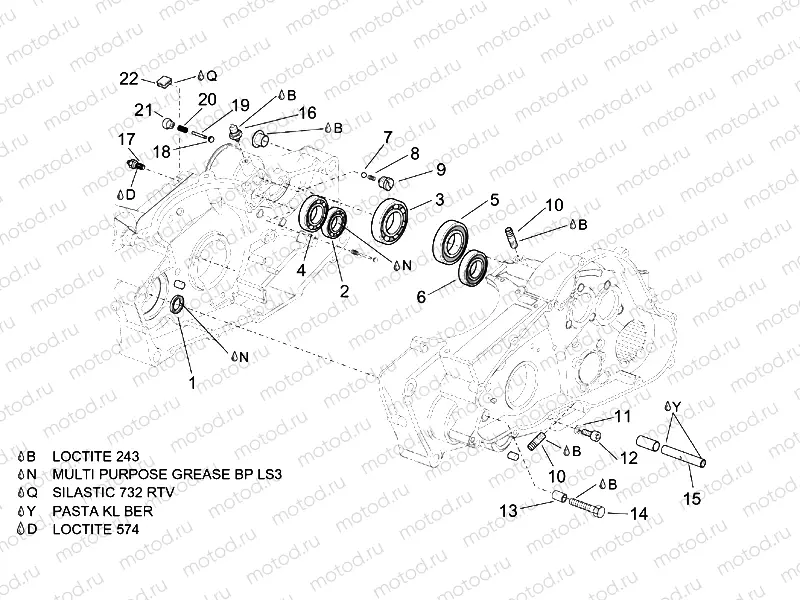

Crankcase II

Crankcase II
1
AP0430550
Joint
2
AP0230395
Joint
3
AP0932825
Bearing
4
AP0232501
Bearing 6303 E-RS1
5
AP0232764
Bearing 6205
6
AP0932815
Bearing 6303 ETN9
7
AP0932830
Ball
8
AP0239280
Compression spring 13,5
9
AP0256170
Valve closer screw
10
AP0256330
Joint m12x1,5
11
AP0950141
Gasket ring
12
AP0440193
Vis
13
AP0247790
Spacer 6,2x10x14,5
14
AP0941500
Hex screw
15
AP0237060
Free pinion shaft
16
1A024308R
Minimum oil pressure sensor
17
AP0241854
Contact screw
18
AP0260570
Oil anti-return valve
19
AP0256150
Valve pin
20
AP0239810
Spring
22
AP0260760
Couvrir

Узлы для Pegaso 650 IE APRILIA PEGASO (VIN: ZD4RW)
