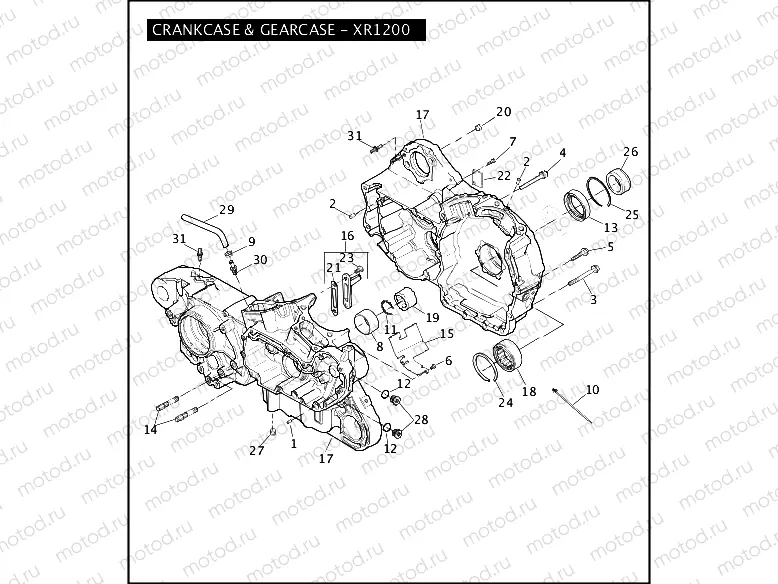

CRANKCASE & GEARCASE - XR1200

CRANKCASE & GEARCASE - XR1200

Например: 215

1

215

Dowel pin

2

358

Dowel pin

3

835

SCREW, FLANGE HEAD W/LOCKER

4

1028

SCREW,SEMS,HEX SCKT/LOCK

5

1048

SCREW FLANGE HD

6

2501A

Vis

7

4091

Vis

8

8881

RACE BEARING, OUTER

9

10080

CLAMP, DRAIN HOSE

10

10177

CABLE STRAP, PLUG IN

11

11177A

RETAINING RING

12

11290

O-RING, NEUTRAL GEAR SWITCH

13

12068

OIL SEAL

14

16899-02

STUD, TAP END

15

17525-08

OIL DEFLECTOR PLATE

16

62700-014

PISTON OIL JET ASSY W/O SCREWS

17

24475-08

CRANKCASE SET, W/DRIVE GEAR, B

18

24605-07

ROLLER BEARING

19

24647-87

BEARING, GEARSHAFT - BLUE

19

24650-87

BEARING, GEARSHAFT - RED

19

24659-87

BEARING, GEARSHAFT - WHITE/GRA

19

24660-87

BEARING, GEARSHAFT - GREEN

20

24754-75A

DOWEL PIN,SPLIT,HOLLOW

21

26638-00Y

GASKET, OIL JET

22

29950-91

COVER STATOR WIRE

23

32617-00Y

SCREW, TIMING PLATE

24

35114-02

RETAINING RING

25

35118-03

RETAINING RING

26

40254-02

SPACER, SPROCKET SHAFT

27

45830-48

PLUG PIPE

28

60330-08

PLUG ASY,W/O-RING

29

63508-04

VENT HOSE

30

63533-41A

FITTING,STRAIGHT,W/SEALANT

31

65088-04

STUD, GROUND
