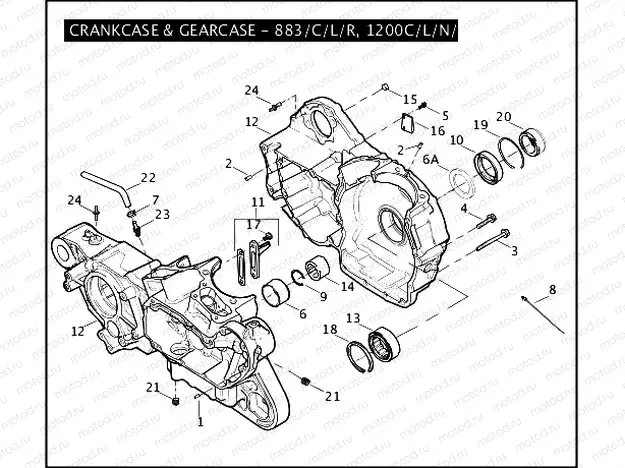

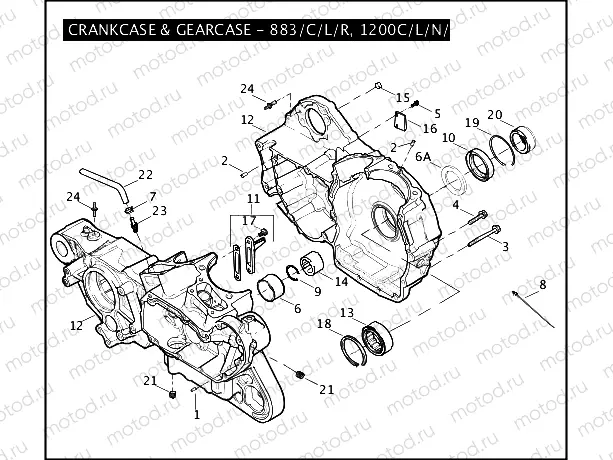

CRANKCASE & GEARCASE - 883/C/L/R, 1200C/L/N/R

CRANKCASE & GEARCASE - 883/C/L/R, 1200C/L/N/R

Например: 215

1

215

Dowel pin

2

358

Dowel pin

3

835

SCREW, FLANGE HEAD W/LOCKER

4

1048

SCREW FLANGE HD

5

4091

Vis

6

8881

RACE BEARING, OUTER

6

8972

THRUST WASHER, FLYWHEEL

7

10080

CLAMP, DRAIN HOSE

8

10177

CABLE STRAP, PLUG IN

9

11177A

RETAINING RING

10

12068

OIL SEAL

11

62700-014

PISTON OIL JET ASSY W/O SCREWS

12

24466-06B

CRANKCASE SET, W/DRIVE GEAR, B

12

24470-06B

CRANKCASE SET, W/DRIVE GEAR, S

12

24745-07A

CRANKCASE SET, W/DRIVE GEAR, G

13

24605-07

ROLLER BEARING

14

24647-87

BEARING, GEARSHAFT - BLUE

14

24650-87

BEARING, GEARSHAFT - RED

14

24659-87

BEARING, GEARSHAFT - WHITE/GRA

14

24660-87

BEARING, GEARSHAFT - GREEN

15

24754-75A

DOWEL PIN,SPLIT,HOLLOW

16

29950-91

COVER STATOR WIRE

17

32617-00Y

SCREW, TIMING PLATE

18

35114-02

RETAINING RING

19

35118-03

RETAINING RING

20

40254-02

SPACER, SPROCKET SHAFT

21

45830-48

PLUG PIPE

22

63508-04

VENT HOSE

23

63533-41A

FITTING,STRAIGHT,W/SEALANT

24

65088-04

STUD, GROUND
