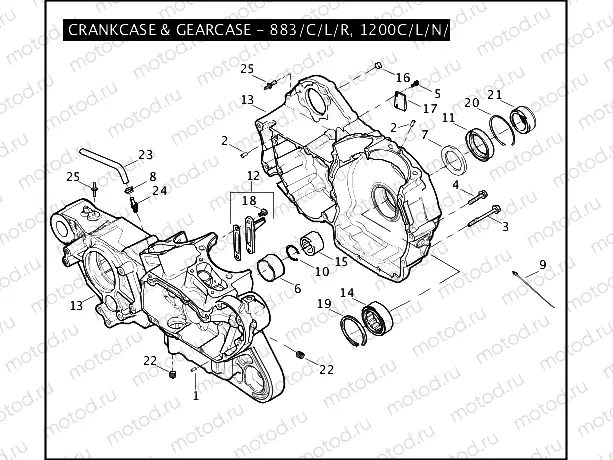

CRANKCASE & GEARCASE

CRANKCASE & GEARCASE

Например: 215

1

215

Dowel pin

2

358

Dowel pin

3

835

SCREW, FLANGE HEAD W/LOCKER

4

1048

SCREW FLANGE HD

5

4091

Vis

6

8881

RACE BEARING, OUTER

7

8972

THRUST WASHER, FLYWHEEL

8

10080

CLAMP, DRAIN HOSE

9

10177

CABLE STRAP, PLUG IN

10

11177A

RETAINING RING

11

12068

OIL SEAL

12

62700-014

PISTON OIL JET ASSY W/O SCREWS

13

24466-06B

CRANKCASE SET, W/DRIVE GEAR, B

13

24470-06B

CRANKCASE SET, W/DRIVE GEAR, S

13

24745-07A

CRANKCASE SET, W/DRIVE GEAR, G

14

24605-07

ROLLER BEARING

15

24647-87

BEARING, GEARSHAFT - BLUE

15

24650-87

BEARING, GEARSHAFT - RED

15

24659-87

BEARING, GEARSHAFT - WHITE/GRA

15

24660-87

BEARING, GEARSHAFT - GREEN

16

24754-75A

DOWEL PIN,SPLIT,HOLLOW

17

29950-91

COVER STATOR WIRE

18

32617-00Y

SCREW, TIMING PLATE

19

35114-02

RETAINING RING

20

35118-03

RETAINING RING

21

40254-02

SPACER, SPROCKET SHAFT

22

45830-48

PLUG PIPE

23

63508-04

VENT HOSE

24

63533-41A

FITTING,STRAIGHT,W/SEALANT

25

65088-04

STUD, GROUND
