Главная Каталог товаров DUCATI EPC 2011 DUCATI Diavel Carbon DUCATI 2011 (VIN: ZDM13BLW, ZDMG100A) CRANKCASE » ENGINE CASE

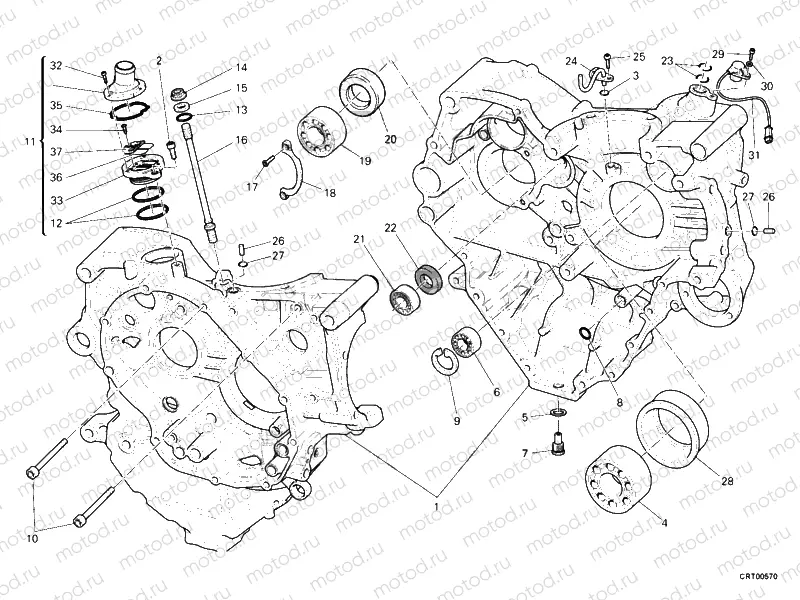

CRANKCASE » ENGINE CASE

CRANKCASE » ENGINE CASE
Например: 22522621D
1
22522621D
COMPLETE HALF-CRANKCASES PAIR
2
77150653B
Vis
3
88650131A
pc - . O-RING 3.68X1.78
4
751913380
Roulement
5
85250421A
Rondelle
6
70250081A
Roulement
7
89320062A
Vis de vidange d'huile
8
88641321A
O-Ring
9
735033380
Seeger
10
77151398B
Vis
11
59320581B
VALVE, BREATHER
12
46320222A
pc - O-Ring
13
88641181A
O-Ring
14
74810501A
pc - Nut (M10)
15
85610642A
Rondelle
16
76610551D
Stud bolt
17
720941616
.SCREW TSPEI M6X12
18
82610121A
PLATE, RETAINER
19
70240131A
Roulement
20
93040221A
.SEAL, OIL 35X52X7
21
70240331A
Roulement
22
93040932A
.SEAL, OIL 17X25X4
23
88640331A
O-Ring
24
87511461B
JET
25
77510311B
Vis (M5x10)
26
86010051B
DOWEL
27
88610241A
O-Ring
28
71011251A
BUSHING, BEARING LH
29
77550211B
Vis (M6x16)
30
85310031A
Rondelle (spring)
31
55241321C
.SENSOR, TIMING & RPM
32
77150078B
Vis
33
59310601B
HOLDER READ VALVE
34
77250341B
SCREW, TAPPING 3.5X12
35
78811151A
Gasket
36
81110021A
REED VALVE ASSY
37
82716031A
Entretoise
