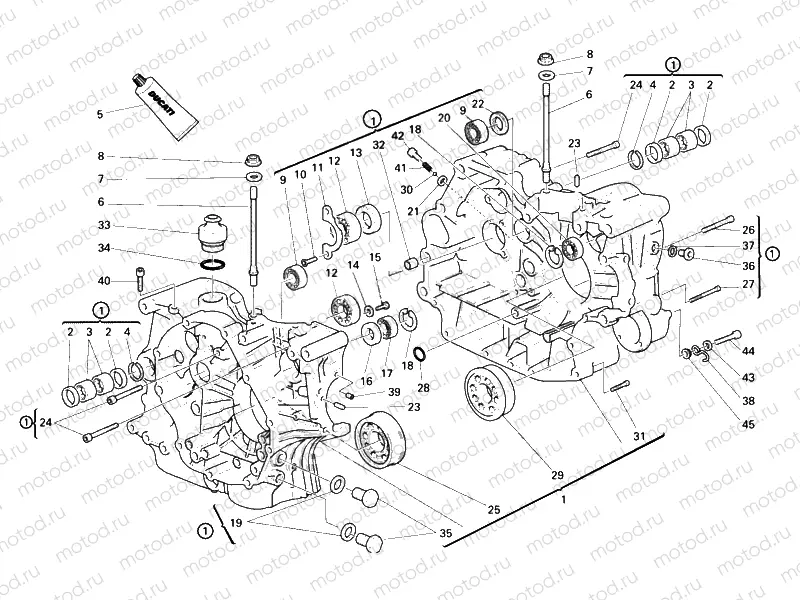

CRANKCASE » ENGINE CASE

CRANKCASE » ENGINE CASE
Например: 22521801A
1
22521801A
CASING SET 695 MR/07
2
93041271A
pc - . SEAL RING 20X26X4
3
764000004
Needle bearing
4
88440531A
pc - .SPRING RING
5
942470014
Gasket - silicone sealant
6
76610581A
Stud bolt
7
85610642A
Rondelle
8
74810501A
pc - Nut (M10)
9
70240401A
Roulement
10
720941616
.SCREW TSPEI M6X12
11
036749275
PLATE, RETAINER
12
751202567
Roulement
13
066049268
.OIL SEAL
14
71311401A
Entretoise
15
77052508B
Vis
16
93041233A
Joint
17
757941542
Roulement
18
735033380
Seeger
19
78710111A
pc - Rondelle (ALU, 14x22x2)
20
70250081A
Roulement
21
85250231A
Rondelle
22
93040932A
.SEAL, OIL 17X25X4
23
86010041A
pc - Dowel pin
24
77151368B
Vis
25
70240931A
.BEARING 35X85X23
26
77910292A
Vis
27
77150808B
Vis
28
88641321A
O-Ring
29
70240921A
.BEARING 35X78X19
30
84740061A
.BALL
31
77150728B
pc - Vis
32
71110951A
Dowel pin
33
59310031B
Oil breather valve
34
938233156
pc - O-Ring
35
78010371A
.THREADED PLUG M14X1.5
36
77910262A
.SCREW M12X1
37
85250261A
pc - Rondelle
38
82911341A
pc - RING
39
71111281A
Dowel pin
40
77911822A
Vis (spec)
41
79912111A
Spring
42
77110371A
Vis
43
85211761A
0 pc - Rondelle
44
77110471A
pc - Vis
45
71313651A
SPACER 6.2X10X3
