Главная Каталог товаров DUCATI EPC 2008 DUCATI Sportclassic GT1000 DUCATI 2008 (VIN: ZDMC103A) CRANKCASE » ENGINE CASE

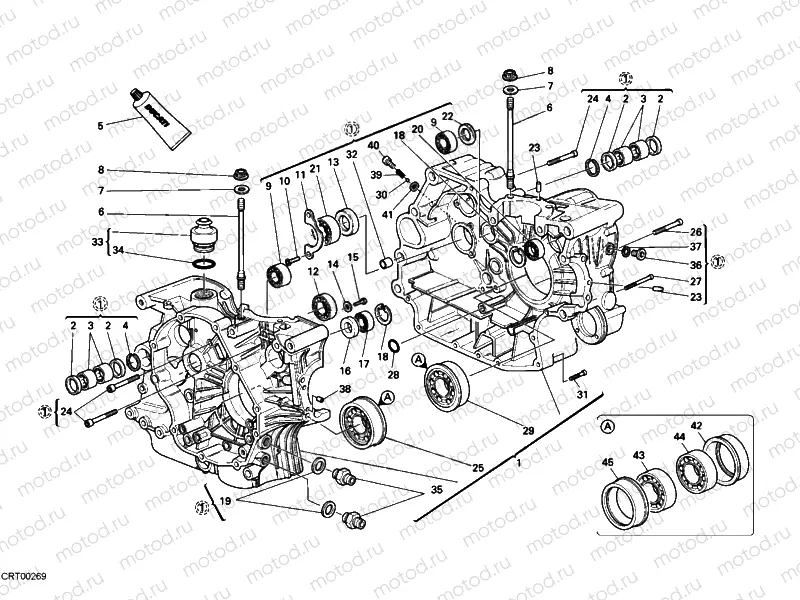

CRANKCASE » ENGINE CASE

CRANKCASE » ENGINE CASE
Например: 22522341A
1
22522341A
CASING SET SPORT-GT'09
2
93041271A
pc - . SEAL RING 20X26X4
3
764000004
Needle bearing
4
88440531A
pc - .SPRING RING
5
942470014
Gasket - silicone sealant
6
76610591A
Stud bolt
7
85610642A
Rondelle
8
74810501A
pc - Nut (M10)
9
70240331A
Roulement
10
720941616
.SCREW TSPEI M6X12
11
82610121A
PLATE, RETAINER
12
70250191A
Roulement
13
93040221A
.SEAL, OIL 35X52X7
14
71311401A
Entretoise
15
77052508B
Vis
16
93041233A
Joint
17
757941542
Roulement
18
735033380
Seeger
19
78710111A
pc - Rondelle (ALU, 14x22x2)
20
70250081A
Roulement
21
70240131A
Roulement
22
037049250
10 pc - Rondelle
23
86010041A
pc - Dowel pin
24
77151368B
Vis
25
70240931A
.BEARING 35X85X23
26
77910292A
Vis
27
77150808B
Vis
28
88641321A
O-Ring
29
70240921A
.BEARING 35X78X19
30
84740061A
.BALL
31
77150728B
pc - Vis
32
71110951A
Dowel pin
33
59310031B
Oil breather valve
34
938233156
pc - O-Ring
35
81510221A
NIPPLE, HOSEM14X1.5
36
77910262A
.SCREW M12X1
37
85250261A
pc - Rondelle
38
71111281A
Dowel pin
39
79912111A
Spring
40
77110321A
Vis
41
85212011A
.ALUMINIUM GASKET 6.2X10X1.5
42
71010701A
Entretoise
43
751913380
Roulement
44
70240201A
Roulement
45
71010691A
Entretoise
