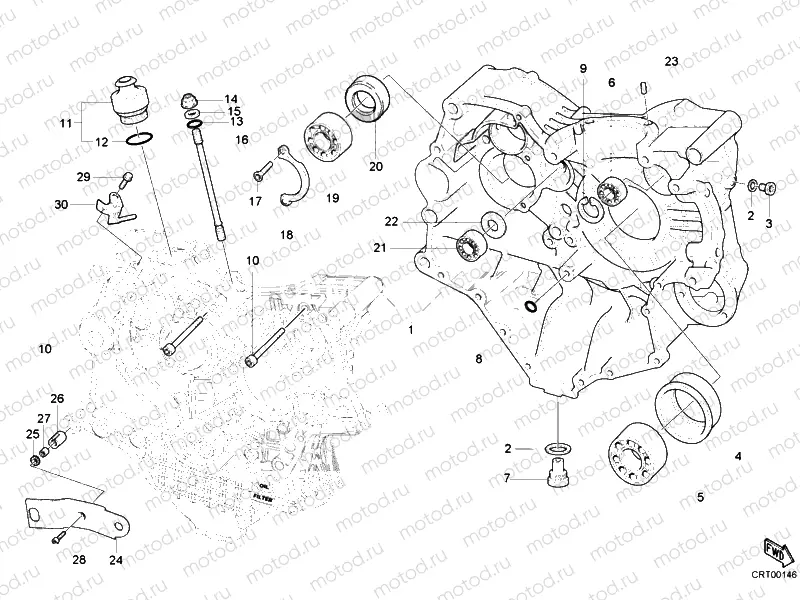

CRANKCASE » ENGINE CASE

CRANKCASE » ENGINE CASE
2
85250261A
pc - Rondelle
3
77910262A
.SCREW M12X1
4
71010701A
Entretoise
5
751913380
Roulement
6
70250081A
Roulement
7
89320062A
Vis de vidange d'huile
8
88641321A
O-Ring
9
735033380
Seeger
10
77151368B
Vis
11
59310031B
Oil breather valve
12
938233156
pc - O-Ring
13
88641181A
O-Ring
14
74810501A
pc - Nut (M10)
15
85610642A
Rondelle
16
76610451A
Stud bolt
17
720941616
.SCREW TSPEI M6X12
18
82610121A
PLATE, RETAINER
19
70240131A
Roulement
20
93040221A
.SEAL, OIL 35X52X7
21
70240331A
Roulement
22
037049250
10 pc - Rondelle
23
86010041A
pc - Dowel pin
24
83012611A
RIGHT BRACKET
25
85240081A
pc - Rondelle (Lock)
26
71010321A
SPINDLE, TAPER
27
71110721B
.BUSH, CONICAL
28
77156698B
Vis
29
77510622A
Vis (spec)
30
82914391A
HOLDER SENSOR

Узлы для Superbike 999 S DUCATI 2006
