Главная Каталог товаров HUSQVARNA EPC 2009 HUSQVARNA SMS-WRE 125 HUSQVARNA 2009 (VIN: ZKHH200A) CRANKCASE CARTER

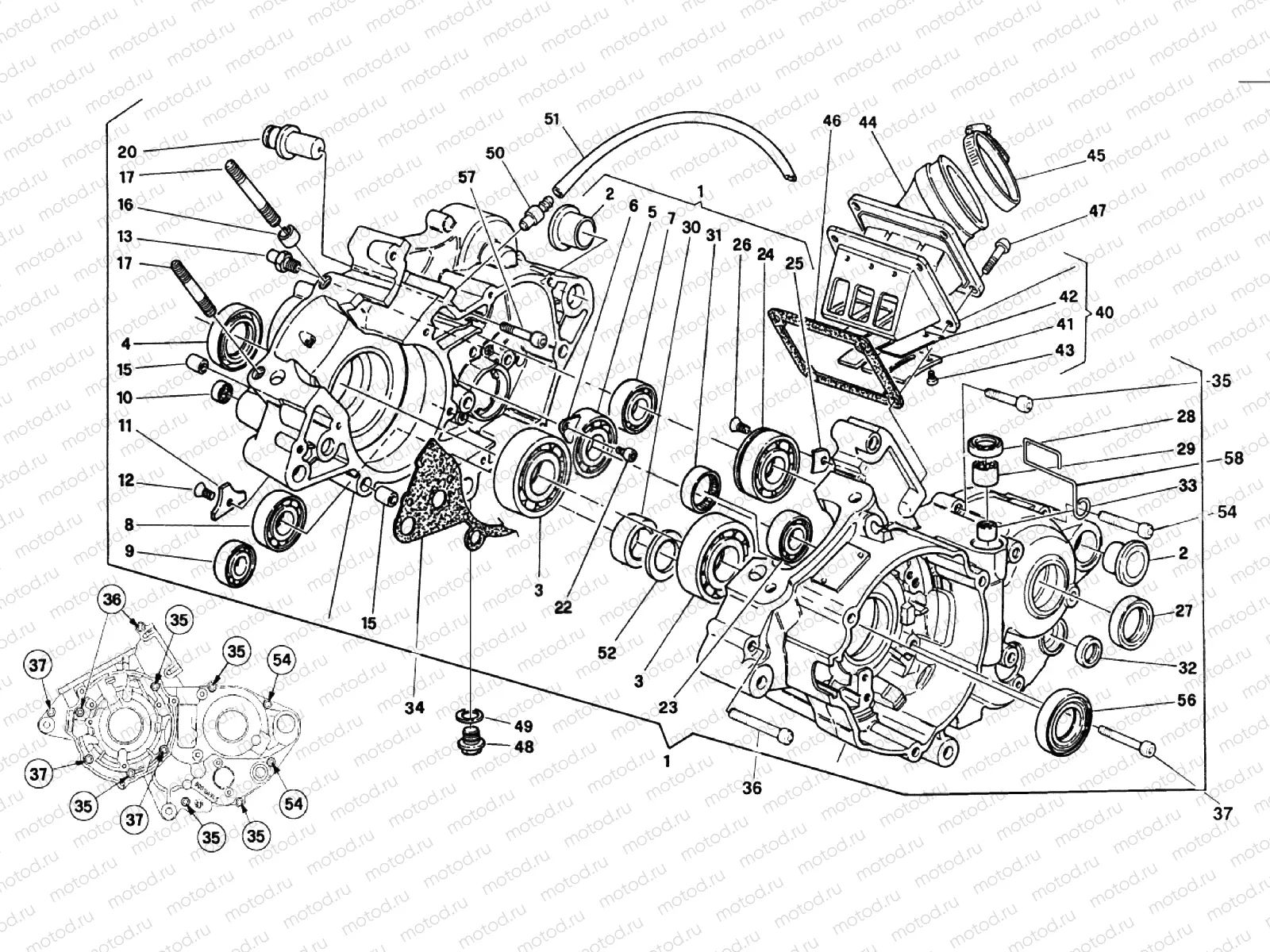

CRANKCASE CARTER

CRANKCASE CARTER

Например: 8000H0464

1

8000H0464

CRANKCASE ASSY

2

8A0071154

BUSH

3

800088828

Roulement (22x56x16mm)

4

800059977

Joint

5

800043382

Roulement

6

800053324

PLATE

7

800021939

BEARING, RADIAL BALL 6202

8

8A0053248

Roulement

9

8A0054164

Roulement

10

800047678

Needle bearing

11

800066952

PLATE

12

Z00042643

Vis

13

8A0066953

PIN

15

SPMV800007719

5 pc - PIN D10-D7

16

800099767

PIN, SPRING

17

800074836

Stud bolt

20

800077841

PIN

22

Z00067997

Vis

23

800021939

BEARING, RADIAL BALL 6202

24

800051745

BEARING, RADIAL BALL 6304 N/C3

25

800051746

PLATE

26

Z00042643

Vis

27

800036357

O-Ring

28

800048856

OIL SEAL

29

J618131912

NEEDLE ROLLER BEARING HK1312

30

800054427

ROLLER

31

800062200

ROLLER CAGE 24X30X7.5

32

800034451

Joint

33

800047678

Needle bearing

34

8000A8985

CRANK CASE GASKET

35

60ND02512

Vis

36

60ND02515

Vis

37

60ND02514

Vis

40

800076074

REED VALVE ASSY

41

800076075

PLATE

42

800076076

REED

43

800061102

Vis

44

800087813

Pipe d’admission

45

8E0099475

CLAMP NEMO 40/80 MM

46

800083043

Intake manifold Gasket

47

Z00098213

Vis

48

800075415

OIL DRAIN PLUG M14X1.25

49

62N015678

Rondelle

50

800076262

PIPE, BREATHER

51

947200006

GUMMISCHLAUCH SCHWARZ

52

8E0032069

WASHER 35X20.2X1.0

54

60ND02518

Vis

56

800092896

OIL SEAL 20X40X7

57

60ND07335

Vis

58

800078031

Damper
