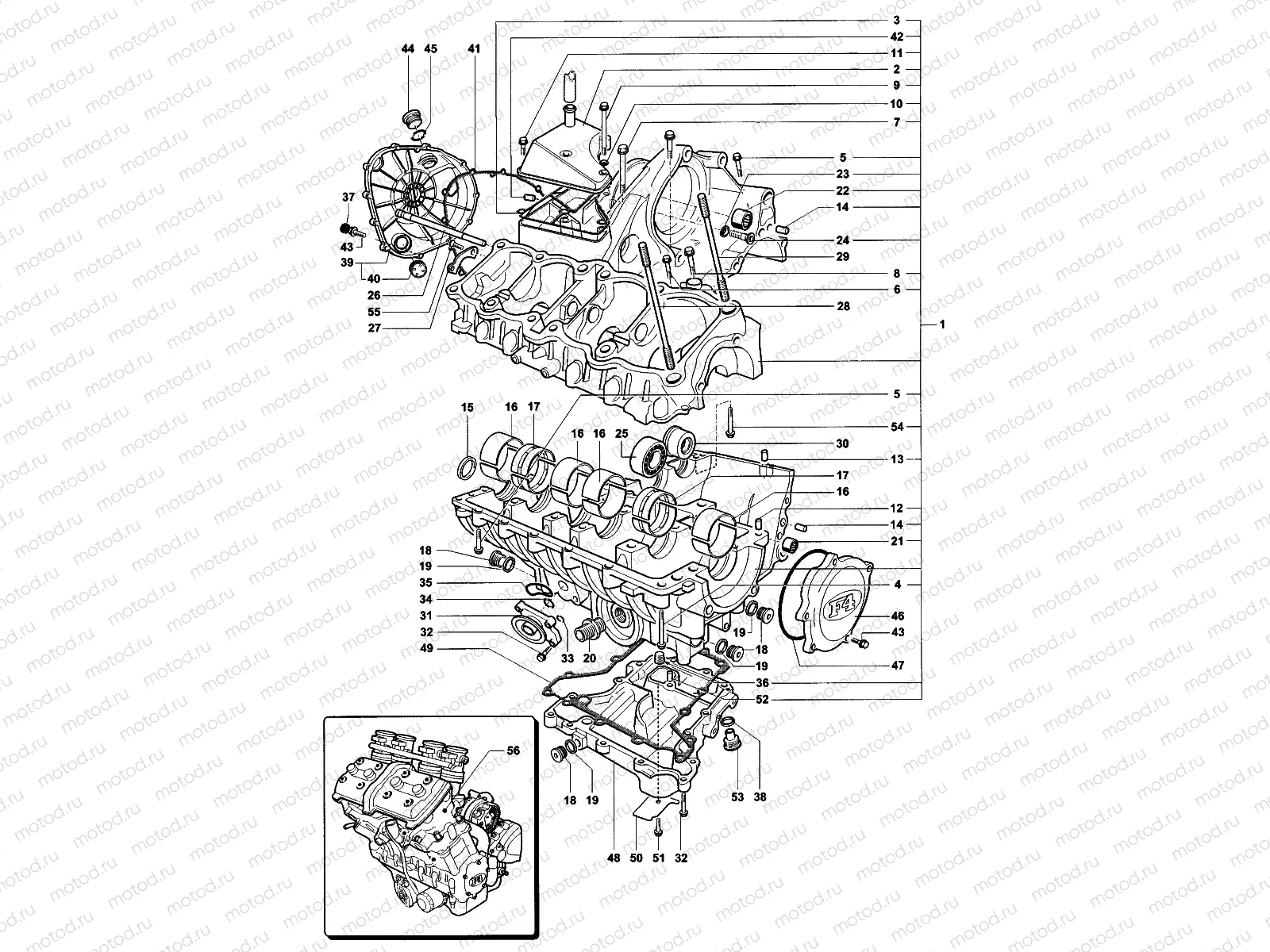

Crankcase Assembly

Crankcase Assembly
Например: SPMV8A00A0619
1
SPMV8A00A0619
CRANKASE SET
1
SPMV8000A2162
CRANKCASE SET
2
SPMV8A0092465
COVER BLOW-BY
2
SPMV800092465
Couvrir
3
SPMV800087792
Gasket
4
SPMV8D00B2684
is (M8x1.25-L95)
5
SPMV8A0067545
is
6
SPMV8B0067545
is
7
SPMV800099476
is (M8x1.25x130)
8
SPMV8A0091697
pc - Vis (M8x1.25x60)
9
SPMV8V0067545
is (M6x1x135)
10
SPMV800064988
ELF CENTERING WASHER D11-D6.1
11
800062729
Vis
12
SPMV800007719
5 pc - PIN D10-D7
13
SPMV8A0051549
pc - PIN, GUIDE, 13x8MM, CRANKCASE
14
SPMV800086119
BUSH, CRANKCASE, 27x12MM
15
SPMV800081412
COVER, LARGE, SEALING, CRANKCA
16
SPMV8B0081317
ROD BEARING, 1-3-4-6 C
16
SPMV8A0081317
ROD BEARING, 1-3-4-6 B
16
SPMV800081317
ROD BEARING, 1-3-4-6 A
17
SPMV800081316
RED CRANKSHAFT BEARING
17
SPMV8A0081316
BLUE ROD BEARING, 2-5 B
17
SPMV8B0081316
YELLOW ROD BEARING, 2-5 C
18
SPMV8000B2746
LUG, DIN 908 M16x1,5
19
SPMV800089426
10 pc - Rondelle (22x16,3x1,2mm)
20
SPMV800081409
TAND, OIL FILTER
21
SPMV800087300
Roulement
22
SPMV800081422
Roulement
23
SPMV800086737
WASHER, FIXAÇÃO DO ROLAMENTO
24
SPMV800028327
10 pc - Vis
25
SPMV800098405
Roulement
26
SPMV800089440
IPE, GEAR LUBRICATION
27
SPMV800081413
2 pc - RETAINER, BEARING
28
SPMV8000A2170
tud bolt
29
SPMV8000A2171
tud bolt
30
SPMV8000A1087
BEARING, SECONDARY AXLE, RNU41
31
SPMV800092470
UPPORT
31
80B092470
STAY, OIL COOLER
32
SPMV8H00B2681
CREW, M6x1 CH8 RP
33
SPMV8A0031106
WASHER, DE BORRACHA (ORING) 20
34
SPMV800023116
pc - O RING
35
SPMV800040872
O-Ring
36
SPMV800069769
2 pc - CONICAL PLUG EI M14X1
37
SPMV800094896
10 pc - CAP, RUBBER, SCREW, 2
38
SPMV62N015682
pc - Rondelle (28x22,3x1mm)
39
SPMV8A00B3288
CLUTCH COVER
39
800099105
Clutch cover
40
SPMV8000B7751
OIL CHECK WINDOWS
41
SPMV8000C1124
GUARNIZIONE COPERCHIO FRIZIONE
42
SPMV8C0019590
pc - PIN, CLUTCH COVER, 15x5MM
43
SPMV8E00B2681
is (M6 1x20)
44
SPMV80A0A5147
CAP, OIL
45
SPMV8A0023120
pc - RING, RUBBER, OIL COVER, 26,65
46
SPMV80B086728
COVER, PHONIC WHEEL
46
SPMV80A086728
F4 ENGINE COVER
47
SPMV800094626
GASKET, RPM GEAR COVER, F4
48
SPMV800092469
OIL SUMP
48
SPMV80B092469
OIL PAN
49
800087786
SUMP GASKET
50
SPMV800089422
GUARD
51
SPMV800062725
is
52
SPMV800007719
5 pc - PIN D10-D7
53
SPMV800096747
LUG, OIL, M22X1,5MM
54
SPMV8A0091697
pc - Vis (M8x1.25x60)
55
SPMV8E00B2695
is
56
8000A3019
56
8000A4765
