Главная Каталог товаров Polaris EPC 1997 Polaris ATV Polaris 1997 XPLORER 300 (W97CC28C) Polaris 1997 ATV CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013) | CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013)

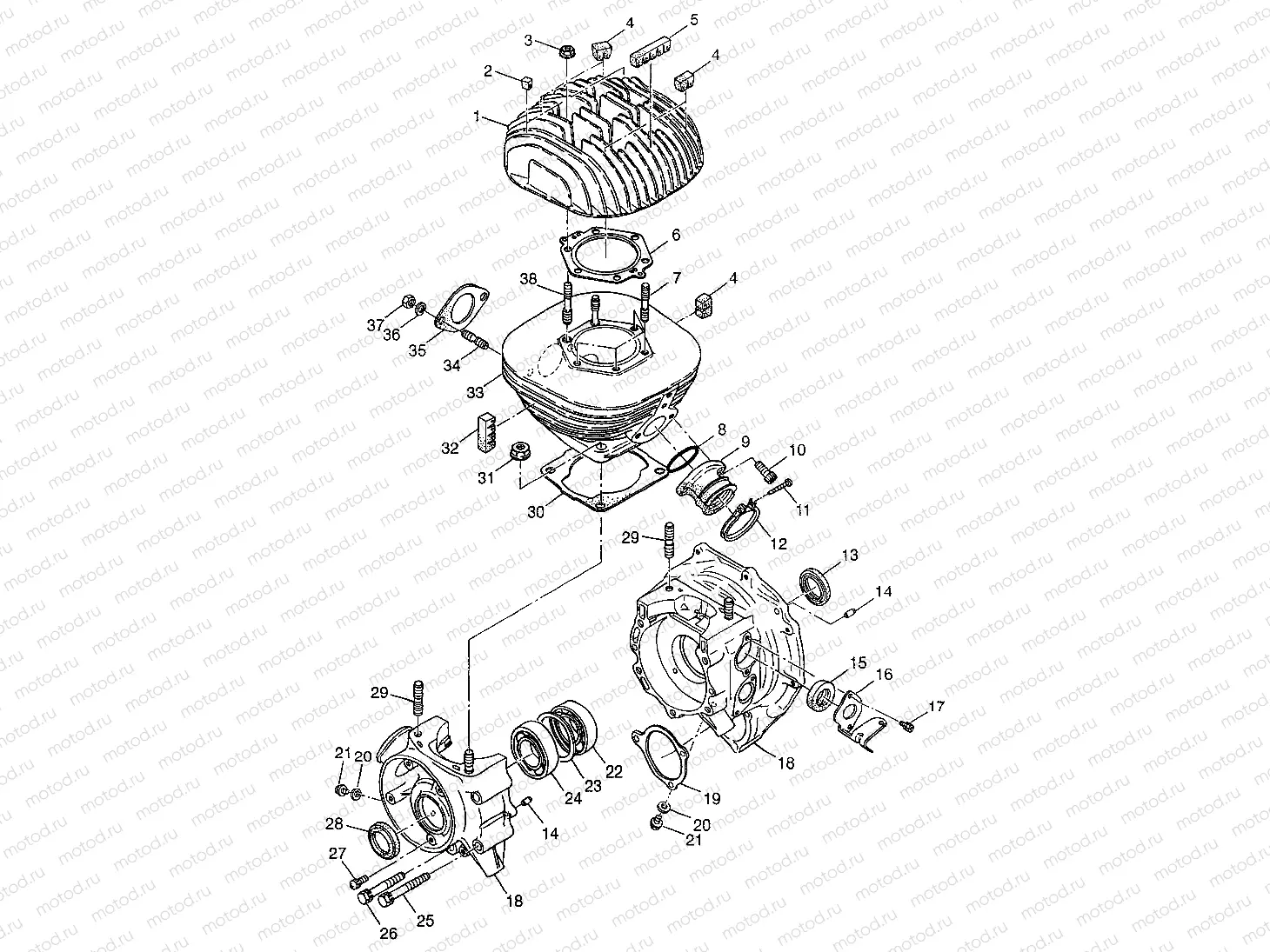

CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013) | CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013)

CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013) | CRANKCASE and CYLINDER XPLORER 300 W97CC28C (4939813981C013)

Например: 3085097

1

3085097

HEAD CYLINDER

2

3083930

FIN DAMPER #2

3

3082910

NUT-FLANGE

4

3084799

FIN DAMPER B

5

3084798

FIN DAMPER A

6

3085098

GASKET, HEAD (Head)

7

3080283

STUD

8

3084292

O-Ring

9

3085013

ADAPTER CARB.

10

3081330

BOLT SOCKET HEAD

11

3081497

Vis

12

3082257

ASM. BAND ADAPTER

13

3082162

SEAL,OIL

14

3086838

Dowel pin

15

3084801

Damper

16

3084800

BRACKET WIRE

17

3084802

BOLT&WASHER ASM.(10)

18

3084791

CRANKCASE ASM.

19

3085283

GASKET STARTER(NON-ASBESTOS)

20

7555998

WASHER FLAT

21

3083767

Vis de vidange d'huile

22

3084775

BEARING BALL

23

3084792

Entretoise

24

3084121

BEARING BALL

25

3080739

ASM. BOLT AND WASHER

26

3083615

BOLT&WASHER ASSY.

27

3081635

SCREW&WASHER ASM.

28

3084581

SEAL OIL PTO

29

3084119

STUD

30

3084795

GASKET,CYL,NA

31

3082911

NUT-FLANGE.

32

3083929

FIN DAMPER #1

33

3084793

CYLINDER

34

3085326

STUD

35

3086757

Exhaust gasket

36

3080530

Rondelle (Lock)

37

3087199

Nut

38

3084794

STUD
