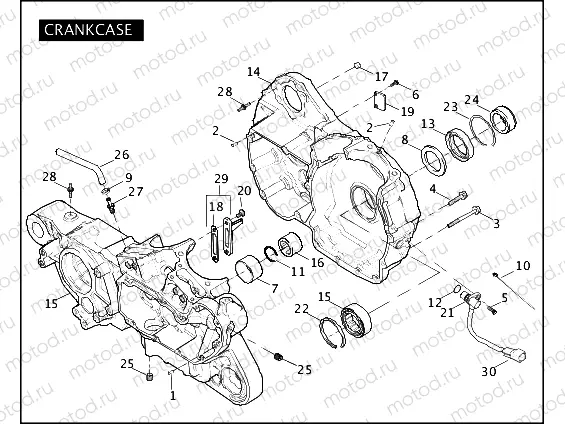

CRANKCASE

CRANKCASE

Например: 215

1

215

Dowel pin

2

358

Dowel pin

3

835

SCREW, FLANGE HEAD W/LOCKER

4

1048

SCREW FLANGE HD

5

3594

SCREW, HEX SOCKET

6

4091

Vis

7

8881

RACE BEARING, OUTER

8

8972

THRUST WASHER, FLYWHEEL

9

10080

CLAMP, DRAIN HOSE

10

10177

CABLE STRAP, PLUG IN

10

CLIP, push-in, crank position sensor-to-frame (not illustrated)

11

11177A

RETAINING RING

12

11289A

O-RING, CRANK/VEHICLE SPEED SE

13

12068

OIL SEAL

14

24466-04

CRANKCASE SET, BLACK

14

24470-04

CRANKCASE SET, SILVER

15

24605-07

ROLLER BEARING

16

24647-87

BEARING, GEARSHAFT - BLUE

16

24650-87

BEARING, GEARSHAFT - RED

16

24659-87

BEARING, GEARSHAFT - WHITE/GRA

16

24660-87

BEARING, GEARSHAFT - GREEN

17

24754-75A

DOWEL PIN,SPLIT,HOLLOW

18

26638-00Y

GASKET, OIL JET

19

29950-91

COVER STATOR WIRE

20

32617-00Y

SCREW, TIMING PLATE

21

32804-04B

SENSOR, CRANKSHAFT POSITION

22

35114-02

RETAINING RING

23

35118-03

RETAINING RING

24

40254-02

SPACER, SPROCKET SHAFT

25

45830-48

PLUG PIPE

26

63508-04

VENT HOSE

27

63533-41A

FITTING,STRAIGHT,W/SEALANT

28

65088-04

STUD, GROUND

29

62700-014

PISTON OIL JET ASSY W/O SCREWS

30

74194-98

TERMINAL, PIN DTM#24-24
