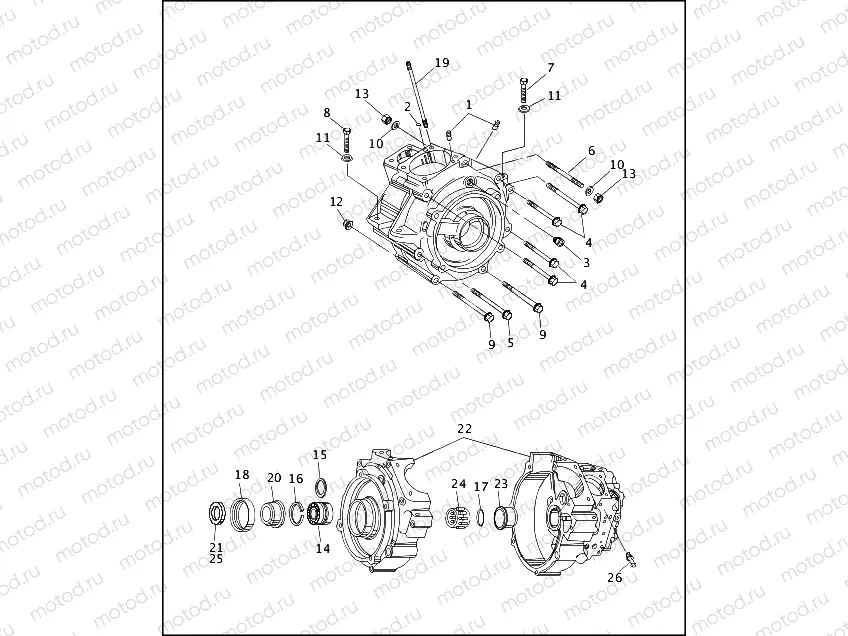

CRANKCASE - 1996

CRANKCASE - 1996

Например: 358

1

358

Dowel pin

2

653

PLUG, EXPANSION

3

PLUG, timing hole

4

SCREW

5

3504A

SCREW, FLANGE HEAD, 5-1/2 LG

6

3506

STUD

7

3528

SCREW, HEX CAP

8

3554

SCREW, HEX CAP

9

3613

SCREW, FLANGE HEAD

10

6016

Rondelle

11

6019

Rondelle

12

7593

10 pc - Nut

13

7883

Nut

14

9028

ROLLER BEARING

15

9110

SHIM, ROLLER BEARING

15

9028

ROLLER BEARING

15

9121

SHIM, ROLLER BEARING

15

9122

SHIM, ROLLER BEARING

15

9123

SHIM, ROLLER BEARING

15

9028

ROLLER BEARING

15

9028

ROLLER BEARING

15

9127

SHIM, ROLLER BEARING

15

9028

ROLLER BEARING

15

9129

SHIM, ROLLER BEARING

15

9130

SHIM, ROLLER BEARING

15

9131

SHIM, ROLLER BEARING

15

9132

SHIM, ROLLER BEARING

15

9134

SHIM, ROLLER BEARING

16

RETAINING RING, bearing, left

17

11177A

RETAINING RING

18

12026B

OIL SEAL

19

16837-85C

STUD, CYLINDER

20

24002-70

Entretoise

21

SPACER, sprocket shaft, 0.060 inch thick

21

SPACER, sprocket shaft, 0.090 inch thick

21

SPACER, sprocket shaft, 0.120 inch thick

21

SPACER, sprocket shaft, 0.150 inch thick

21

SPACER, sprocket shaft, 0.180 inch thick

21

SPACER, sprocket shaft, 0.210 inch thick

22

SET OF CRANKCASES (black)

22

24572-93A

CRANKCASE SET, SILVER, EVO

22

BUSHING, right crankcase - 0.002 inch O.S.O.D.

22

BUSHING, right crankcase - 0.005 inch O.S.O.D.

24

24626-87A

BEARING, GEARSIDE, FLYWHEEL -

24

24628-87A

BEARING, GEARSIDE, FLYWHEEL -

24

24641-87A

BEARING, GEARSIDE, FLYWHEEL -

24

24643-87A

BEARING, GEARSIDE, FLYWHEEL -

25

SPACER, sprocket shaft, 0.010 inch thick

25

35851-84

SPACER, SPROCKET SHAFT, .020

25

SPACER, sprocket shaft, 0.030 inch thick

26

63533-41A

FITTING,STRAIGHT,W/SEALANT
