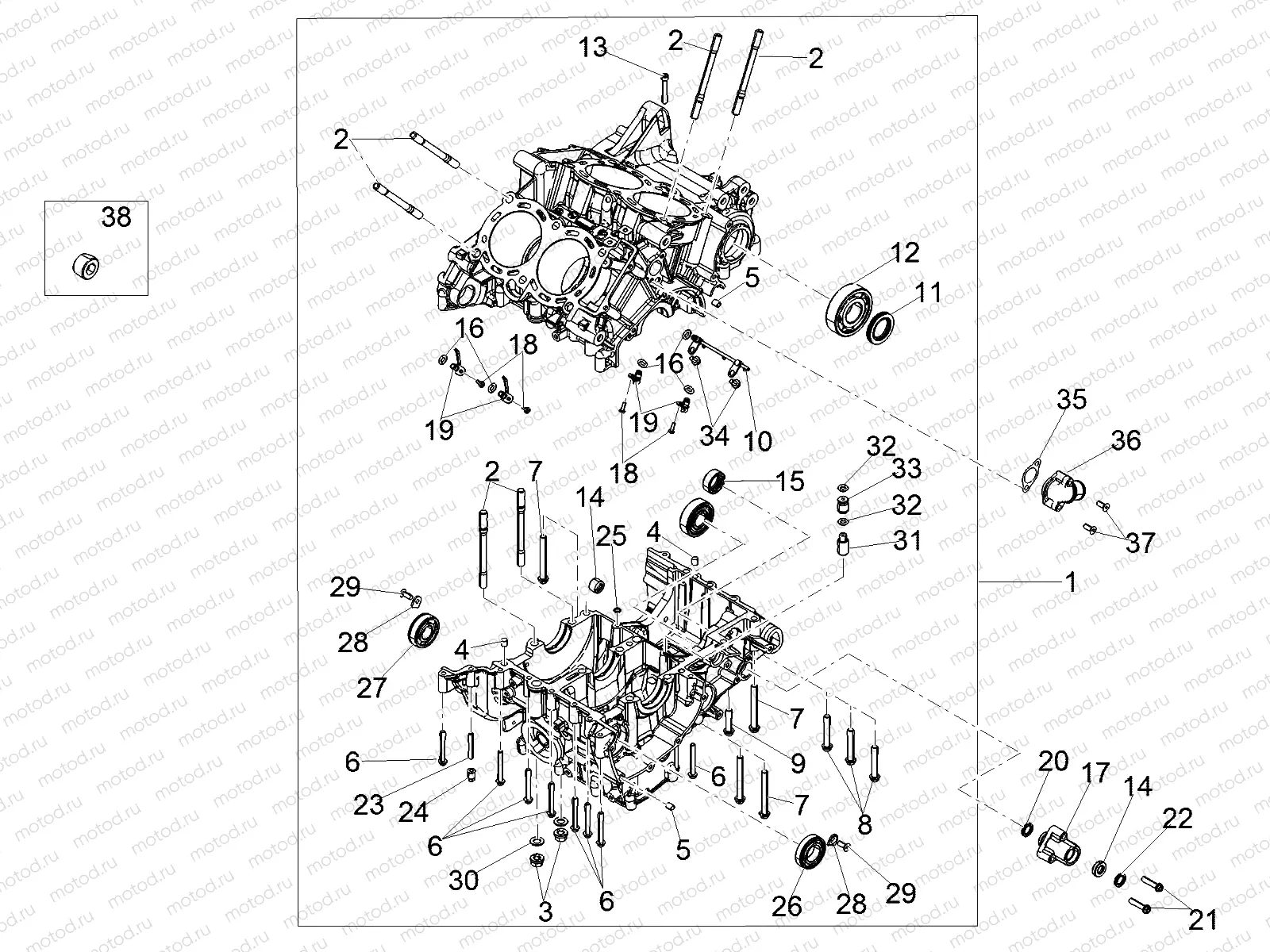

Crank-case I

Crank-case I
Например: 2A0007875
1
2A0007875
Carter, pair
2
857087
Stud bolt
3
897434
Flanged nut M10x1
4
857427
Pin M8x12
5
411209
Pin
6
AP9100433
Screw w/ flange M6x50
7
AP8152294
0 pc - Vis
8
AP8152292
0 pc - Vis
9
AP8152289
Vis
10
2A000569
Lubrication pipe
11
857128
Joint (30x47x7)
12
898633
Roulement
13
AP8152003
4 pc - Vis
14
B045224
Needle bearing
15
857249
Needle bearing
16
GU90706009
2 pc - O-Ring (6x1)
17
857090
Maintenance
18
B046202
Screw TB 4X12 TORX
19
2A000885
Piston cooling jet
20
857109
2 pc - O-Ring (17,12x2,62)
21
AP8150285
pc - Vis
22
857127
Gasket ring 12x22
23
1A011263
Special stud bolt
24
857496
Nut (Special)
25
857144
O-Ring
26
897436
Roulement
27
897435
Roulement
28
AP9150145
Check bearing plate
29
AP8152166
screw M6x16
30
857208
Rondelle
31
2A000363
Lubricating jet
32
AP8120965
pc - O-Ring
33
B045126
Relief Valve
34
1A003114
Vis
35
1A006321
Gasket
36
857126
Joint
37
874550
Vis
38
974060
Plug M16X1,5
