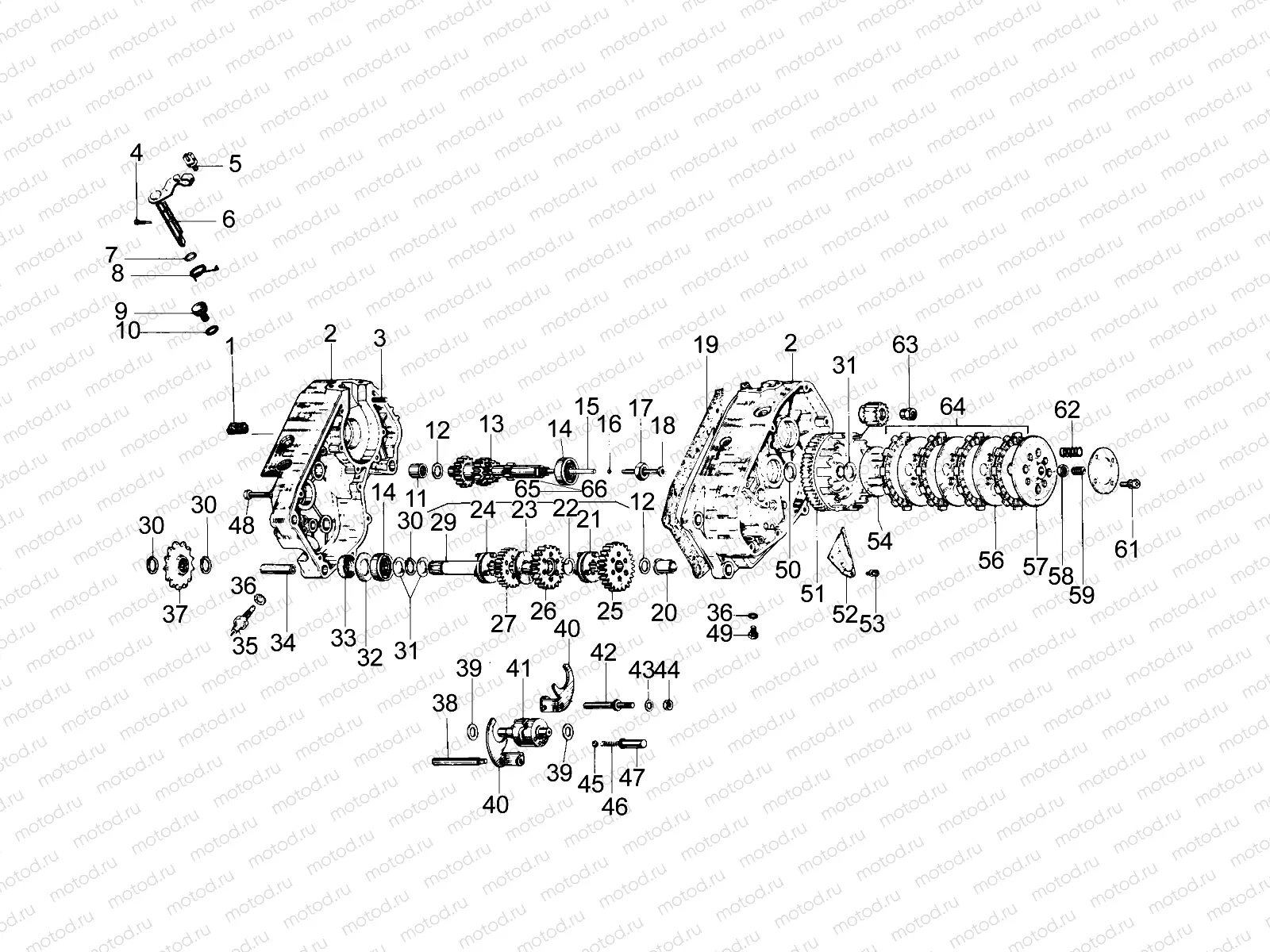

Crank-case

Crank-case
1
AP8501853
Rubber spacer
2
AP8509927
Crankcase assy
3
AP8502566
Vis
4
AP8502537
Vis (spec)
5
AP8502999
Gear cpl.
6
AP8509194
Levier embrayage
7
AP8502655
O-ring D7,65x1,78
8
AP8502358
Spring
9
AP8501876
Oil filler plug
10
AP8502713
lug gasket
11
AP8502608
Needle bearing
12
AP8222337
Blue steel washer D13,2x20
13
AP8509900
rimary gear shaft
14
AP8502624
Roulement
15
AP8502794
ush rod d.5x79
16
AP8502652
Ball
17
AP8502435
Nut M11X1 (H=7,5)
18
AP8502836
Clutch push rod D13
19
AP8502687
Gasket
20
AP8502613
Bush
21
AP8502253
Sliding coupling 1-2 spd.
22
AP8501471
Seeger
23
AP8502500
Blue steel washer D18x30
24
AP8502257
Sliding coupling 3-4 spd.
25
AP8502161
st wheel gear
26
AP8509880
2nd wheel gear
27
AP8509881
3rd wheel gear
29
AP8509879
Driven shaft
30
AP8501469
Seeger
31
AP8502494
Washer d.15
32
AP8502522
Washer d.22
33
AP8509180
Oil seal D12x22x7
34
AP8502810
Dowel pin
35
AP8507439
Neutral indicator switch
36
AP8502759
Rondelle
37
AP8207031
inion Z=11
37
AP8207034
inion Z=14
37
AP8207035
inion
37
AP8207033
inion Z=13
37
AP8207030
inion Z=10
37
AP8207032
inion Z=12
38
AP8502823
in
39
AP8206269
Rondelle
40
AP8501969
Fork
41
AP8509883
Shift cam
42
AP8502819
in
43
AP8502473
Rondelle
44
AP8502414
Nut
45
AP8502653
Ball
46
AP8502343
Spring
47
AP8502806
in retainer
48
AP8502570
Screw M6x50
49
AP8502586
Vis
50
AP8508556
Copper washer
51
AP8508572
Clutch housing, complete Z=16/61
52
AP8501923
late
53
AP8502559
Vis
54
AP8508543
Springholder plate
56
AP8508544
Metallic clutch disc
57
AP8508545
Springholder plate
58
AP8502432
Nut
59
AP8502533
pc - Adjuster screw M14x1,25
61
AP8508554
Vis
62
AP8502328
Clutch spring 4 disk
63
AP8502419
Nut M9x1
64
AP8222187
Clutch disks
65
AP8509901
Secondary shaft cpl.
66
AP8509882
Gear box assy 3 speeds

Узлы для TUAREG RALLY 50 APRILIA TUAREG
