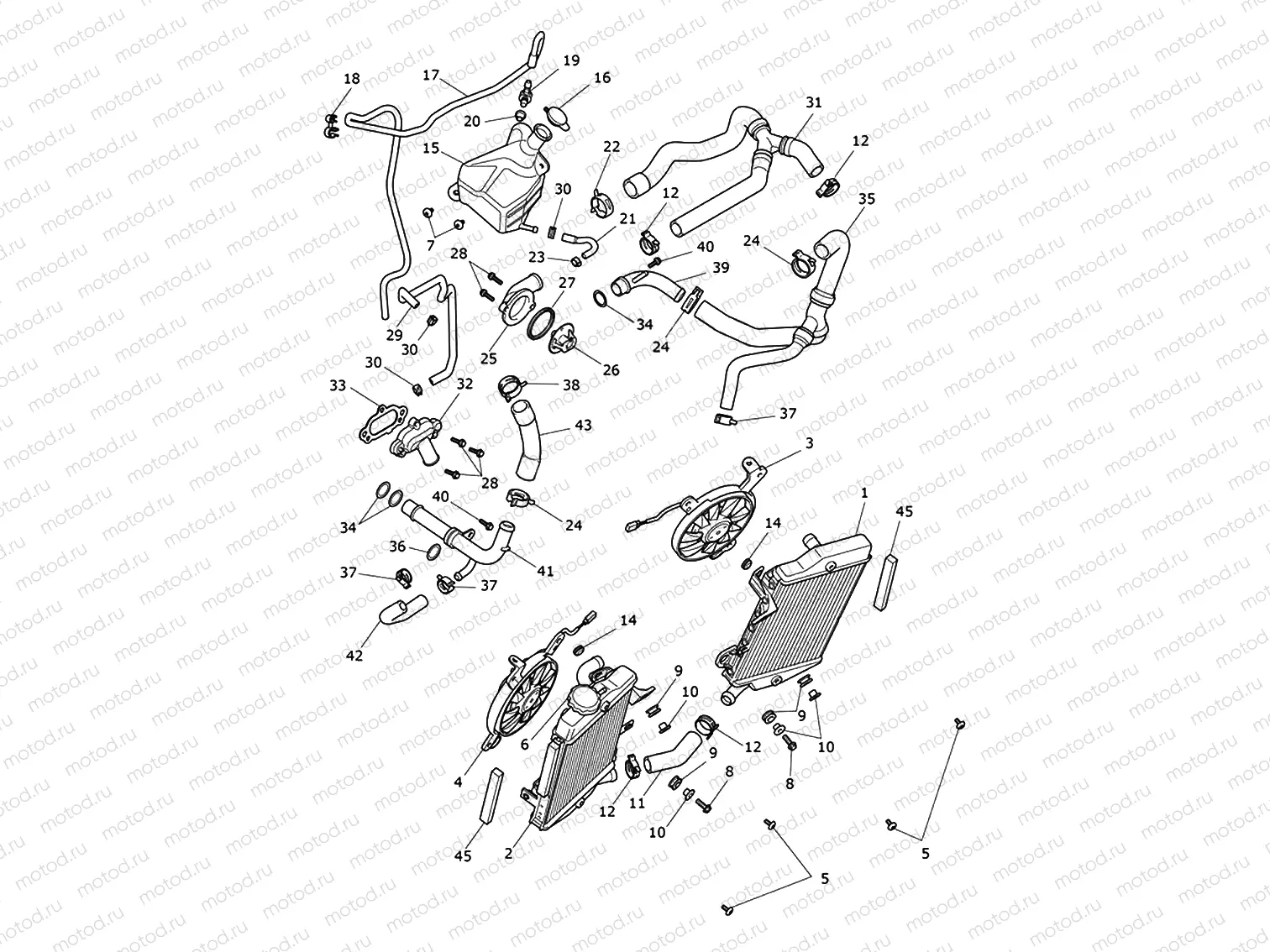

Cooling System

Cooling System

Например: T2104201

1

T2104201

Radiator Assy, LHS

1 шт. в узле

2

T2104211

Radiator Assy, RHS

1 шт. в узле

3

T2104202

Fan & Guard Assy, LHS

1 шт. в узле

4

T2104212

Fan & Guard Assy, RHS

1 шт. в узле

5

T3330958

Screw, But/Hd, M5 x 10, Blk, Enc

4 шт. в узле

6

T2101623

Cap Assy

1 шт. в узле

7

T3330960

Screw, But/Hd, M5 x 12, Slv Enc

2 шт. в узле

8

T3202304

Bolt, RHHF, M6 x 20, Slv

2 шт. в узле

9

T3020230

Grommet, 15 x 5 x 10

4 шт. в узле

10

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

4 шт. в узле

11

T2104205

Hose, Radiator Link, Lower

1 шт. в узле

12

T3706213

Clamp, Constant Tension, Dia 2

4 шт. в узле

14

T3450035

Grommet, Dia 8, Dia 12.5, 3

2 шт. в узле

15

T2104216

Expansion Tank

1 шт. в узле

16

T2101015

Cap, Expansion Tank

1 шт. в узле

17

T2104217

Hose, Expansion Tank, Overflow

1 шт. в узле

18

T3700190

Clip, Rear Brake Hose

1 шт. в узле

19

T2100433

Elbow, Overflow, Quickfit

1 шт. в узле

20

T3450141

Grommet, TPE, Quickfit

1 шт. в узле

21

T2104218

Hose, Radiator, Overflow

1 шт. в узле

22

T3706216

Clamp, Constant Tension, Dia 3

1 шт. в узле

23

T3700077

Clip, 10.5 Rer Oetiker

1 шт. в узле

24

T3706214

Clamp, Constant Tension, Dia 2

3 шт. в узле

25

T2100206

Cover, Water Outlet

1 шт. в узле

26

T2100676

hermostat

1 шт. в узле

27

T2100201

Seal, Thermostat

1 шт. в узле

28

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

5 шт. в узле

29

T2100408

Hose, Bypass, Water

1 шт. в узле

30

T3700440

Clip, Hose, 11-12.5mm

3 шт. в узле

31

T2104207

Hose, Radiator Inlet, Y-Piece

1 шт. в узле

32

T2100224

Cover, Water Inlet

1 шт. в узле

33

T2100205

Gasket, Water Inlet

1 шт. в узле

34

T3600124

O-Ring (21,5x3)

3 шт. в узле

35

T2104206

Hose, Radiator, Outlet, T-Piece

1 шт. в узле

36

T3600190

O Ring, 24 x 2.5

3 шт. в узле

37

T3706211

Clamp, Constant Tension, Dia 1

3 шт. в узле

38

T3706215

Clamp, Constant Tension, Dia 3

1 шт. в узле

39

T2107012

Pipe, Water Pump Inlet

1 шт. в узле

40

T3205064

Vis

2 шт. в узле

41

T2107014

Pipe, Water, Pump Outlet

1 шт. в узле

42

T2107200

Hose, Water Inlet, Heat Ex

1 шт. в узле

43

T2105201

Hose, Water Pump, Outlet

1 шт. в узле

45

T2101086

Foam Strip, Radiator

2 шт. в узле

46

T4007777

Coolant, OAT, Premix, D2053,12 x 1L

1 шт. в узле
