Главная Каталог товаров Triumph EPC 2019 Triumph STREET TRIPLE RS 800262 > Triumph 2019 (VIN: SMTHDA46) Cooling System

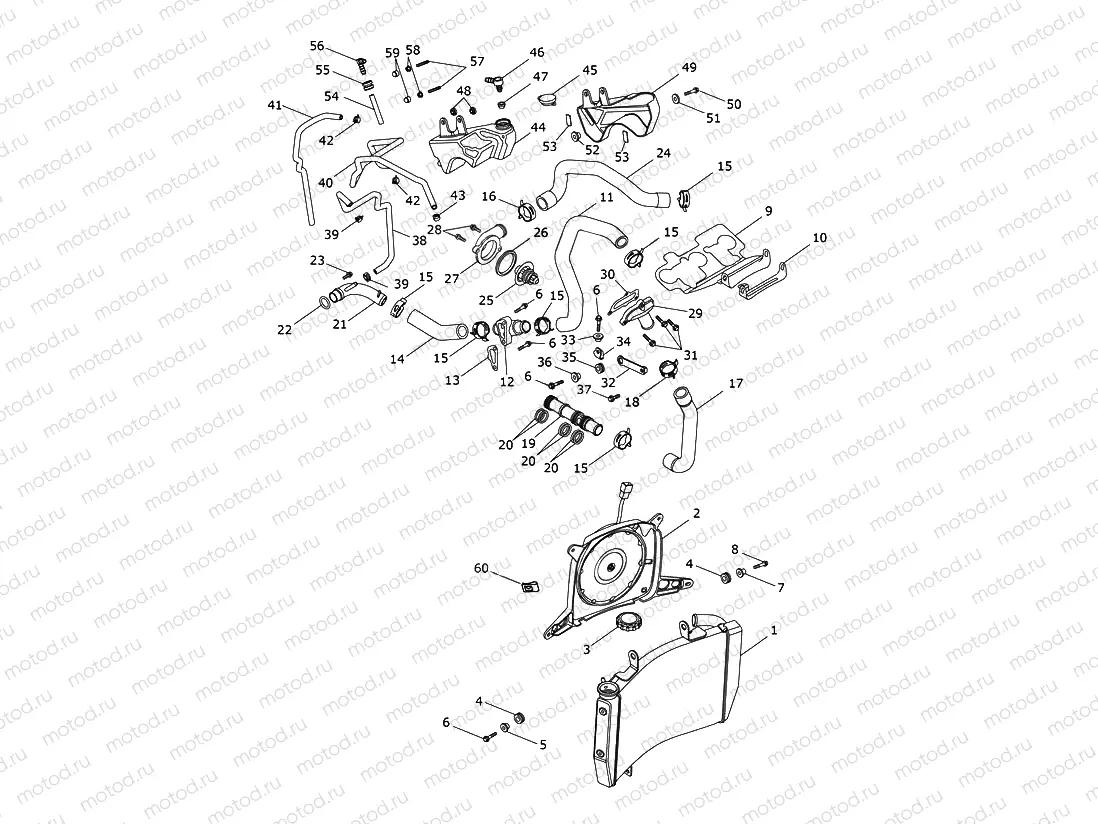

Cooling System

Cooling System

Например: T2103251

1

T2103251

Radiator Assembly

1

T2104444

Kit, Radiator

2

T2101744

Fan and Cowl Assembly

3

T2101623

Cap Assy

4

T3020153

Grommet, 13 x 3 x 10

2 шт. в узле

4

T3020188

Grommet, 16.5 x 3 x 9.5

2 шт. в узле

5

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

6

T3205070

Bolt, HHF, Lghtd, M6 x 30, Slv

5 шт. в узле

7

T3010701

Flanged Sleeve, 6.4 x 10 x 14.

8

T3205082

Bolt, HHF, Lghtd, M6 x 35, Enc

9

T2106008

Air Deflector

10

T2106003

Retainer

11

T2109001

Hose, Radiator to T-Piece

12

T2104100

Piece, Water, Black

13

T2100435

Gasket, T-Piece, Water

14

T2109091

Hose, T-Piece to Pump

15

T3706214

Clamp, Constant Tension, Dia 2

6 шт. в узле

16

T3706216

Clamp, Constant Tension, Dia 3

17

T2100425

Hose, Formed, Water Pump Outle

18

T3706215

Clamp, Constant Tension, Dia 3

19

T2100426

Pipe, Water, Pump Outlet

20

T3600290

O Ring, 23.7 x 2.0

6 шт. в узле

21

T2107012

Pipe, Water Pump Inlet

22

T3600124

O-Ring (21,5x3)

23

T3205064

Vis

24

T2101992

Hose, Water, Head to Radiator

25

T2100675

hermostat

26

T2100201

Seal, Thermostat

27

T2100206

Cover, Water Outlet

28

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

3 шт. в узле

29

T2104020

Cover, Water Inlet

30

T2102800

Gasket, Water Inlet

31

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

3 шт. в узле

32

T2100875

Bracket, Radiator, Lower

33

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

34

T2100492

Bracket, Radiator, Lower, Rear

35

T3020033

Damper

36

T3010046

Flgd Sleeve, M6 x 9.6 x 10.5

37

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

38

T2100408

Hose, Bypass, Water

39

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

40

T2109035

Hose, Expansion Tank to Radiator

41

T2109040

Hose, Expansion Tank Overflow

42

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

43

T3700077

Clip, 10.5 Rer Oetiker

44

T2100911

Expansion Tank

45

T2101015

Cap, Expansion Tank

46

T2100433

Elbow, Overflow, Quickfit

47

T3450141

Grommet, TPE, Quickfit

48

T3010145

Flanged Sleeve, M6 x 9 x 5.1

2 шт. в узле

49

T2100912

Cover, Expansion Tank

50

T3331234

Screw, Torx, P/H, M6 x 20, Slv

51

T3552004

Washer, M6 x 14 x 2.0

52

T3010059

Flanged Sleeve, M6 x 9 x 3.2

53

T3660171

Rubber Pad, 30x10x15

2 шт. в узле

54

T2102490

Hose, Expansion Tank, 65mm

55

T3021200

Grommet, Dia 14x4, Panel

56

T2100405

Elbow, ID 8.0 Tube

57

T3100020

Stud, M6

2 шт. в узле

58

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

59

T3450124

Cap

2 шт. в узле

60

T3350129

Nut, Captive, M5

61

A9610046

Coolant, Hybrid Oat, 12 x 1L
