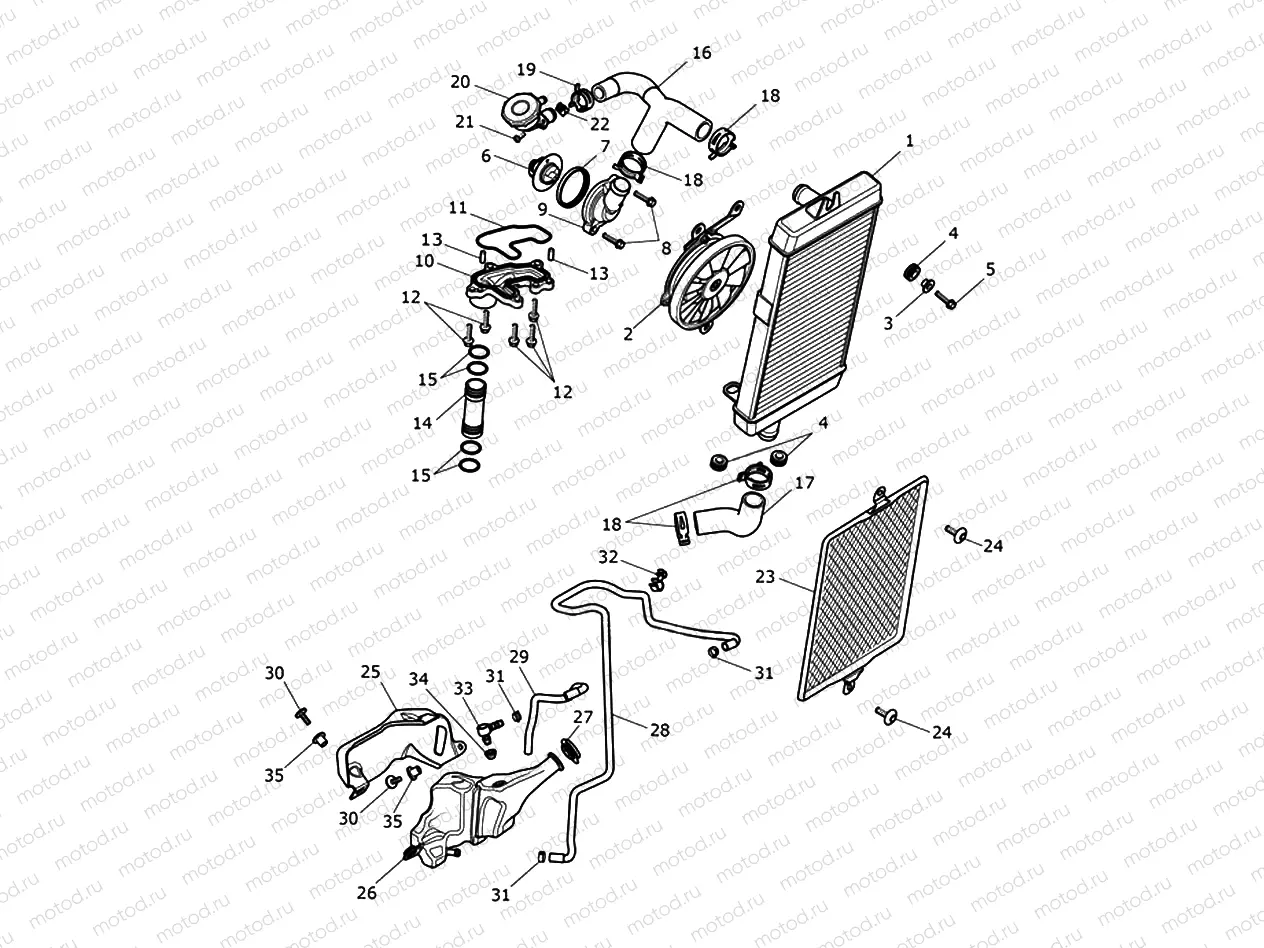

Cooling System

Cooling System

Например: T2101333

1

T2101333

Radiator

2

T2101666

Fan, Radiator

3

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

4 шт. в узле

4

T3020153

Grommet, 13 x 3 x 10

3 шт. в узле

5

T3205067

Vis

6

T2100676

hermostat

7

T2100201

Seal, Thermostat

8

T3205083

Bolt, HHF, LGHTD, M6 x 28, Slv

2 шт. в узле

9

T2101255

Cover, Water Outlet

10

T2101266

Coolant Manifold

11

T2101277

Sealing Ring, Coolant Manifold

12

T3200134

Bolt, RHHF, M6x25, Encaps

5 шт. в узле

13

T3000005

Dowel, Dia 6.0 x 16

2 шт. в узле

14

T2101233

Pipe, Coolant Feed, Internal

15

T3600124

O-Ring (21,5x3)

4 шт. в узле

16

T2101180

Piece, Coolant, Assy

17

T2101477

Hose, Coolant, Rad to Engine

18

T3706215

Clamp, Constant Tension, Dia 3

4 шт. в узле

19

T3706212

Clamp, Constant Tension, Dia 2

20

T2101499

Filler Neck, Coolant

21

T3330627

Screw, Pan/HD, TPT, Tx, M5 x 1

22

T3350129

Nut, Captive, M5

23

T2109602

Grill, Radiator

24

T3330945

Screw, But/Hd, M5 x 16, Blk

2 шт. в узле

25

T2101305

Kit, Expansion Tank Cover

25

T2101185

Expansion Tank Cover

26

T2101145

Expansion Tank, Coolant

26

T2101144

Expansion Tank, Coolant

27

T2101015

Cap, Expansion Tank

28

T2100773

Hose, Rad to Expansion Tank

29

T2100687

Hose, Expansion Tank Overflow

30

T3330727

Vis (M6x20)

2 шт. в узле

31

T3700440

Clip, Hose, 11-12.5mm

3 шт. в узле

32

T3700190

Clip, Rear Brake Hose

33

T2100433

Elbow, Overflow, Quickfit

34

T3450141

Grommet, TPE, Quickfit

35

T3010707

Sleeve, Flanged, 6.4 x 10 x 6.

2 шт. в узле

36

A9610046

Coolant, Hybrid Oat, 12 x 1L
