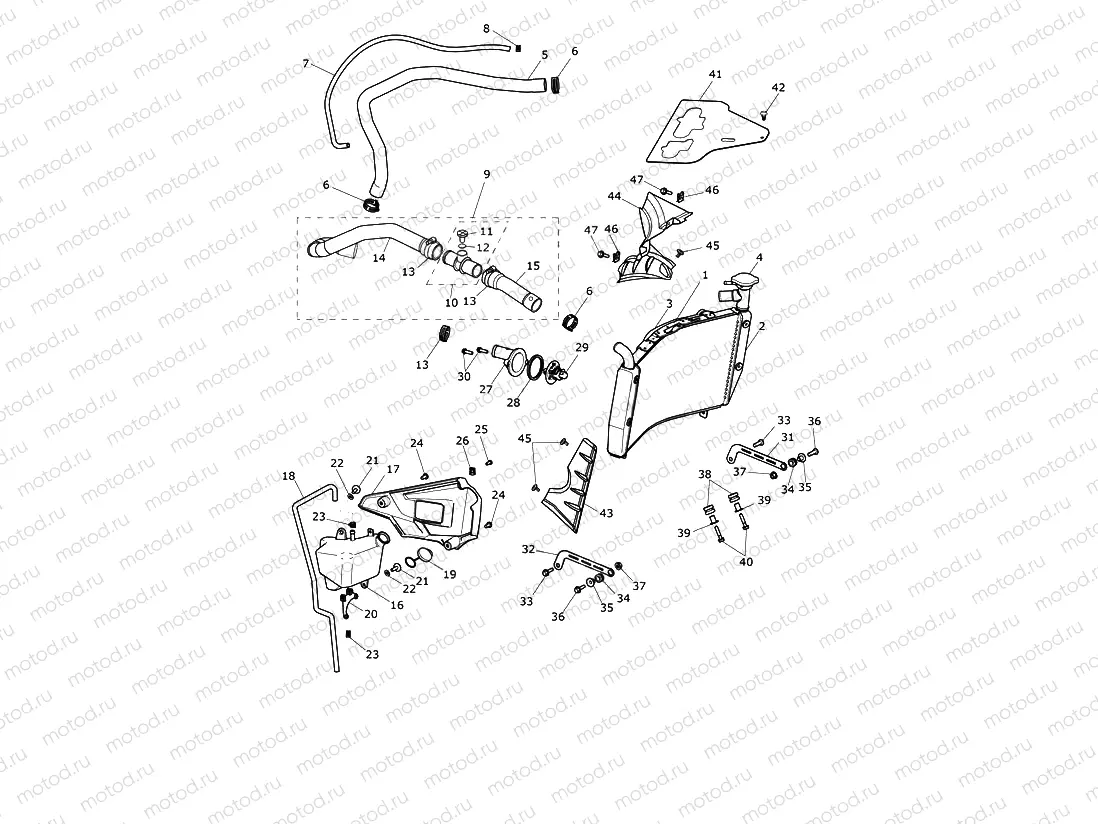

Cooling System

Cooling System

Например: T2100855

1

T2100855

Cowl, Fan

2

T2100854

Radiator, Curved

3

T2100856

Fan, Cooling

4

T2100081

Cap Assy, Radiator

5

T2100544

Durite radiateur (Radiator to Pump)

6

T3706214

Clamp, Constant Tension, Dia 2

3 шт. в узле

7

T2100636

Pipe, Radiator to Expansion Ta

8

T3700077

Clip, 10.5 Rer Oetiker

9

T2100910

Hose, Thermostat to Radiator

10

T2100905

Spigot, Coolant Bleed

11

T2100908

Bleed Screw, M10 x 15

12

T2100909

O Ring, 11.20 x 1.78 Dia

13

T3706216

Clamp, Constant Tension, Dia 3

3 шт. в узле

15

T2100907

Hose, Bleed Spigot to Rad

16

T2108355

Expansion Tank

17

T2100461

Cover, Expansion Tank

18

T2100637

Pipe, Expansion Tank Overflow

19

T2101015

Cap, Expansion Tank

20

T2100462

Bracket, Expansion Tank

21

T3330334

Screw, Tx, Pan/HD, M6 x 16, Sl

2 шт. в узле

22

T3555026

Washer, 6.4 x 18 x 1.6

2 шт. в узле

23

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

24

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

25

T3330649

Screw, Pan/Hd, Tx, M5 x 12, Sl

26

T3350161

Nut, Captive, M5

2 шт. в узле

27

T2100479

Cover, Water Outlet

2 шт. в узле

28

T2100201

Seal, Thermostat

29

T2100676

hermostat

30

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

2 шт. в узле

31

T2100914

Bracket, LH, Radiator

32

T2100915

Bracket, RH, Radiator

33

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

2 шт. в узле

34

T3020030

Grommet, Rubber

2 шт. в узле

35

T3010052

Flanged Sleeve, M6 x 12 x 10.7

2 шт. в узле

36

T3205067

Vis

2 шт. в узле

37

T3350305

Locknut, Flgd, M6 x 1.0, Slv

2 шт. в узле

38

T3021200

Grommet, Dia 14x4, Panel

2 шт. в узле

39

T3010701

Flanged Sleeve, 6.4 x 10 x 14.

2 шт. в узле

40

T3200148

Bolt, M6 x 30, Silver

2 шт. в узле

41

T2100980

Sheet, Heat Shield

42

T3450299

Firtree, M6

43

T2100966

Radiator Shroud, RH

44

T2100965

Radiator Shroud, LH

45

T3331436

Vis (4x1)

3 шт. в узле

46

T3350161

Nut, Captive, M5

2 шт. в узле

47

T3330891

Bolt, RHHF, M5 x 0.8 x 12, S50

2 шт. в узле

48

A9610046

Coolant, Hybrid Oat, 12 x 1L
