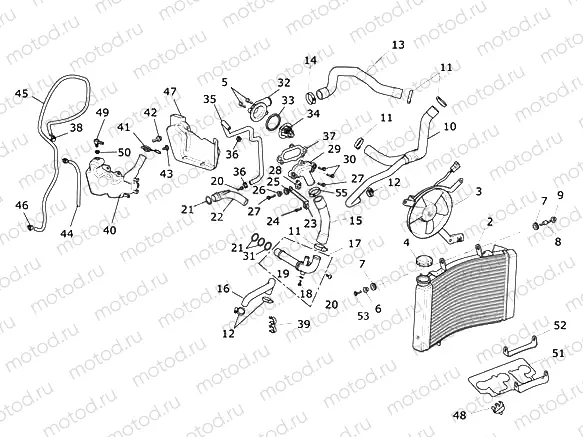

Cooling System

Cooling System

Например: T2100840

2

T2100840

Radiator

2

T2101621

Radiator Assy

3

T2101622

Fan Assy

3

T2100274

Fan, Cooling, 170 Dia

4

T2101623

Cap Assy

4

T2100164

Cap Assy, Radiator

5

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

2 шт. в узле

6

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

7

T3020153

Grommet, 13 x 3 x 10

2 шт. в узле

8

T2100513

Stud, M6, Bar, Radiator

8

T2100498

Stud, M6, Bar, Radiator

9

T3350305

Locknut, Flgd, M6 x 1.0, Slv

10

T2100841

Hose, Water Inlet, T-Piece

11

T3706214

Clamp, Constant Tension, Dia 2

4 шт. в узле

11

T3707580

Hose Clip, Dia 20-32

4 шт. в узле

12

T3707570

Hose, Clip Dia 12-22

3 шт. в узле

12

T3706211

Clamp, Constant Tension, Dia 1

3 шт. в узле

13

T2100919

Hose, Water, Head to Rad

14

T3707585

Clip, Hose, Dia 27-35

14

T3706216

Clamp, Constant Tension, Dia 3

15

T2105201

Hose, Water Pump, Outlet

16

T2105111

Hose, Coolant, Pump Outlet

17

T2107013

Pipe, Water Pump Outlet

18

T3200444

Bolt, M6 x 10

19

T3551111

Copper Washer, M6 x 12

20

T3205064

Vis

2 шт. в узле

21

T3600124

O-Ring (21,5x3)

3 шт. в узле

22

T2107012

Pipe, Water Pump Inlet

23

T2100842

Bracket, Radiator, Lower, Fron

24

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

25

T3020033

Damper

26

T3010046

Flgd Sleeve, M6 x 9.6 x 10.5

27

T3205067

Vis

2 шт. в узле

28

T2100168

Bracket, Radiator, Lower, Rear

29

T2100224

Cover, Water Inlet

30

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

2 шт. в узле

31

T3600190

O Ring, 24 x 2.5

32

T2100206

Cover, Water Outlet

33

T2100201

Seal, Thermostat

34

T2100675

hermostat

35

T2100408

Hose, Bypass, Water

36

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

37

T2100205

Gasket, Water Inlet

38

T3700077

Clip, 10.5 Rer Oetiker

39

T2100848

win Hose Clip

40

T2103004

Expansion Tank

41

T2101015

Cap, Expansion Tank

42

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

43

T3330858

Bolt, But/Hd, M6 x 15, Shld, S

44

T2103006

Hose, Expansion Tank Overflow

45

T2103005

Hose, Expansion Tank to Rad

46

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

47

T2103007

Cover, Expansion Tank, Mldg

48

T3700235

Multi Brake Hose Clip

49

T2100433

Elbow, Overflow, Quickfit

50

T3450141

Grommet, TPE, Quickfit

51

T2106004

Air Deflector

51

T2106001

Air Deflector

52

T2106003

Retainer

52

T2106002

Retainer

53

T3205070

Bolt, HHF, Lghtd, M6 x 30, Slv

54

A9610046

Coolant, Hybrid Oat, 12 x 1L

55

T3706215

Clamp, Constant Tension, Dia 3

55

T3707580

Hose Clip, Dia 20-32

4 шт. в узле
