Главная Каталог товаров Triumph EPC 2021 Triumph TIGER 900 GT Pro Triumph 2021 (VIN: SMTE64DF) Cockpit

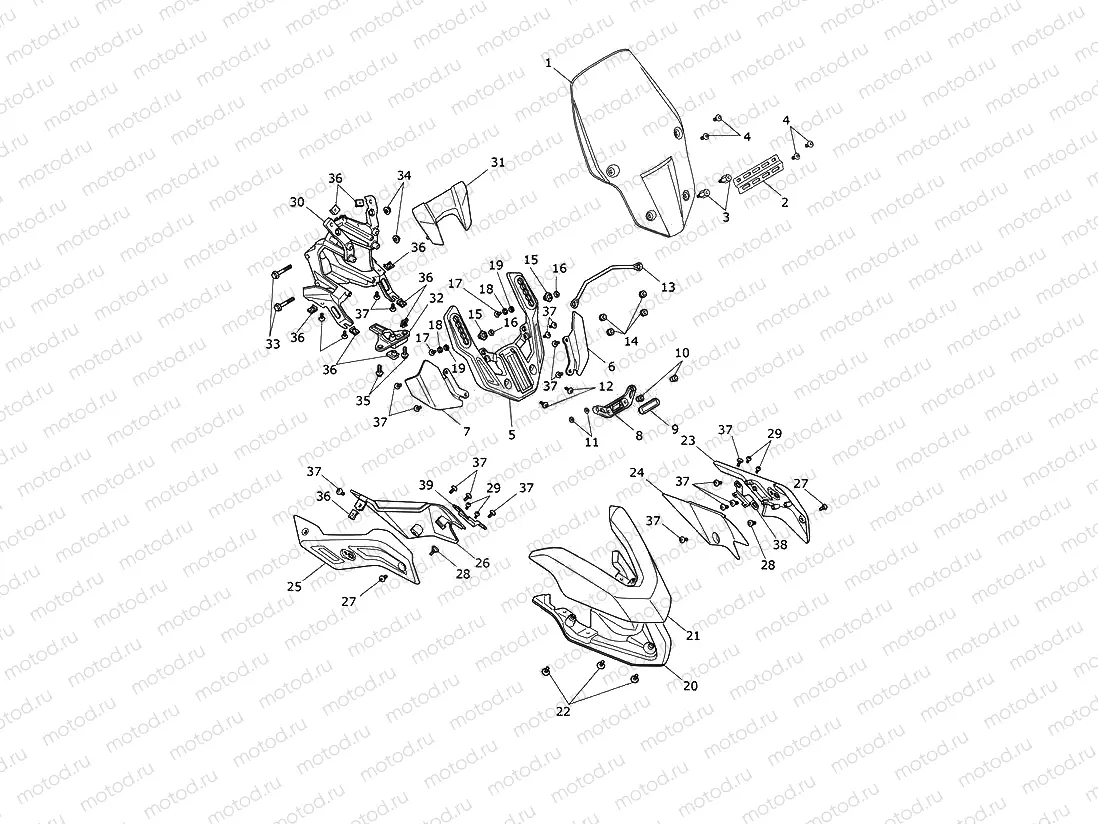

Cockpit

Cockpit

Например: T2319101

1

T2319101

Screen Moulding

1

T2319125

Screen Moulding, Coated

2

T2310718

Bracket, Front Number Plate

2

T2310223

Bracket, Front Number Plate

3

T2304694

hreaded Spacer, M5

2 шт. в узле

4

T3331065

Bolt, But/Hd, M5 x 16, Shld, B

4 шт. в узле

5

T2319103

Screen Support Assembly

6

T2319104

Side Screen, LH

7

T2319105

Screen Side, RH

8

T2319107

Central Runner

9

T2319119

Badge, Cockpit

10

T3350050

Wellnut, M5

2 шт. в узле

11

T3551139

Washer, Retaining, 3.18 x 9.50

2 шт. в узле

12

T3330941

Screw, But/Hd, Skt, M5 x 16, S

2 шт. в узле

13

T2319129

Screen Handle

14

T3020131

Grommet, 9 x 2 x 6

4 шт. в узле

15

T2319108

Mount Boss, Screen Handle

2 шт. в узле

16

T3600331

Rubber Washer

2 шт. в узле

17

T3331061

Bolt, But/Hd, M5 x 11, Shld, S

2 шт. в узле

18

T3750011

Bush, Flanged, 8 x 10 x 4

2 шт. в узле

19

T2307201

Wave Spring, Crest to Crest

2 шт. в узле

20

T2312004

Beak Support

21

T2313116-DG

Beak, Painted

21

T2313116-NK

Beak, Painted

21

T2313116-PM

Beak, Painted

22

T3331436

Vis (4x1)

3 шт. в узле

23

T2317113

Side Blade Assy, LH

24

T2312001

Infill, Side Blade, LH

25

T2317114

Side Blade Assy, RH

26

T2312002

Infill, Side Blade, RH

27

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

28

T3331076

Bolt, But/Hd, M5 x 16, Shld, E

2 шт. в узле

29

T3050341

Screw, Cap/Hd, M5 x 10, Slv

4 шт. в узле

30

T2319100

Subframe, Front, Cast

31

T2312000

Instrument Cowl

32

T2310199

Cable Tidy Moulding Assy

33

T3202307

Bolt, HHF, M8 x 50, Slv

2 шт. в узле

34

T3350004

Locknut, Flanged, M8 x 1.25

2 шт. в узле

35

T3205469

Bolt, HHF, Lghtd, M8 x 20, Enc

2 шт. в узле

36

T3350123

Nut, Captive, M5, Non-Secured

9 шт. в узле

37

T3330943

Screw, But/Hd, M5 x 14, Slv

20 шт. в узле

38

T2319120

Bracket, Side Blade, LH

39

T2319121

Bracket, Side Blade, RH

40

T2312361

Decal, GT Pro

40

T2312362

Decal, GT Pro

40

T2312363

Decal, GT Pro
