Главная Каталог товаров Triumph EPC 2018 Triumph TIGER 800 XR 855532 > Triumph 2018 (VIN: SMTTRE24) Cockpit

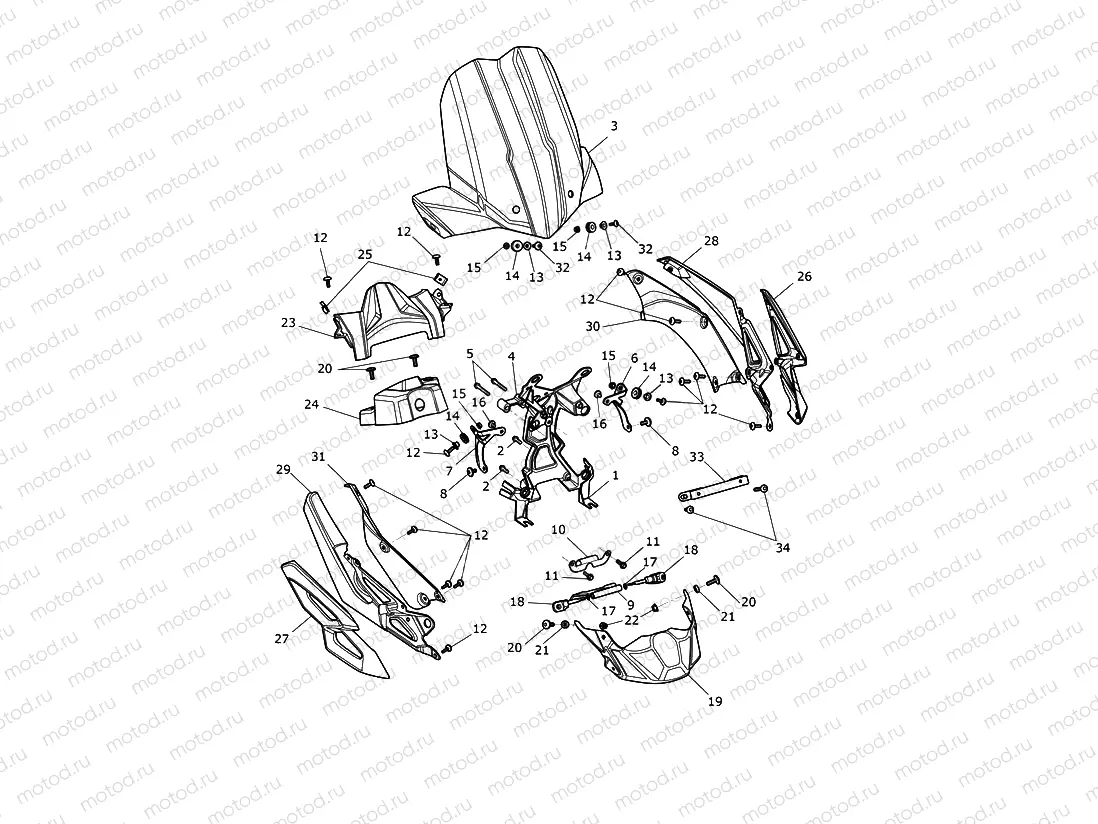

Cockpit

Cockpit

Например: T2307778

1

T2307778

Front Subframe

2

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

2 шт. в узле

3

T2305321

Screen, Low

3

T2305320

Screen, Low

4

Spacer, Front Subframe

5

T3205072

Bolt, HHF, Lghtd, M6 x 40, Slv

2 шт. в узле

6

T2307980

Screen Mount Bracket, LH

7

T2307870

Screen Mount Bracket, RH

8

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

9

T2307996

Screen Mount Casting

10

T2305705

Bracket, Ambient Temperature

11

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

2 шт. в узле

12

T3330941

Screw, But/Hd, Skt, M5 x 16, S

14 шт. в узле

13

T3010706

Flanged Sleeve, 5.2 x 7 x 6.3

4 шт. в узле

14

T3020003

Damper

4 шт. в узле

15

T3350010

Locknut, Flgd, M5

4 шт. в узле

16

T3332568

Vis

2 шт. в узле

17

T3600109

O Ring, ID 5.6 x 2.3

2 шт. в узле

18

T2307830

Mount Bracket, Screen

2 шт. в узле

19

T2309939-PG

Centre Panel

19

T2309939-NK

Centre Panel

19

T2309939-NW

Centre Panel

20

T3330727

Vis (M6x20)

4 шт. в узле

21

T3551234

Rondelle (plastic)

2 шт. в узле

22

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

23

T2306954

Panel, Tank, Front

24

T2309879

Ignition Switch Panel

25

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

26

T2305529-PS

creen Panel, Pntd, LH

26

T2305529-MH

Screen Panel, Pntd, LH

27

T2305528-PS

creen Panel, Pntd, RH

27

T2305528-MH

Screen Panel, Pntd, RH

28

T2309838-PG

Cockpit Panel, LH

28

T2309838-NK

Cockpit Panel, LH

28

T2309838-NW

Cockpit Panel, LH

29

T2309839-NW

Cockpit Panel, RH

29

T2309839-NK

Cockpit Panel, RH

29

T2309839-PG

Cockpit Panel, RH

30

T2305311

Cockpit Infill Panel, LH

31

T2305312

Cockpit Panel Infill, RH

32

T3338989

Screw, But/Hd, M5 x 20, S/S

2 шт. в узле

33

Bracket, Number Plate, Front

34

T3330295

Screw, Skt HD, M5 x 25, S/S

2 шт. в узле
