Главная Каталог товаров Triumph EPC 2016 Triumph Tiger 800 674842 > TIGER XC Triumph 2016 Cockpit

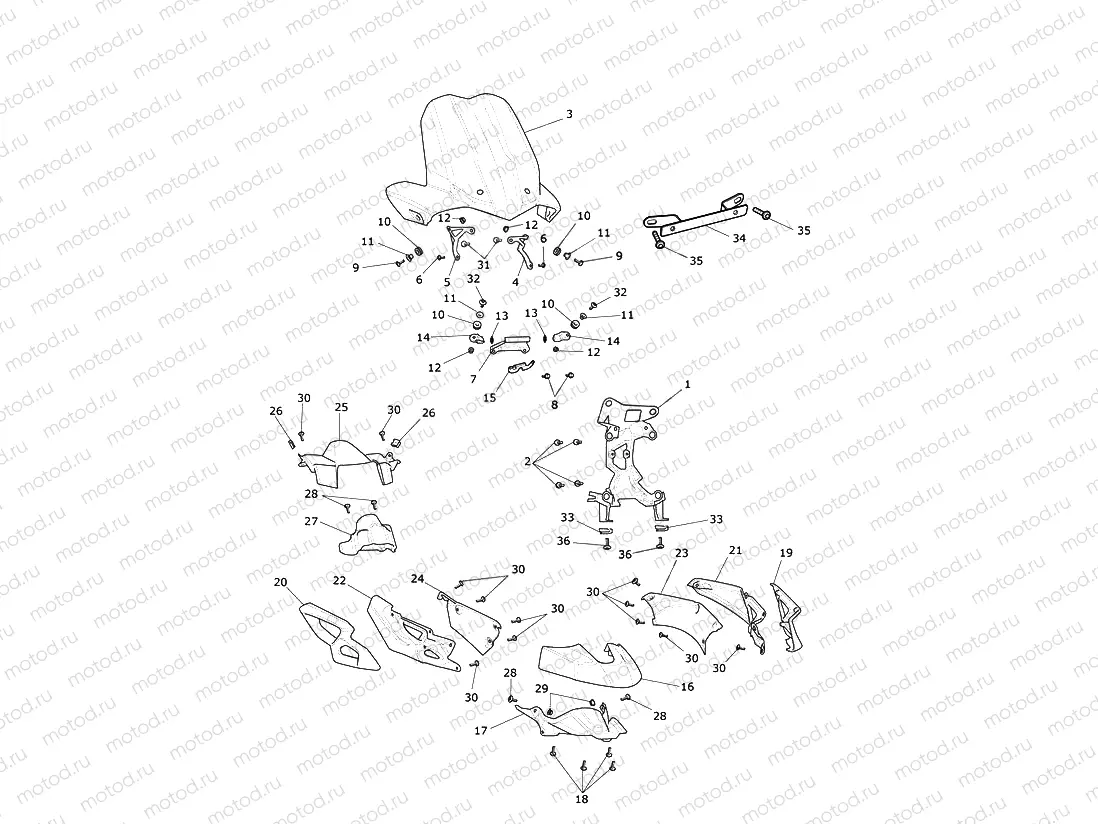

Cockpit

Cockpit

Например: T2307778

1

T2307778

Front Subframe

2

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

4 шт. в узле

3

T2305321

Screen, Low

3

T2305320

Screen, Low

4

T2307980

Screen Mount Bracket, LH

5

T2307870

Screen Mount Bracket, RH

6

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

7

T2307996

Screen Mount Casting

8

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

2 шт. в узле

9

T3330941

Screw, But/Hd, Skt, M5 x 16, S

14 шт. в узле

10

T3020003

Damper

4 шт. в узле

11

T3010706

Flanged Sleeve, 5.2 x 7 x 6.3

4 шт. в узле

12

T3350010

Locknut, Flgd, M5

4 шт. в узле

13

T3600109

O Ring, ID 5.6 x 2.3

2 шт. в узле

14

T2307830

Mount Bracket, Screen

2 шт. в узле

15

T2305705

Bracket, Ambient Temperature

16

T2305315-PG

Beak Panel Moulding, Pntd

16

T2305315-PR

Beak Panel Moulding, Pntd

16

T2305315-NW

Beak Panel Moulding, Pntd

17

T2305319

Beak Support Moulding

18

T3330941

Screw, But/Hd, Skt, M5 x 16, S

14 шт. в узле

19

T2305529-LS

creen Panel, Pntd, LH

20

T2305528-LS

creen Panel, Pntd, RH

21

T2305306

Cockpit Panel, LH

22

T2305307

Cockpit Panel, RH

23

T2305311

Cockpit Infill Panel, LH

24

T2305312

Cockpit Panel Infill, RH

25

T2305308

Panel, Tank, Front

26

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

27

T2305309

Ignition Switch Panel

28

T3330727

Vis (M6x20)

4 шт. в узле

29

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

30

T3330941

Screw, But/Hd, Skt, M5 x 16, S

14 шт. в узле

31

T3332568

Vis

2 шт. в узле

32

T3338989

Screw, But/Hd, M5 x 20, S/S

2 шт. в узле

33

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

34

Bracket, Number Plate, Front

34

T2305722

Bracket, Front Number Plate

35

T3330295

Screw, Skt HD, M5 x 25, S/S

2 шт. в узле

36

T3330955

Screw, But/Hd, M5 x 14, Slv, E

2 шт. в узле
