Главная Каталог товаров HUSQVARNA EPC 2020 HUSQVARNA Street HUSQVARNA 2020 701 Enduro LR (F2603T2) [EU] HUSQVARNA 2020 Street (VIN: VBKUEV40) CLUTCH|Engine|32

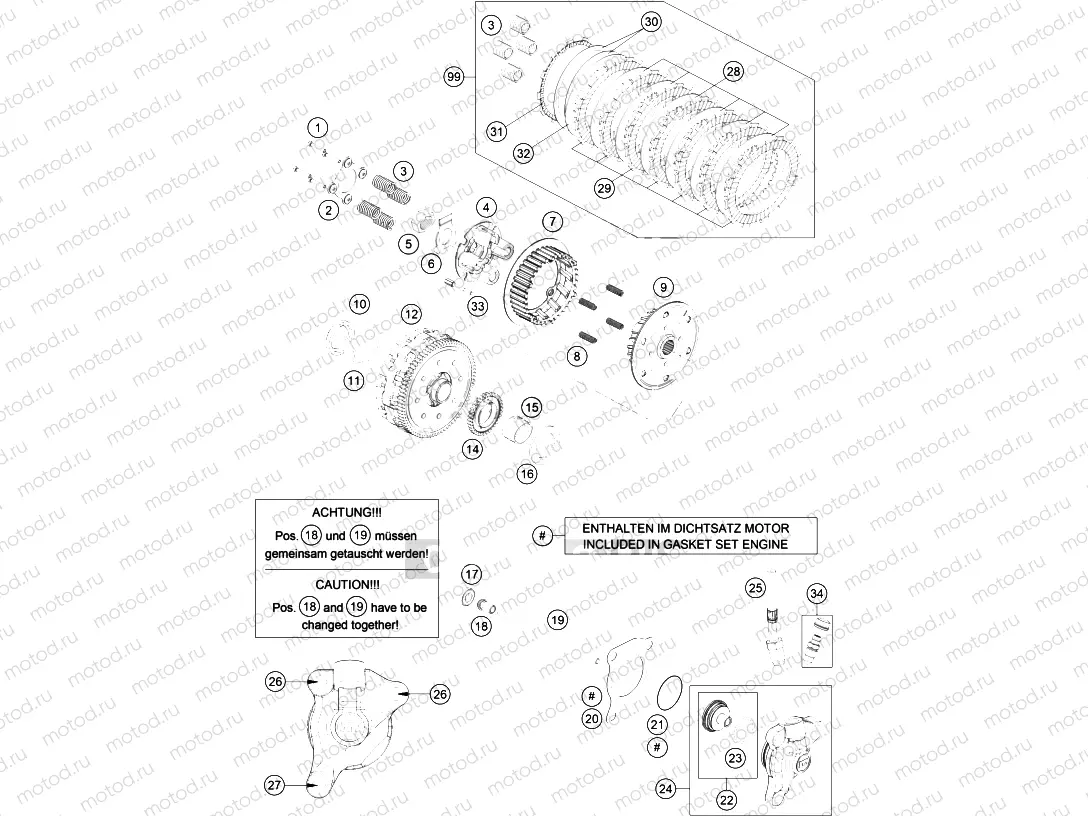

CLUTCH|Engine|32

CLUTCH|Engine|32
Например: 014580050306
1
014580050306
Cyl.screw DIN14580 M5x30
2
76632006000
Anticentrifugal ring
3
58532080001
CLUTCH SPRING 3,0X33,5
4
76632003044
Pressure Plate
5
60036073150
Nut (M20x1,5)
6
75032018100
Lock washer
7
76632002102
Movable Hub
8
75032033000
CLUTCH RELEASE SPRING
9
76632002101
Fixed Hub
10
75032009000
STEPPED WASHER 07
11
75032007000
HALF-WASHER 07
12
75032001244
Clutch housing cpl.
14
75032050001
OIL PUMP DRIVE WHEEL 07
15
56532095000
Needle bearing
16
75032017000
WASHER 26X40X2 07
17
0625060016
Roulement (C3)
18
75032055100
PRESSURE BOLT 08
19
75032054200
PUSH ROD 08
20
59032065100
GASKET F. OUTPUT CYLINDER
21
0770300015
O-Ring
22
26632066000
PISTONKIT OUTPUT ZYL. DOT 27MM
23
26632067000
O-Ring 23,52x1,78 EPDM
24
79432061144
Output Cyl. Dot Cpl. 27mm
25
54732063100
CLUTCH PIPE 250/300 2003
26
0025060206
Vis
27
0025060356
Vis
28
75032112000
STEEL DISK 1,5 MM LC4 ´07
29
58332011300
LINING DISK 2,7MM FCC 02 (2,7MM FCC 02)
30
58632016000
RONDELLA ANTIVIBRAZIONE SET
31
75032111100
LINING DISC CUT OUT
32
75032112100
STEEL DISK 1,5MM NITRIDED
33
75032032000
HOLDING SCREW GMB-M5X35
34
54732064000
BLEEDER SCREW WITH CAP
99
75032011110
CLUTCH KIT 690 LC4 08-14
