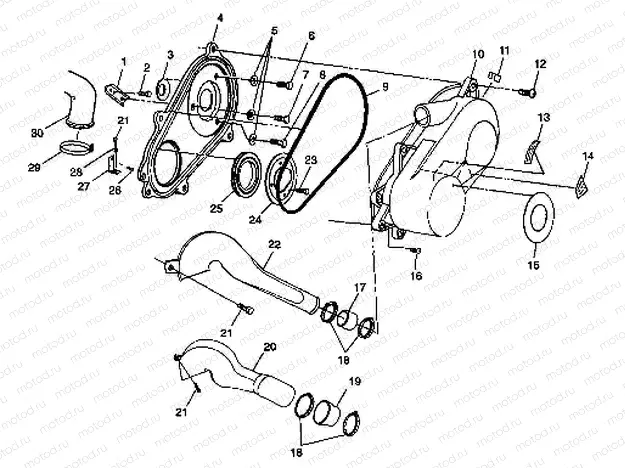

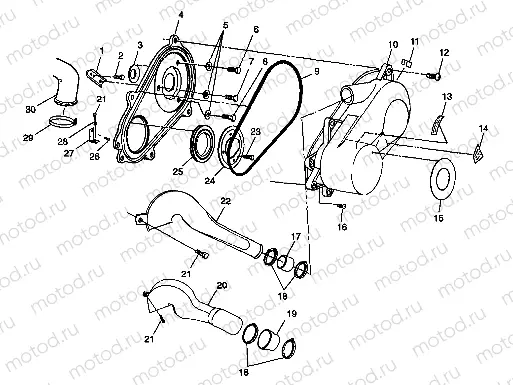

CLUTCH COVER - S98CH50E(B) (4950135013c006) | CLUTCH COVER - S98CH50E(B) (4950135013c006)

CLUTCH COVER - S98CH50E(B) (4950135013c006) | CLUTCH COVER - S98CH50E(B) (4950135013c006)

Например: 1040519-067

1

1040519-067

BRKT,R.CLUTCH CVR,BLK.

2

7512240

Vis

3

5410489

SEAL COVER CASE

4

2201160

COVER CLUTCH INNER 500 SVC KIT

5

7555748

Rondelle

6

7512247

Vis

7

7512277

Vis

8

7512278

Vis

9

5521301

SEAL OUTER CLUTCH COVER

10

5433542

COVER-CLUTCH FRONT RTP

10

5433540

COVER-CLUTCH OUTER RTP

11

7670051

CLIP CLUTCH COVER

12

7512093

SCREW #14 X 1-3/4

13

7077666

DECAL"AUTO./EBS",CLUTCH (Nor)(Swed)

14

7077377

"""DECAL ENG/CLUTCH MOD."""

16

7512094

Vis

17

5410421

BOOT CLUTCH INTAKE

18

7080492

CABLE TIE 11 INCH

19

5411489

BOOT DUCT HI-FLOW

20

5433980

DUCT-CLUTCH OUTLET 16.6

21

7512232

Vis

22

5432145

DUCT,OUTLET,CLUTCH

23

LR--

CALIPER, BRAKE, RH

24

5242046

BRKT-CLUTCH SEAL

25

5412637

SEAL-COVER CASE ENGINE

26

7512095

Vis

27

5241156-067

BRKT-CLUTCH COVER BLK

28

7555935

Rondelle

29

7080511

CLAMP NARROW BAND
