Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 SPORTSMAN 6X6 (A04CL50AA) Polaris 2004 ATV CLUTCH COVER - A04CL50AA (4986288628C06) | CLUTCH COVER - A04CL50AA (4986288628C06)

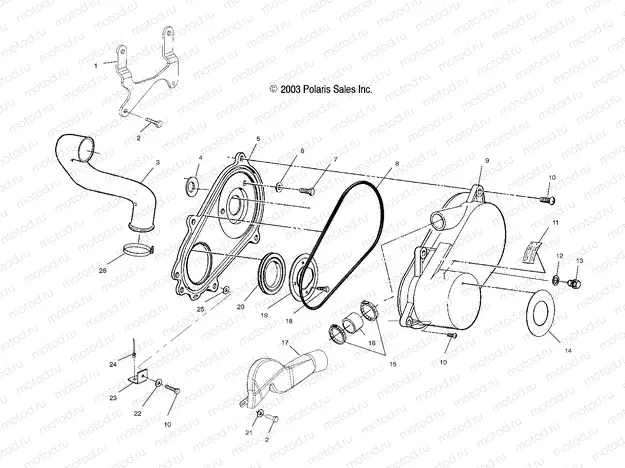

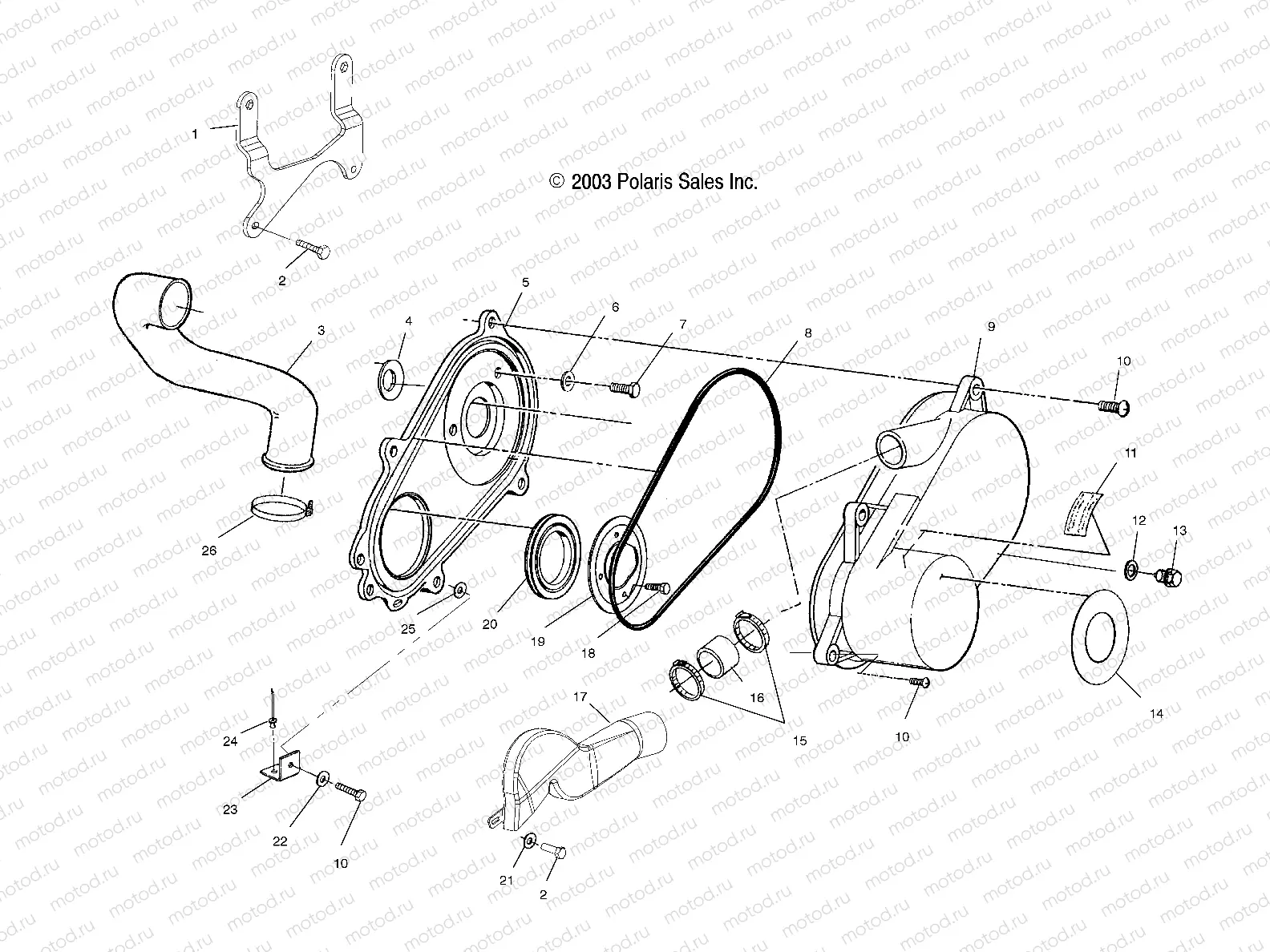

CLUTCH COVER - A04CL50AA (4986288628C06) | CLUTCH COVER - A04CL50AA (4986288628C06)

CLUTCH COVER - A04CL50AA (4986288628C06) | CLUTCH COVER - A04CL50AA (4986288628C06)

Например: 5247524-067

1

5247524-067

BRKT-CLUTCH COVER BLACK

2

7512232

Vis

3

5437060

DUCT-CLUTCH AIR INLET

4

5411553

SEAL CVR INNER

5

2201851

COVER INNER CLUTCH KIT SVC 863

6

7555748

Rondelle

7

7510000

ASM-BOLT/WASHER 1.125

7

7517599

ASM. BOLT /WASHER.88

8

5526450

SEAL-OUTER CLUTCH COVER

9

2633926

ASM-COVER CLUTCH OUTER HV

10

7512094

Vis

11

7078689

Gebruik/Utilisez 7078689

12

5411432

O RING

13

5434264

PLUG-DRAIN

14

7074782

DECAL,AUTO.TRANSMISSION

15

7080707

CLAMP BAND NARROW

16

5411489

BOOT DUCT HI-FLOW

17

5433657

DUCT AIROUTLET CLUTCH

18

LR--

CALIPER, BRAKE, RH

19

5242046

BRKT-CLUTCH SEAL

20

5412637

SEAL-COVER CASE ENGINE

21

7558301

WASHER FLAT

22

7555935

Rondelle

23

5247949

BRKT-CLUTCH COVER FRT PLTD

23

5247949

BRKT-CLUTCH COVER FRT PLTD

24

7661637

RIVET INTERLOCK Z

25

7556091

Entretoise

26

7080511

CLAMP NARROW BAND
