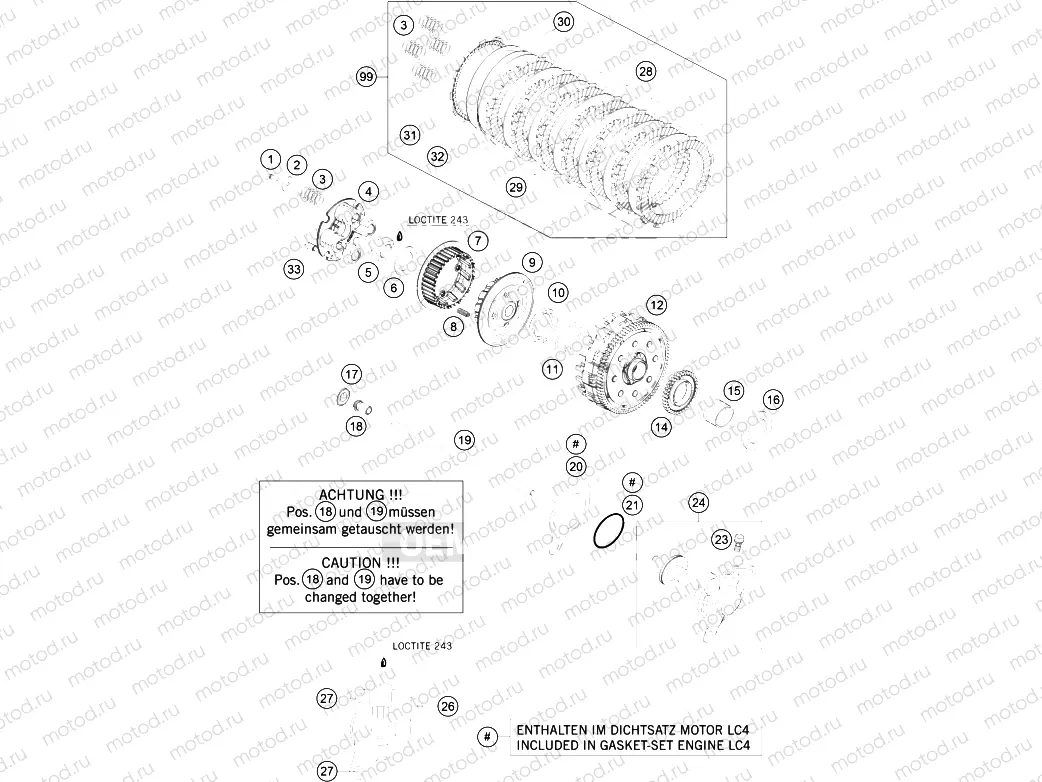

CLUTCH

CLUTCH
Например: 0025050256
1
0025050256
Vis
2
75032006000
SPRING RING 07
3
58532080001
CLUTCH SPRING 3,0X33,5
4
75032003000
PRESSURE CAP
5
60036073150
Nut (M20x1,5)
6
47032020000
STOP DISC 20X32X2
7
75032002002
INNER CLUTCH HUB MOVABLE
8
75032033000
CLUTCH RELEASE SPRING
9
75032002001
INNER CLUTCH HUB FIXED
10
75032009000
STEPPED WASHER 07
11
75032007000
HALF-WASHER 07
12
75032001044
% OUTER CLUTCH HUB CPL.
14
75032050001
OIL PUMP DRIVE WHEEL 07
15
56532095000
Needle bearing
16
75032017000
WASHER 26X40X2 07
17
0625060016
Roulement (C3)
18
75032055100
PRESSURE BOLT 08
19
75032054200
PUSH ROD 08
20
59032065100
GASKET F. OUTPUT CYLINDER
21
0770300015
O-Ring
23
54732064000
BLEEDER SCREW WITH CAP
24
75032061044
OUTPUT CYL. WITH BLEEDER SCREW
26
0025060356
Vis
27
0025060206
Vis
28
75032112000
STEEL DISK 1,5 MM LC4 ´07
29
58332011300
LINING DISK 2,7MM FCC 02 (2,7MM FCC 02)
30
58632016000
RONDELLA ANTIVIBRAZIONE SET
31
75032111100
LINING DISC CUT OUT
32
75032112100
STEEL DISK 1,5MM NITRIDED
33
75032032000
HOLDING SCREW GMB-M5X35
99
75032011110
CLUTCH KIT 690 LC4 08-14
