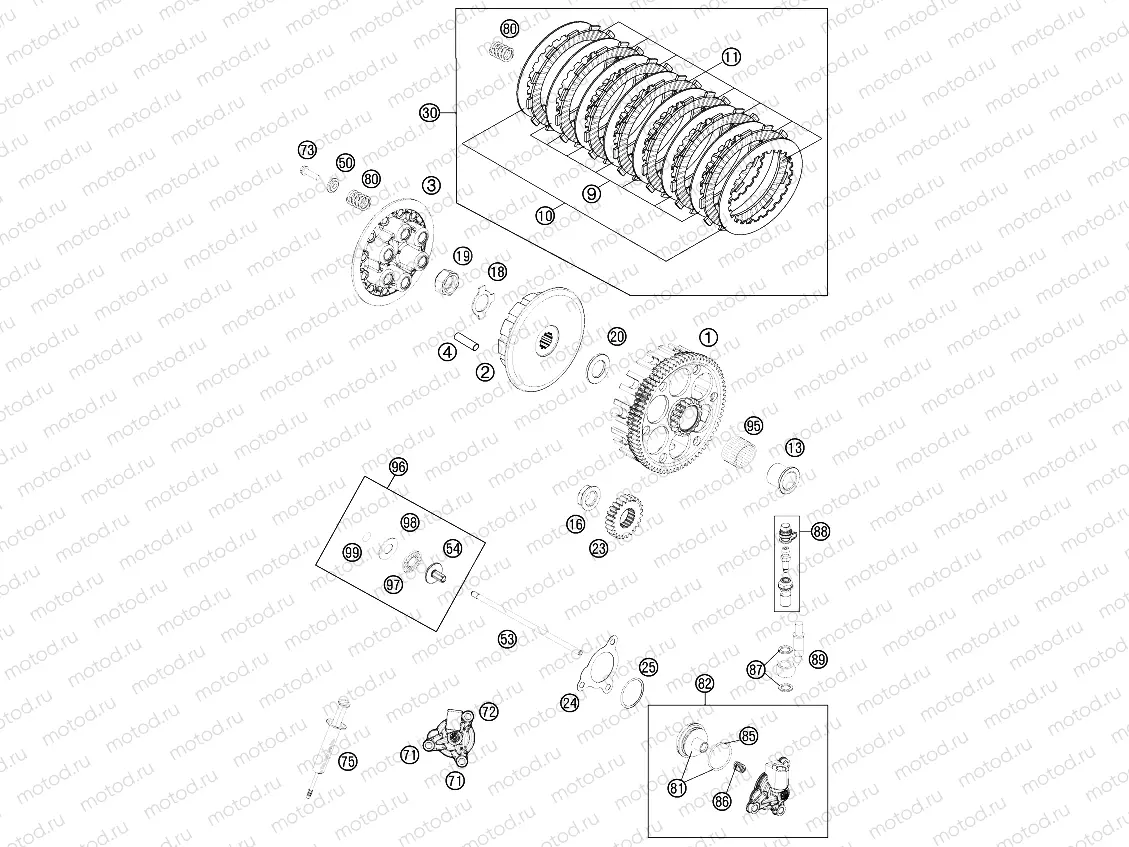

CLUTCH

CLUTCH
Например: 77232001073
1
77232001073
OUTER CLUTCH CPL.
2
77232002100
KUPPLUNGSMITNEHMER
3
77232003000
PRESSURE PLATE
4
77232104000
DRIVING SLEEVE D=7,95 L=38
9
59032010200
INTERMEDIATE DISC 1,4MM 2002
10
59032010100
INTERMEDIATE DISC 1MM 2002
11
79532011000
Lining disc 1,95mm
13
77232015100
inner ring
16
77230029000
Nut
18
77232018000
SHEET METAL LOCK
19
0910001801400S
GasGas Nut M18x1.5 Precote
20
77232009100
WASHER 21,8 X 37 X 3
23
77232023024
PRIMARY GEAR 24T.
24
77232062000
GASKET F. OUTPUT CYLINDER
25
0770300015
O-Ring
30
78132010010
CLUTCH KIT 350 SX-F 11-15
50
59032006000
SPRING RETAINER 6,2X12X18X3,6
53
77232054000
PUSH ROD
54
78032057044
PRESSURE PIECE CPL. 08
71
0025060166
Vis
72
0025060356
Vis
73
0025060256
Vis
75
50329050000
VENT INJEKTION HYDR. CLUTCH
80
52332005200
CLUTCH SPRING
81
77232066000
PISTON CPL.
82
77232061044
OUTPUT CYLINDER CPL.
85
54832067000
O-Ring
86
54832069000
PRESSURE SPRING
87
42013226000
Rondelle
88
62513020000
BLEEDER SCREW CPL. 05
89
54832063000
CLUTCH PIPE 06
95
56532095000
Needle bearing
96
78032057044
PRESSURE PIECE CPL. 08
97
54637097200
Needle bearing
98
54637098200
AXIAL WASHER AS1226 12X26X1
99
0993012000
CIRCLIP DIN7993-RW12
