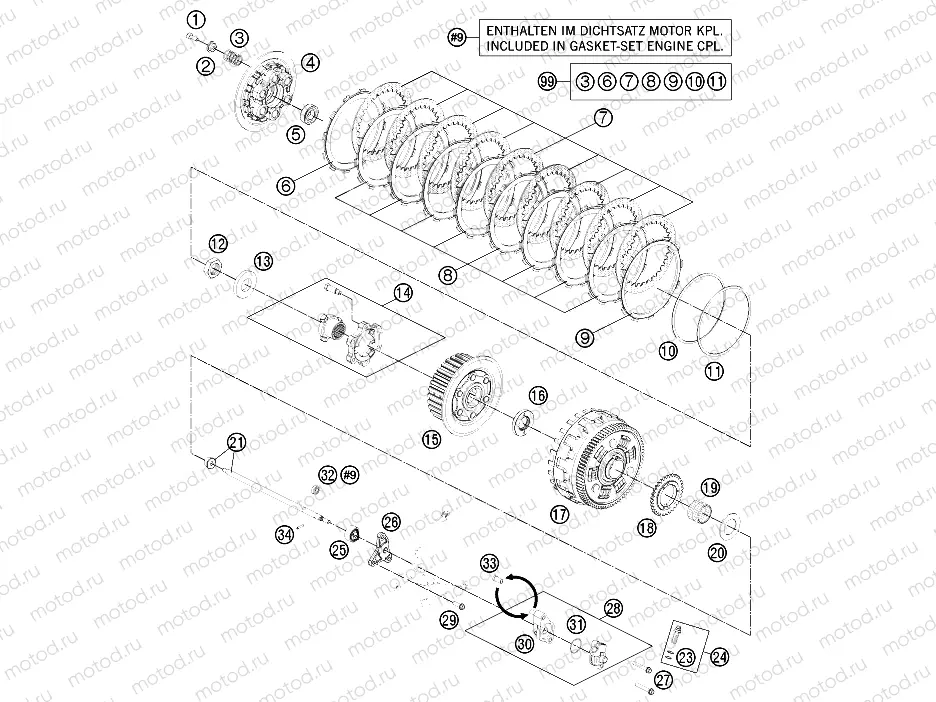

CLUTCH

CLUTCH
Например: 0984060162
1
0984060162
AH SCREW DIN7984-M 6X16
2
61232006000
SPRING RETAINER STEPPED
3
69132005000
CLUTCH SPRING D2,7/35MM PINK
4
61232003000
PRESSURE CAP
5
0625060032
Roulement (6003 JR2 C4)
6
61232111000
LINING DISK OUTSIDE 3MM
7
69132010000
INTERMEDIATE DISK
8
61232011000
LINING DISK 3MM
9
61232012000
LINING DISK INSIDE 3,8MM
10
61232034000
BELLEVILLE SPRING
11
61232035000
BEARING RING
12
0936220155
HEXAGON NUT DIN0936-M22X1,5 R.
13
0126220373
WASHER DIN0126 22X37X3 MM
14
60032080000
CLUTCH BOOSTER UNIT CPL. 03
15
61232002000
CLUTCH TAPPET CPL.
16
60032021000
SECTION WASHER 03
17
69132001044
CLUTCH CAGE CPL.
18
60038001232
Oil pump gear 32th
19
0618303526
NEEDLE BUSH HK 30X35X26
20
60032020000
STOP DISK 30,2/50/2
21
61232154000
Push rod assembly 117mm
23
0603100141
Rondelle
24
50332062000
HOLLOW SCREW CPL. M 10X1 '98
25
61232069000
PUSH ROD GUIDE
26
61232068100
DISTANCE PLATE 7MM
27
0025060506
Vis
28
60032061244
SLAVE CYLINDER CPL. LC8 08
29
0025060256
Vis
30
60032061050
DISTANCE CLUTCH CONTR. CPL.
31
60032065000
O-RING GASKET 03
32
0760091862
SHAFT SEAL RING 9X18X06 B-NBR
33
61232061051
SLEEVE CLUTCH CONTR.
34
0402031780
NEEDLE ROL.DIN5402 NRB 3X17,8
99
69132011010
CLUTCH KIT RC8-R 09-12
