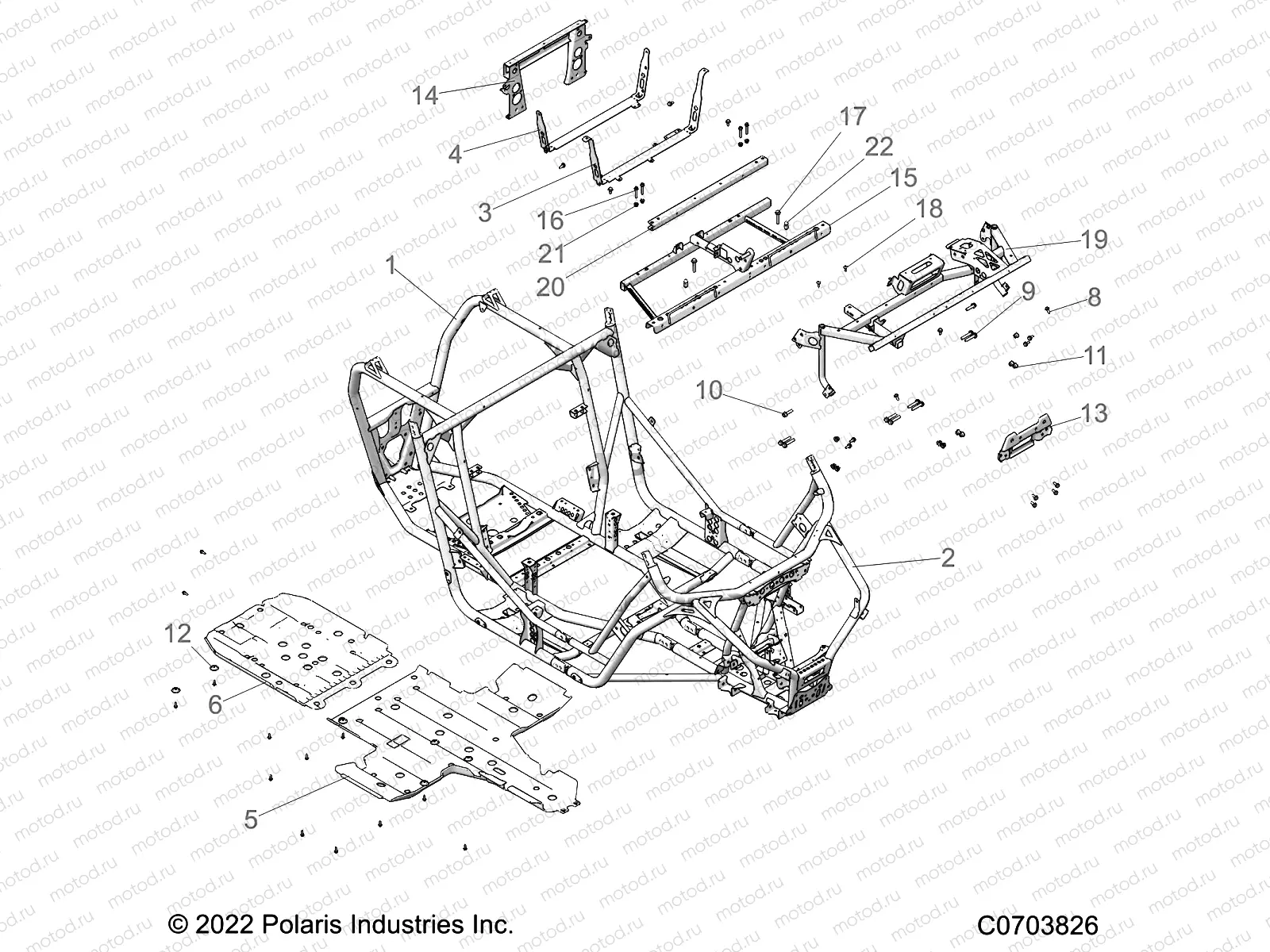

CHASSIS | CHASSIS, MAIN FRAME AND SKID PLATES - Z22NAM99AR (C0703826)

CHASSIS | CHASSIS, MAIN FRAME AND SKID PLATES - Z22NAM99AR (C0703826)
1
1024526-458
WELD-MAIN FRAME BLK
2
1024369-458
WELD-MAINFRAME FRT SWAY BLK
3
5260947-329
BRKT-BOX STRAP BLK
4
5264553-329
BRKT-BOX SUPPORT REAR ECOAT
5
5456432-070
PLATE-SKID BLK
6
5458186-070
PLATE-SKID REAR BLK
8
7518555
BOLT-M8X1.25X20 HXFLG TAP/R-OD
9
7519285
SCR-HXFL-M10X1.25X55 10.9 ZOD
10
7519332
SCR-HXFL-M10X1.25X40 8.8 ZOD
11
7547333
NUT-M10X1.25 FLG NYLOC-OLIVE D
12
7556065
WASHER SKID PLATE
13
5259449-458
BRKT-SUSP MNT FRT M.BLK
14
1019529-458
WELD-SUPPORT REAR BLK
15
1020571-329
ASM-SEAT BASE BLK
16
7516732
Vis
17
7518474
BOLT-M10X1.5X55 HX HD FLG
18
7519650
SCR-TXTH-M6X1.0X25 RIE
19
1024577-329
WELD-DASH TURBO S ECOAT
20
5260539-329
BRKT-CLOSE OFF SUPPORT BLK
21
7547332
NUT-M8X1.25 FLG NYLOC-OLIVE D
22
5632848
PLUNGER-LATCH SEAT
