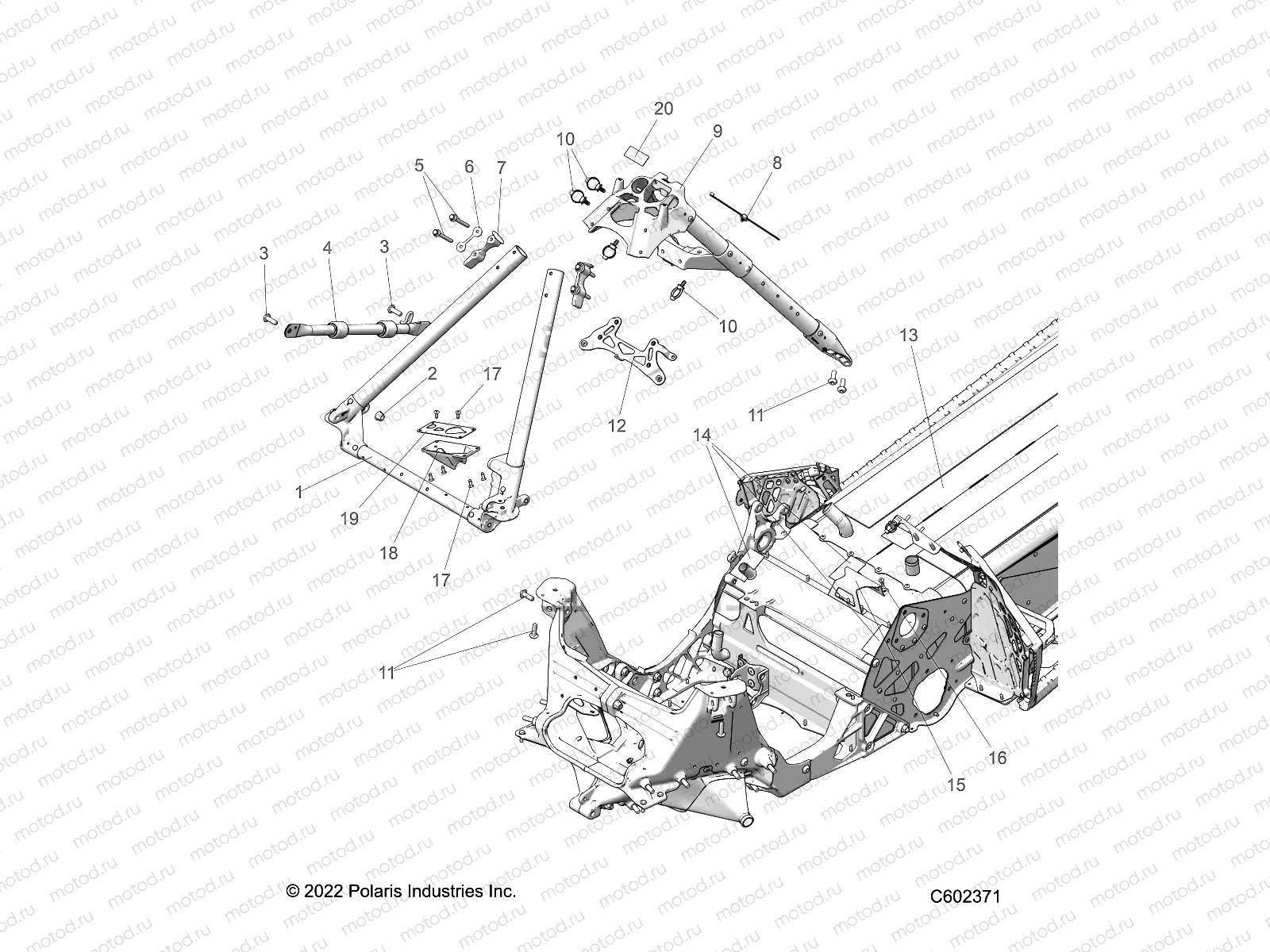

CHASSIS | CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S23TGG9BS/TGY9BS (C602371)

CHASSIS | CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S23TGG9BS/TGY9BS (C602371)

Например: 5814124

1

5814124

FOIL-100MM X 200MM

1

1023850

ASM-FRAME TUBE FRONT RMK CF

2

7547332

NUT-M8X1.25 FLG NYLOC-OLIVE D

3

7518906

CL8.8 OLV-D

4

1026865

WELD-CROSS BRACE BLK

5

7520721

SCR-HXFL-M6X1.0X55 10.9 ZODP30

6

5633083

SHIM-TUBE CAST 31.76 DIA

7

5632923

SPACER-TUBE CAST

8

7082003

CABLE TIE-FIR TREE

9

1026175

ASM-FRAME TUBULAR REAR RMK

10

7081496

CLIP-ROUTING

11

7519070

SCR-TXTH-M8X1.25X25 8.8 ZODP30

12

1023231

ASM-REGULATOR MOUNT RMK

13

1027501-293

ASM-CHASSIS 850 165 INDYRED

13

1025926-309

ASM-TUNNEL ONE PIECE 165P NAT

13

1027501-647

ASM-CHASSIS 850 165 ORG BURST

13

1025926-647

ASM-TUNNEL ONE PIECE 165P ORG

13

1027501-067

ASM-CHASSIS 850 165 BLK

13

1027501-689

ASM-CHASSIS 850 165 VELBLUE

13

1025926-067

ASM-TUNNEL ONE PIECE 165P GLBK

13

1025926-689

ASM-TUNNEL ONE PIECE 165P VBLU

13

1027501-309

ASM-CHASSIS 850 165 NAT

13

1025926-801

ASM-TUNNEL ONE PIECE 165P LLM

13

1025926-293

ASM-TUNNEL ONE PIECE 165P IRED

13

1027501-801

ASM-CHASSIS 850 165 LFTD LIME

14

5814353

PAD-40X63.5

15

5271212

BRKT-AIRBOX SUPPORT

16

7661637

RIVET INTERLOCK Z

17

7661973

RIVET-4.8MM DIA-1.5-6.0 GRIP

18

5454789

MOUNT-LOAD CENTER

19

5265340

BRKT-LOAD CENTER

20

5814828

PAD-4411G 40MIL 51X22
