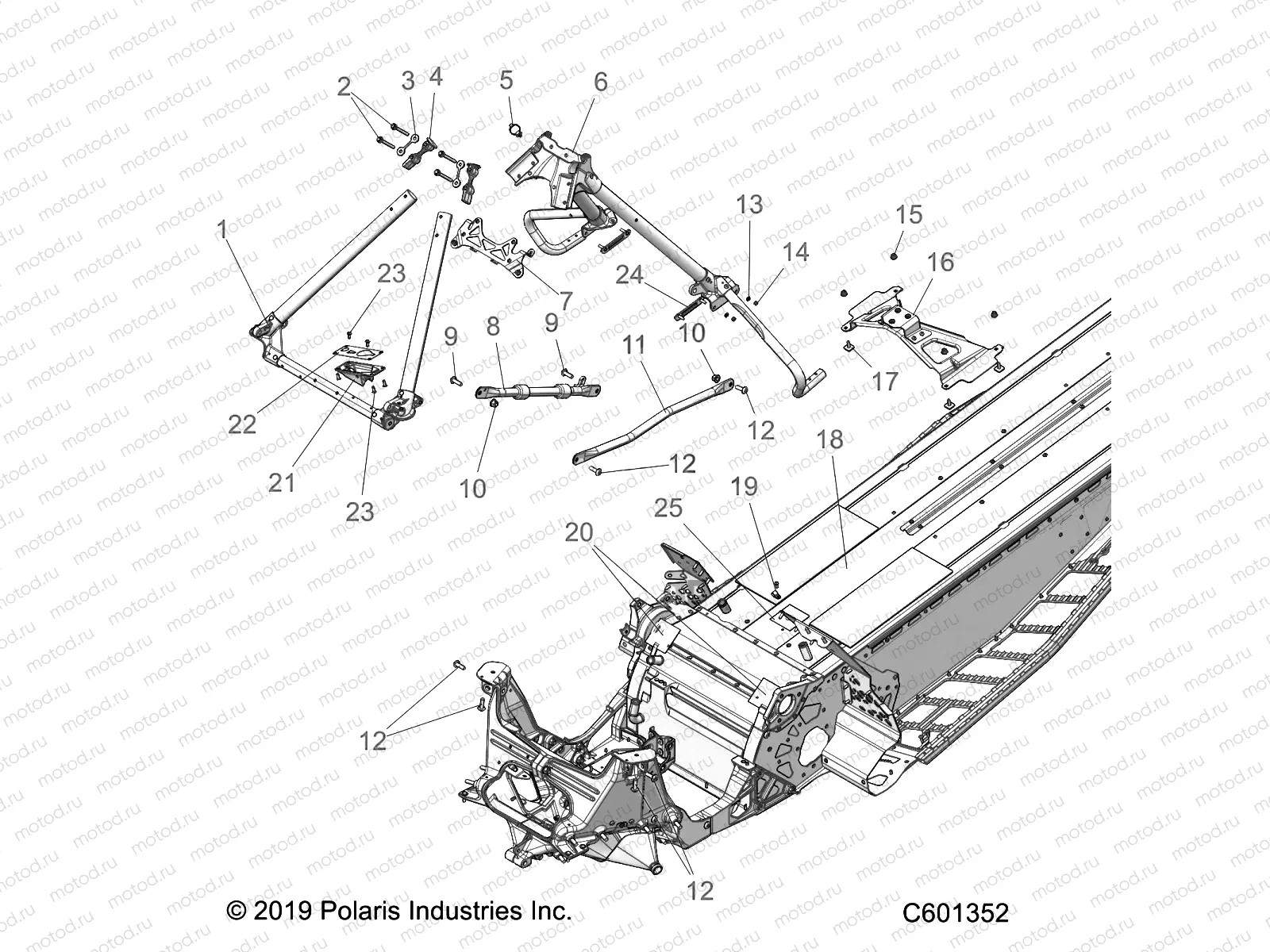

CHASSIS | CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S21EDP8RS ALL OPTIONS (C601352)

CHASSIS | CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S21EDP8RS ALL OPTIONS (C601352)

Например: 1024164

1

1024164

ASM-FRAME TUBULAR FRONT ALUM

2

7520723

SCR-HXFL-M6X1X60 10.9 ZOD P30

3

5633083

SHIM-TUBE CAST 31.76 DIA

4

5633122

SPACER-TUBE CAST 27.00 DIA

5

7082003

CABLE TIE-FIR TREE

6

1023206

ASM-TUBE FRAME REAR

7

1024479

ASM-REGULATOR MOUNT

8

1026865

WELD-CROSS BRACE BLK

9

7518906

CL8.8 OLV-D

10

7547332

NUT-M8X1.25 FLG NYLOC-OLIVE D

11

5337391-329

TUBE-BRACE LH BLK

12

7519070

SCR-TXTH-M8X1.25X25 8.8 ZODP30

13

7556071

WSHR-FL 5.5X1.0

14

7546601

NUT NYLOK

15

7547453

NUT-HXFL-M6X1.0 8 ZB3 NYL

16

1021376-458

ASM-BRKT FUEL TANK REAR MBLK

17

7520514

SCR-SPCL M6X1.0X16 8.8 ZC

18

1024801-751

ASM-CHASSIS 850 137 POLBLUE

18

1024801-728

ASM-CHASSIS 850 137 GRAY

18

1022432-751

ASM-TUNNEL CONV 137 POL BLUE

18

1022432-293

ASM-TUNNEL CONV 137 RED

18

1022432-309

ASM-TUNNEL CONV 137 NAT

18

1022432-728

ASM-TUNNEL CONV 137 GRAY

18

1022432-067

ASM-TUNNEL CONV 137 BLK

18

1024801-309

ASM-CHASSIS 850 137 NAT

18

1024801-293

ASM-CHASSIS 850 137 RED

18

1024801-067

ASM-CHASSIS 850 137 BLK

19

7662251

RIVET-4.8MM DIA-1.5-6.0GRIP BK

19

7080960

CLAMP-CABLE NYLON 5/16

20

5814187

PAD-2.5X2.5

21

5454789

MOUNT-LOAD CENTER

22

5265340

BRKT-LOAD CENTER

23

7661973

RIVET-4.8MM DIA-1.5-6.0 GRIP

24

1023672

ASM-STUD PLATE 5MM

25

5814353

PAD-40X63.5
