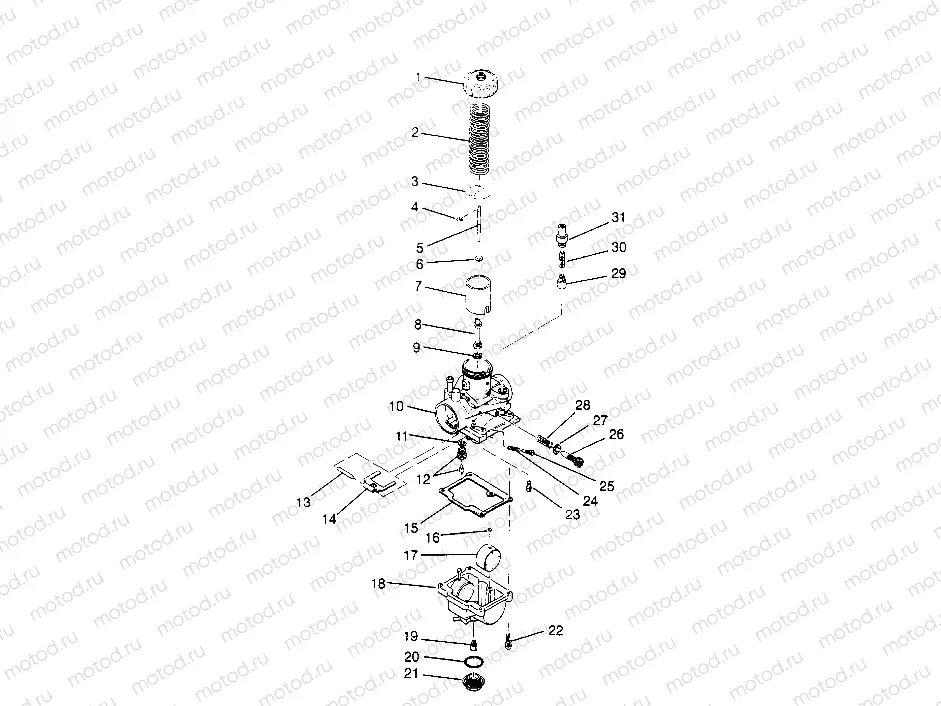

CARBURETOR Sportsman 4x4 W958040 (4930403040D004) | CARBURETOR Sportsman 4x4 W958040 (4930403040D004)

CARBURETOR Sportsman 4x4 W958040 (4930403040D004) | CARBURETOR Sportsman 4x4 W958040 (4930403040D004)

Например: 3130184

1

3130184

ASM. TOP MIXING CHAMBER

2

3130496

SPRING THROTTLE

3

3130027

PLATE THROTTLE

4

3130508

E-RING

5

3130462

JET NEEDLE 6-DH29

6

3130355

Rondelle

7

3130494

VALVE THROTTLE (1.5)

8

3130429

NEEDLE JET ASM.

9

3130393

RING, MAIN JET

10

3130710

Carburettor

11

3130047

Rondelle

12

3131385

VALVE-NEEDLE 2.5 (THREADED)

13

3130361

PIN FLOAT

14

3130018

ARM FLOAT

15

3130020

Gasket - float chamber

16

3130237

CAP

17

3130430

FLOAT ASM.

18

3130443

BOWL, FLOAT (350)

19

3130123

JET MAIN HX.HD#200

20

3130239

O-Ring

21

3130432

SCREW GUIDE

22

3130025

ASM. SCREW & WASHER

23

3130065

JET PILOT #30

24

3130012

SPRING AIR ADJUST

25

3130011

SCREW AIR

26

3130009

SCREW THROTTLE STOP

27

3130447

Rondelle

28

3130436

SPRING THROT.ADJ.

29

3130328

ASM. PLUNGER

30

3131764

SPRING THROTTLE SS

31

3130199

HOLDER GUIDE
