Главная Каталог товаров Polaris EPC 1997 Polaris PWC Polaris 1997 SLX PRO 785 (B974978) Polaris 1997 PWC CARBURETOR - B974978 (4941254125c005) | CARBURETOR - B974978 (4941254125c005)

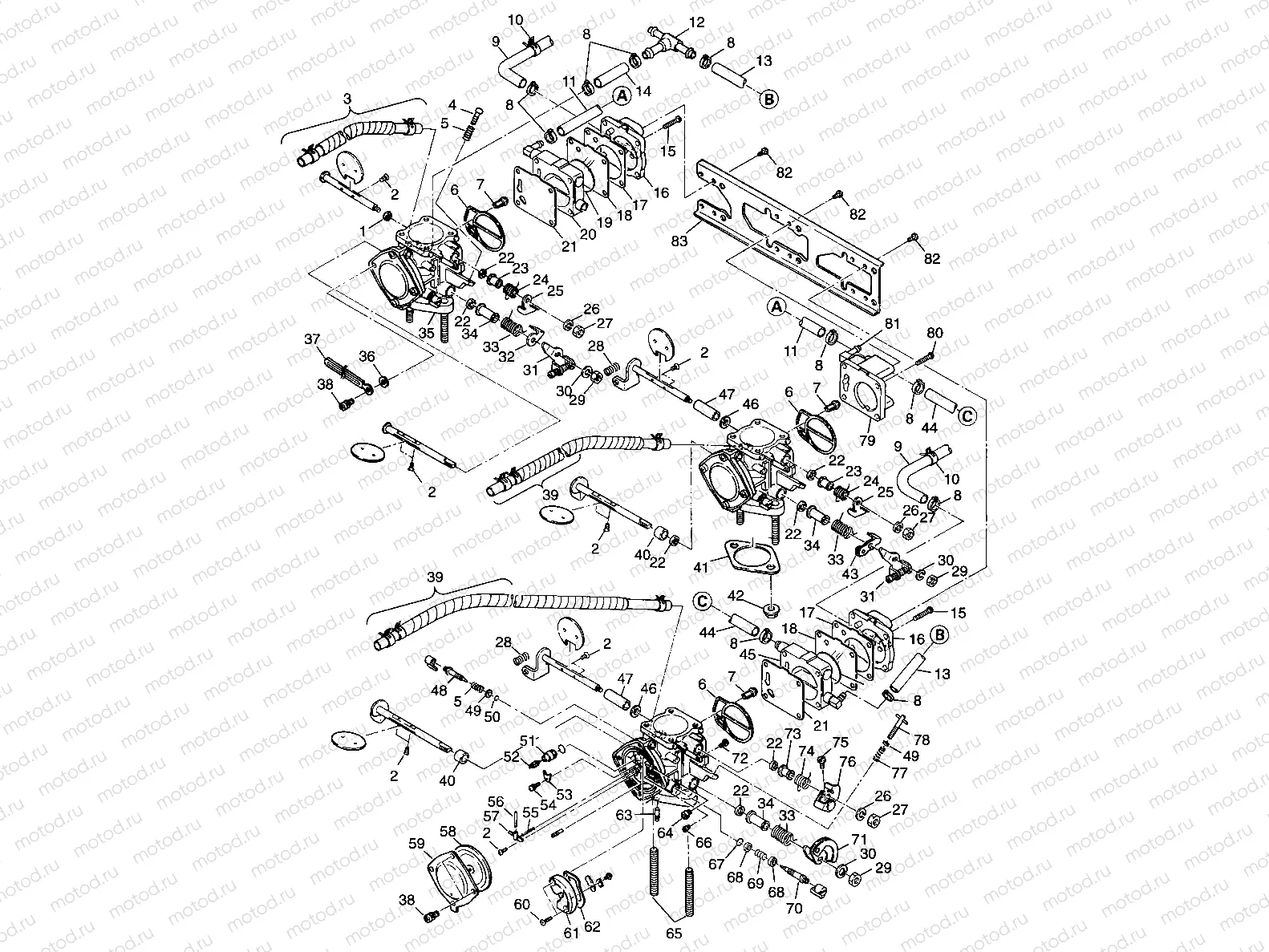

CARBURETOR - B974978 (4941254125c005) | CARBURETOR - B974978 (4941254125c005)

CARBURETOR - B974978 (4941254125c005) | CARBURETOR - B974978 (4941254125c005)
Например: 3140069
1
3140069
PACKING
2
3140065
Vis
3
3140109
PIPE ASM,VINYL,3 (Incl. Spiral Tube, 2 Clamps)
4
3140027
Vis
5
3140054
Spring
6
3140006
O-RING,(GASKET)
7
3140039
FILTER
8
3140133
CLIP
9
3140128
HOSE
10
3140133
CLIP
11
3140147
HOSE
12
3140144
NIPPLE
13
3140134
HOSE
14
3140145
HOSE
15
3140157
Vis
16
3140153
COVER ASM.
17
3140152
Gasket
18
3140151
DIAPHRAGM
19
3140154
O-Ring
20
3140146
BODY ASM,PUMP
21
3140149
DIAPHRAGM
22
3130515
SEAL
23
3140143
RING
24
3140142
Spring
25
3140138
LEVER CHOKE
26
3140078
Rondelle (spring)
27
3140079
Nut
28
3140159
Spring
29
3140011
Nut
30
3140012
Rondelle (spring)
31
3140125
LEVER ASM,THROTTLE
32
3140070
LEVER, THROTTLE
33
3140003
Spring
34
3140002
RING
35
3140123
CARBURETOR ASM.
36
3140091
Rondelle
37
3140090
PLATE
38
3140100
Vis
39
3140161
HOSE ASM. (Incl. Spiral Tube, Clamps)
40
3140126
RING
41
3240358
GASKET CARB (SLX PRO 785)
42
3240058
NUT, FLANGE,(10)
43
3140127
LEVER,THROTTLE
44
3140139
HOSE
45
3140150
BODY ASM,PUMP
46
3140080
RING
47
3140137
RING
48
3140048
ADJUSTER
49
3140014
Rondelle
50
3140049
RING
51
3140040
NEEDLEVALVE ASM.
52
3140148
CLIP
53
3140037
PLATE
54
3140038
Vis
55
3130491
SPRING 80GRM CARB-HIGH ELEV
56
3140036
PIN
57
3140041
ARM
58
3140044
DIAPHRAGM ASM.
59
3140045
Couvrir
60
3140034
Vis
61
3140035
BODY ASM.
62
3140043
Gasket
63
3140018
Vis
64
3130097
JET,MAIN RD.HD#175 (#175) Center
64
3130098
JET MAIN RD.HD#180
65
3140155
Vis
66
3140167
JET PILOT #82.5
67
3140053
O-Ring
68
3140052
Rondelle
69
3140051
Spring
70
3140160
ADJUSTER
71
3140129
LEVER ASM,THROTTLE.
72
3140158
Vis
73
3140136
SEAL
74
3140135
Spring
75
3140019
Vis
76
3140132
LEVER ASM,CHOKE
77
3140013
Spring
78
3140015
SCREW ASM.
79
3140140
COVER ASM,PUMP
80
3140098
Vis
81
3140141
JET
82
3140009
Vis
83
3140156
PLATE
