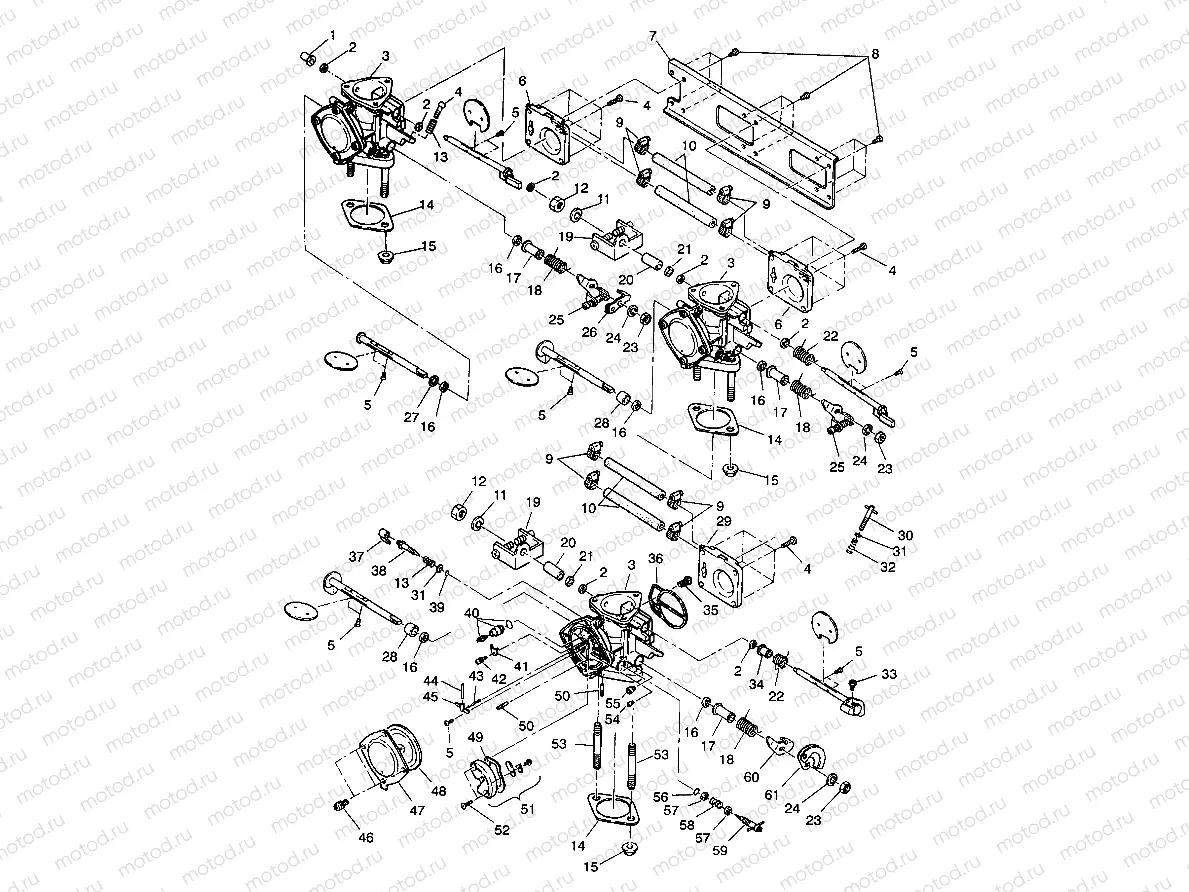

Главная Каталог товаров Polaris EPC 1994 Polaris PWC Polaris 1994 SL 650 (B944058) Polaris 1994 PWC CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A) | CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A)

CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A) | CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A)

CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A) | CARBURETOR ASSEMBLY SL 650 B944058 (4926992699025A)

Например: 3140025

1

3140025

RING

2

3140022

SEAL

3

3140073

CARBURETOR ASM. (Incl. 1-10,16-18,22-61)

4

3140027

Vis

5

3140065

Vis

6

3140075

Couvrir

7

3140008

PLATE

8

3140009

Vis

9

3140028

Collier

10

3140029

HOSE

11

3140078

Rondelle (spring)

12

3140079

Nut

13

3140054

Spring

14

3240128

GASKET,CARBURETOR,(10) (Carburetor)

15

3240058

NUT, FLANGE,(10)

16

3140001

SEAL

17

3140002

RING

18

3140003

Spring

19

3140077

SHAFT ASM,CHOKE

20

3140076

RING

21

3140080

RING

22

3140020

Spring

23

3140011

Nut

24

3140012

Rondelle (spring)

25

3140031

LEVER ASM THROTTLE

26

3140081

LEVER, THROTTLE

27

3140030

PACKING

28

3140032

RING

29

3140082

Couvrir

30

3140015

SCREW ASM.

31

3140014

Rondelle

32

3140013

Spring

33

3140019

Vis

34

3140021

RING

35

3140039

FILTER

36

3140006

O-RING,(GASKET)

37

3140047

CAP

38

3140048

ADJUSTER

39

3140049

RING

40

3140040

NEEDLEVALVE ASM.

41

3140037

PLATE

42

3140038

Vis

43

3130491

SPRING 80GRM CARB-HIGH ELEV

44

3140036

PIN

45

3140041

ARM

46

3140046

SCREW,(10)

47

3140045

Couvrir

48

3140044

DIAPHRAGM ASM.

49

3140043

Gasket

50

3140018

Vis

51

3140066

BODY ASM.

52

3140034

Vis

53

3140026

Vis

54

3140063

JET PILOT #75

55

3140074

JET,MAIN,#95 (#95)

56

3140053

O-Ring

57

3140052

Rondelle

58

3140051

Spring

59

3140050

ADJUSTER

60

3140004

LEVER, THROTTLE

61

3140010

LEVER ASM,THROTTLE
