Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH42AA SPORTSMAN 400 - A04CH42AA/AE/AG Polaris 2004 ATV (VIN: 4XACH42A) CARBURETOR - A04CH42AA/AE/AG (4986068606D05) | CARBURETOR - A04CH42AA/AE/AG (4986068606D05)

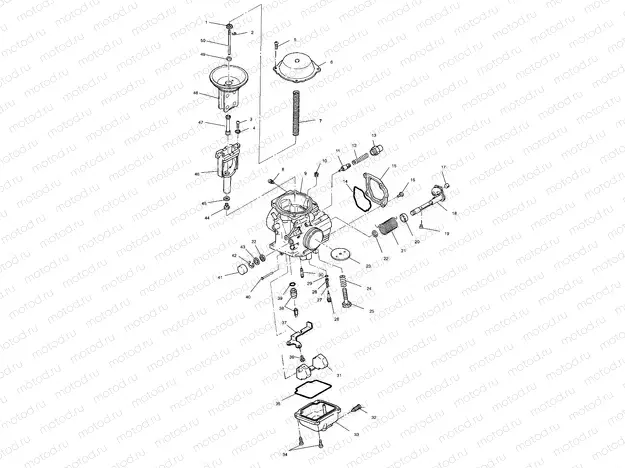

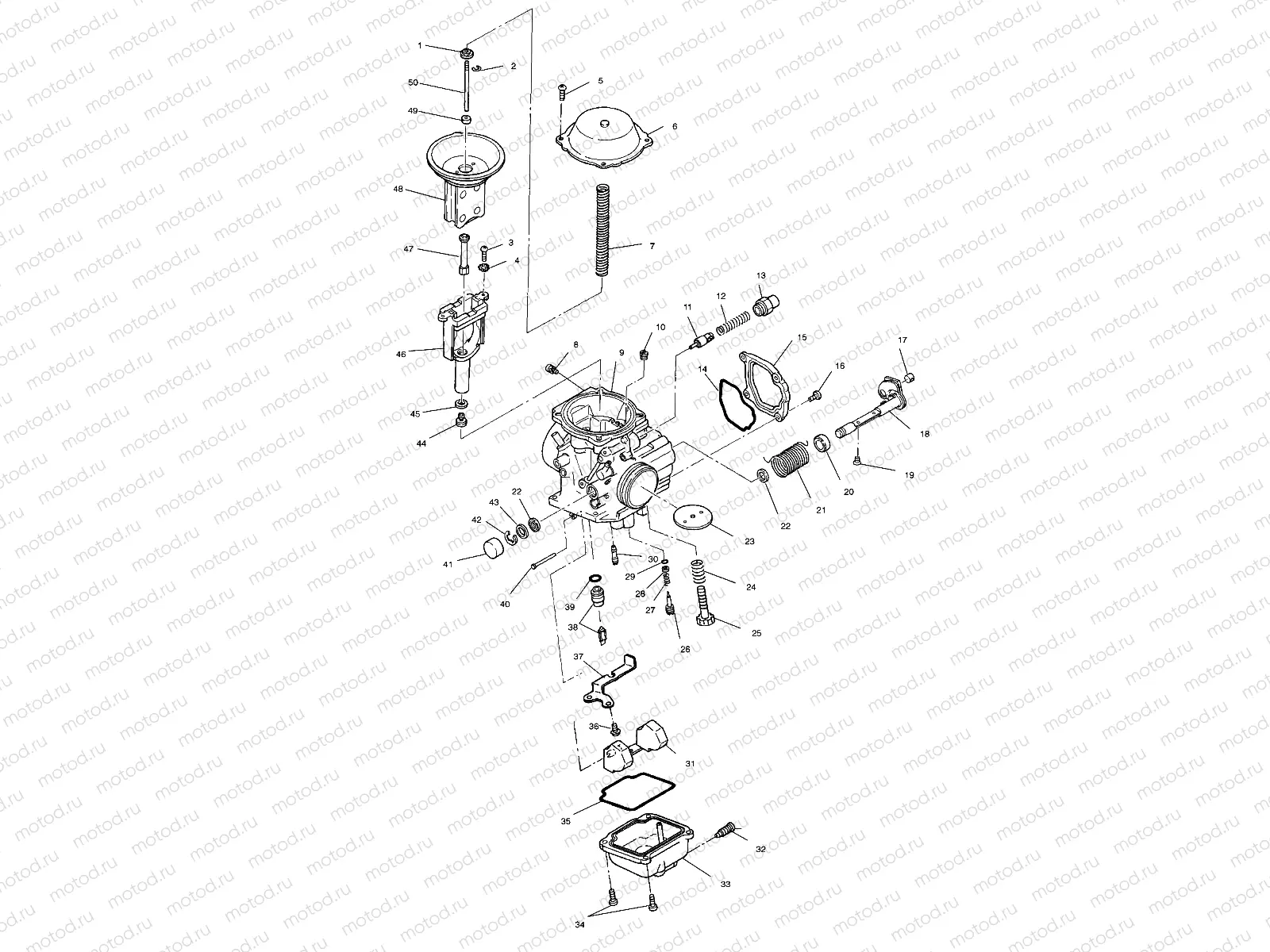

CARBURETOR - A04CH42AA/AE/AG (4986068606D05) | CARBURETOR - A04CH42AA/AE/AG (4986068606D05)

CARBURETOR - A04CH42AA/AE/AG (4986068606D05) | CARBURETOR - A04CH42AA/AE/AG (4986068606D05)

Например: 3130507

1

3130507

RING

2

3130508

E-RING

3

3130541

Vis

4

3130540

WASHER SPRING

5

3130924

Vis

6

3130503

ASM. COVER

7

3130505

Spring

8

3085698

ASM. SCREW AND WASHER

9

3131454

Asm., Carburetor [Incl. 1-33,38-46]

10

3130625

JET AIR PILOT #160

11

3130539

PLUNGER ASM.

12

3130538

Spring

13

3130199

HOLDER GUIDE

14

3130512

O-Ring

15

3130511

Couvrir

16

3130535

Vis

17

3130543

GUIDE CABLE

18

3130513

SHAFT ASM THROTTLE

19

3130501

Vis

20

3130514

RING

21

3130589

Spring

22

3130515

SEAL

23

3130502

VALVE THROTTLE 100

24

3130836

Spring

25

3131423

SCREW-ADJUST

26

3130524

ADJUSTER

27

3130525

Spring

28

3130523

Rondelle

29

3130522

O-Ring

30

3130624

JET PILOT #40

31

3130529

FLOAT ASM.

32

3130521

Vis

33

3130590

FLOATBODY ASM.

34

3130520

Vis

35

3130532

Gasket - float chamber

36

3130591

Vis

37

3130594

PLATE

38

3131360

VALVE-NEEDLE 1.5(PUSH IN)

39

3130533

O-Ring

40

3130361

PIN FLOAT

41

3130519

CAP

42

3130518

E-RING

43

LR--

CALIPER, BRAKE, RH

44

3131144

JET MAIN #167.5

45

3130014

WASHER

46

3130504

JETBLOCK ASM.

47

3131311

JET-NEEDLE (Q-0)

48

3130732

DIAPHRAGM ASM.

49

3130752

RING

50

3131312

NEEDLE-JET 5F14
