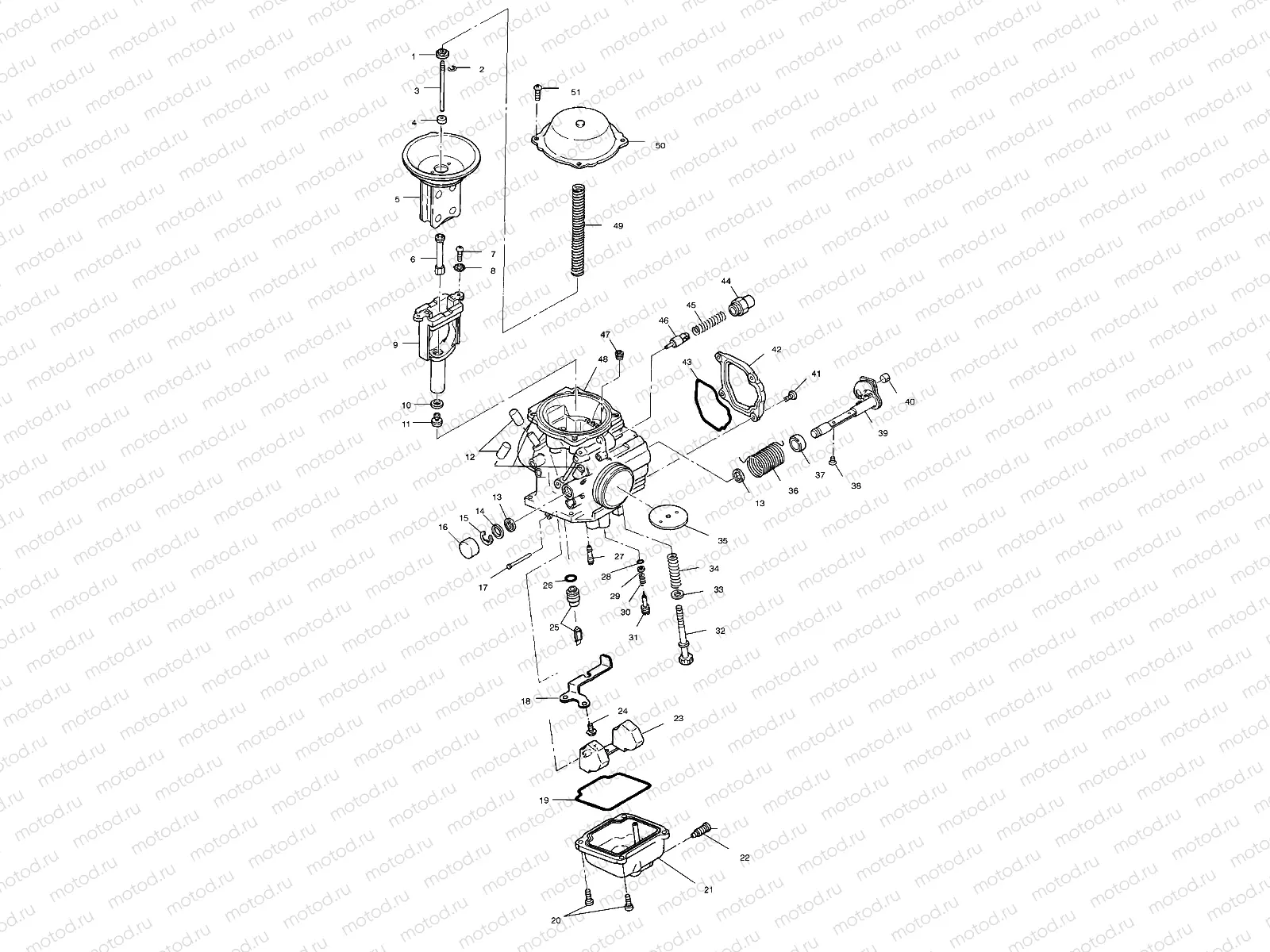

CARBURETOR - A02CH68AA/AB/AC/CA/CB (4966346634D07) | CARBURETOR - A02CH68AA/AB/AC/CA/CB (4966346634D07)

CARBURETOR - A02CH68AA/AB/AC/CA/CB (4966346634D07) | CARBURETOR - A02CH68AA/AB/AC/CA/CB (4966346634D07)

Например: 3130507

1

3130507

RING

2

3130508

E-RING

3

3131224

NEEDLE JET J8-4HB41-3

4

3130752

RING

5

3130732

DIAPHRAGM ASM.

6

3131363

JET-NEEDLE(P-6)

7

3130541

Vis

8

3130540

WASHER SPRING

9

LR--

CALIPER, BRAKE, RH

10

3130014

WASHER

11

3130570

MAIN JET #152.5

12

5434505

CAP-DIP BLACK VINYL .230X.50

13

3130515

SEAL

16

3130519

CAP

17

3130361

PIN FLOAT

18

3130594

PLATE

19

3130532

Gasket - float chamber

20

3130520

Vis

21

3130590

FLOATBODY ASM.

22

3130521

Vis

23

3130529

FLOAT ASM.

24

3130591

Vis

25

3131360

VALVE-NEEDLE 1.5(PUSH IN)

26

3130533

O-Ring

27

3131397

JET-PILOT 45

28

3130522

O-Ring

29

3130523

Rondelle

30

3130525

Spring

31

3130524

ADJUSTER

32

3130546

SCREW ADJ

33

3130545

RING

34

3130544

Spring

36

3131398

Spring

37

3130514

RING

40

3130543

GUIDE CABLE

41

3130535

Vis

42

3130511

Couvrir

43

3130512

O-Ring

44

3131396

HOLDER-GUIDE

45

3130538

Spring

46

3131395

ASM-PLUNGER

47

3130625

JET AIR PILOT #160

48

1253438

ASM-CARBURETOR BST 34MM AA

48

1253438

ASM-CARBURETOR BST 34MM AA

49

3130505

Spring

50

3130503

ASM. COVER

51

3130924

Vis
