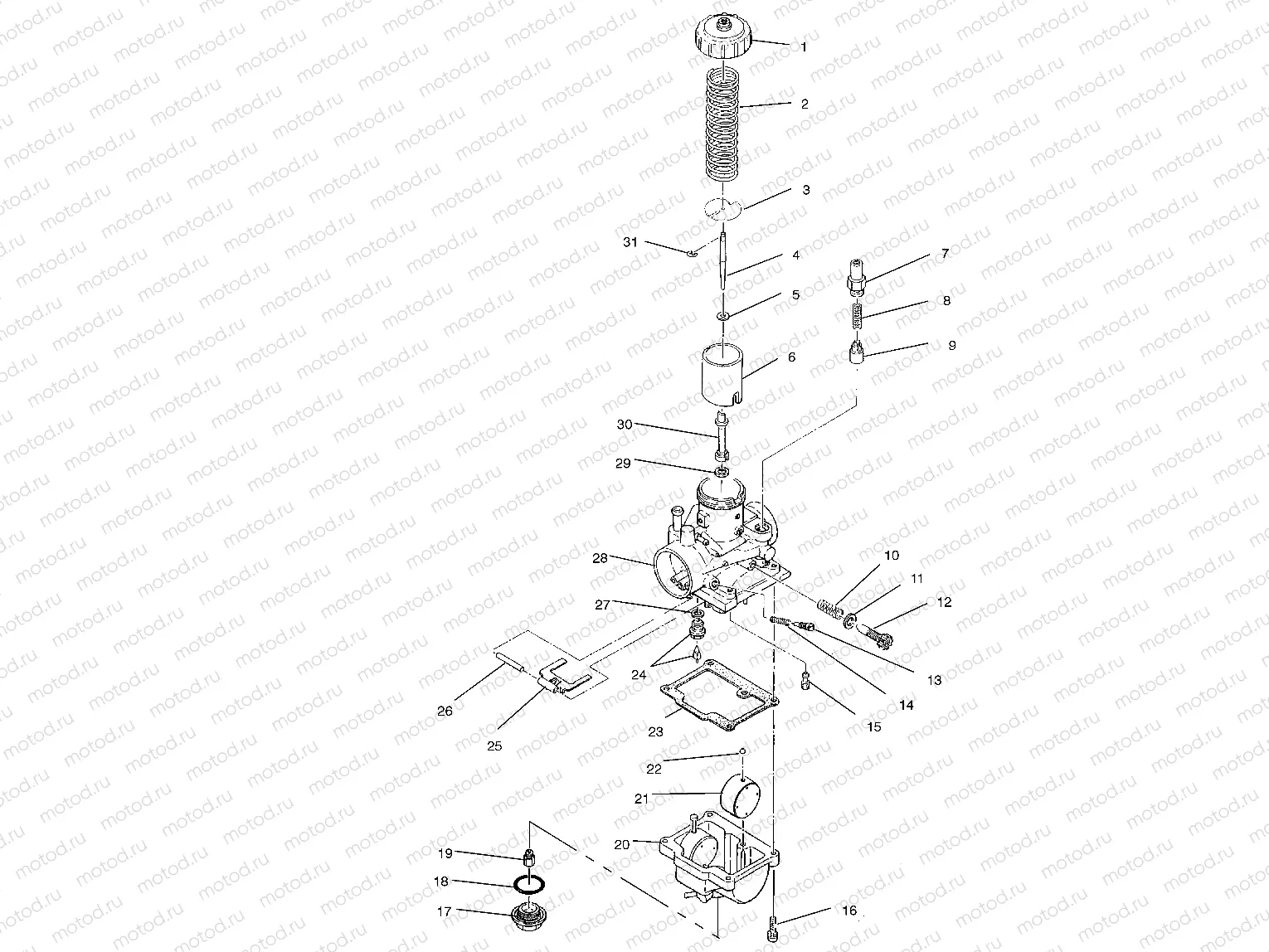

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SCRAMBLER 400 4X4 (A02BG38CA) Polaris 2002 ATV CARBURETOR - A02BG38CA (4974677467C14) | CARBURETOR - A02BG38CA (4974677467C14)

CARBURETOR - A02BG38CA (4974677467C14) | CARBURETOR - A02BG38CA (4974677467C14)

CARBURETOR - A02BG38CA (4974677467C14) | CARBURETOR - A02BG38CA (4974677467C14)

Например: 3130184

1

3130184

ASM. TOP MIXING CHAMBER

2

3130496

SPRING THROTTLE

3

3130027

PLATE THROTTLE

4

3130476

JET NEEDLE

5

3130355

Rondelle

6

3130494

VALVE THROTTLE (1.5)

7

3130199

HOLDER GUIDE

8

3131764

SPRING THROTTLE SS

9

3130328

ASM. PLUNGER

10

3130436

SPRING THROT.ADJ.

11

3130447

Rondelle

12

3130009

SCREW THROTTLE STOP

13

3130011

SCREW AIR

14

3130012

SPRING AIR ADJUST

15

3130064

JET PILOT #25

16

3130025

ASM. SCREW & WASHER

17

3130432

SCREW GUIDE

18

3130239

O-Ring

19

3130127

JET MAIN HX.HD#240

20

3130443

BOWL, FLOAT (350)

21

3130430

FLOAT ASM.

22

3130237

CAP

23

3130020

Gasket - float chamber

24

3131385

VALVE-NEEDLE 2.5 (THREADED)

25

3130018

ARM FLOAT

26

3130361

PIN FLOAT

27

3130047

Rondelle

28

3131404

ASM-CARBURETOR (Incl. 1-31)

29

3130596

RING MAIN JET

30

3130429

NEEDLE JET ASM.

31

3130508

E-RING
