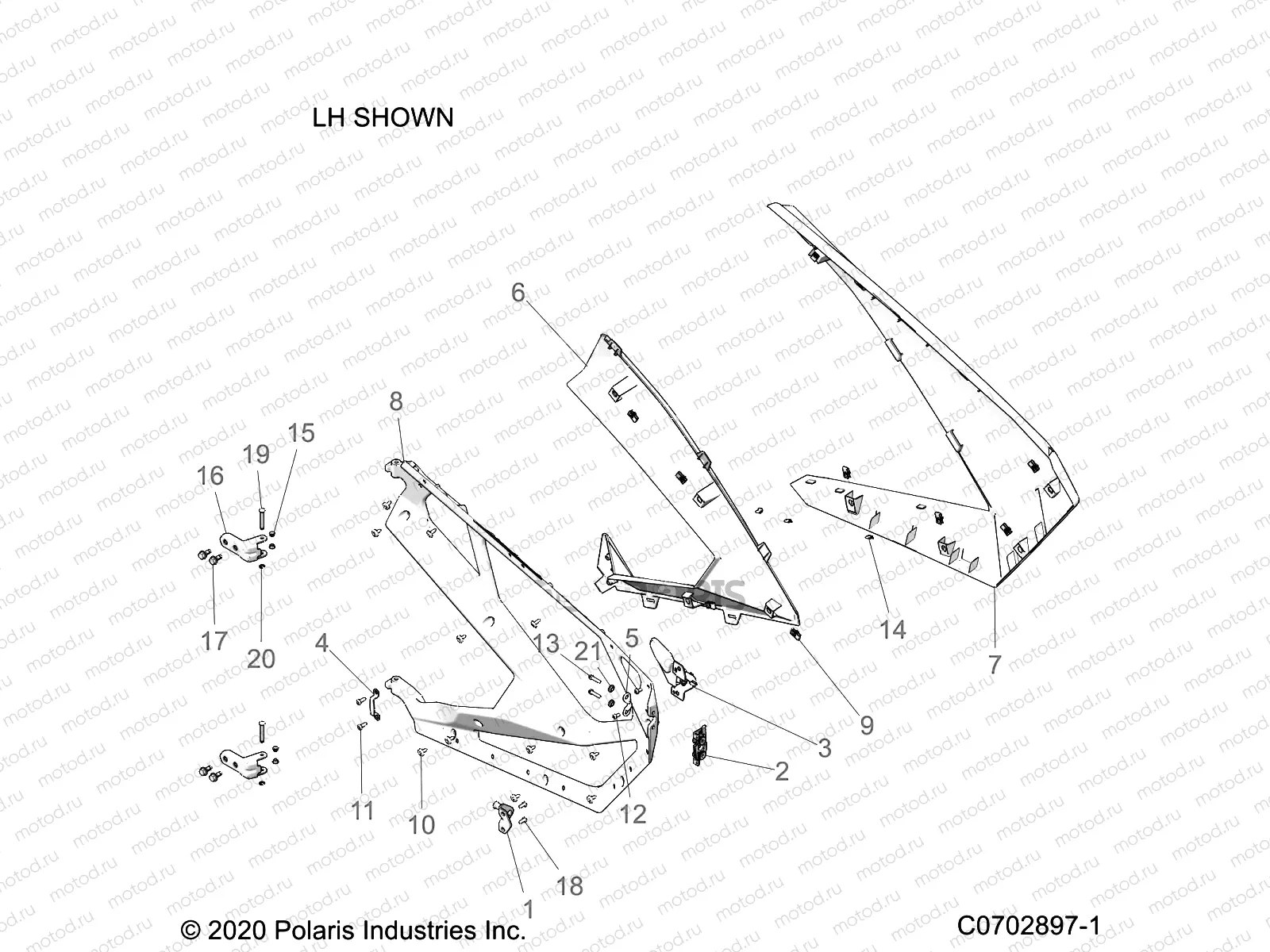

BODY | BODY, DOORS - Z20RAB92LR/D92LC/E92LT (C0702897)

BODY | BODY, DOORS - Z20RAB92LR/D92LC/E92LT (C0702897)
1
1026523
WELD-STRIKER
2
2637040
ASM-LATCH DOOR RH
2
2637039
ASM-LATCH DOOR LH
3
2637403
ASM-ACTUATOR LATCH RH
3
2637402
ASM-ACTUATOR LATCH LH
4
5267829
BRKT-TRIM DOOR
5
2208914
BUMPER-DOOR
5
2208914
BUMPER-DOOR
6
5455214-653
PANEL-DOOR REAR LH TTMM
6
5455214-070
PANEL-DOOR REAR LH BLK
6
5455215-795
PANEL-DOOR REAR RH PII BLUE
6
5455215-070
PANEL-DOOR REAR RH BLK
6
5455214-795
PANEL-DOOR REAR LH PII BLUE
7
5455961-293
PANEL-DOOR FRT PAINT RH I.RED
7
5455960-293
PANEL-DOOR FRT PAINT LH I.RED
7
5455961-599
PANEL-DOOR FRT PAINT RH WH LTG
7
5455190-070
PANEL-DOOR FRONT RH BLK
7
5455960-599
PANEL-DOOR FRT PAINT LH WH LTG
7
5455189-070
PANEL-DOOR FRONT LH BLK
8
5634424-458
CASTING-DOOR FRAME LH BLK
8
5634425-458
CASTING-DOOR FRAME RH BLK
9
7081305
CLIP-U SPEED NUT
10
7518936
SCR-M6X1X16 TR/TX-M
11
7519045
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
12
7519063
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
13
7519297
Vis
14
7670040
CLIP-U TYPE
15
5266311
BUSHING-DOOR PIVOT
16
5267526
BRKT-DOOR HINGE
17
7518450
BOLT-M8X20-1.25 HX HD FLG
18
7518656
BOLT-M6X1.0X15 PH/TX-OLIVE D
19
7662356
PIN-DOOR HINGE
20
7710466
E-CLIP M6
21
5140211
BOLT-SHOULDER SLEEVE

Узлы для RZR TURBO PRO XP LT (R03) - Z20RAB92LR/D92LC/E92LT Polaris 2020 RZR
