Главная Каталог товаров HUSQVARNA EPC 2011 HUSQVARNA SM-TE 630 HUSQVARNA 2011 (VIN: ZKHA400A) BODY

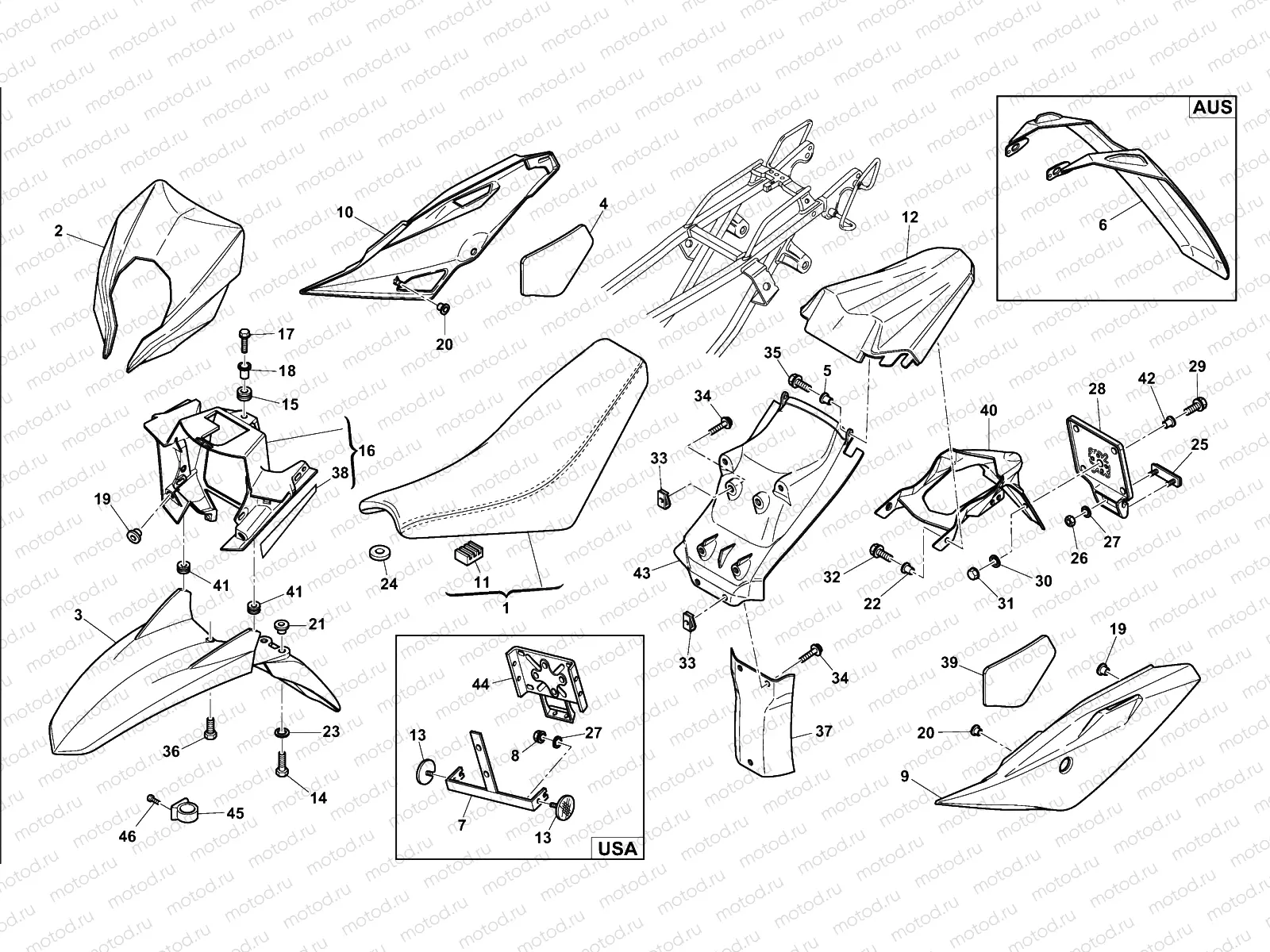

BODY

BODY

Например: 80A0H1192

1

80A0H1192

Saddle assy

1

8000H1192

Saddle assy

2

80C0H1265

OWLING ASSY

3

80C0A4711

Front mudguard

3

80C0H1987

Front mudguard

4

8000H1696

SHIELD, HEAT

5

8000H3806

BUSH

6

8000H1518

REAR MUDGARD EXTENTION

7

8000H3215

Collier

8

Z00056443

Nut (Lock)

9

8000H1883

SIDE COVER, LEFT

9

8000H1988

SIDE COVER, LEFT

9

8000H2189

SIDE COVER, LEFT

9

8000H6285

SIDE COVER, RIGHT

10

8000H1884

SIDE COVER, RIGHT

10

8000H1897

SIDE COVER, RIGHT

10

8000H2188

SIDE COVER, RIGHT

10

8000H6284

SIDE COVER, LEFT

11

86610191A

.CUSHION, SEAT

12

80C0H1269

REAR FENDER

12

80C0H1989

REAR FENDER

13

8000H3366

REFLEX REFLECTOR, REAR

14

Z00062727

Vis

15

8000H3250

RUBBER

16

8000H2415

FAIRING ASSY

17

8A00A8423

Vis

18

8000H3251

Entretoise

19

SPMV800041874

5 pc - Damper

20

8000H2368

RUBBER

21

Z00069429

BUSH

21

8C0069429

BUSH

22

8C0069429

BUSH

23

800048814

Rondelle

24

8000H2959

Rondelle

25

SPMV800073834

REFLECTOR

27

62ND15547

WASHER D12-D4,3-SP0,8

28

8000H3018

LICENCE PLATE HOLDER

29

Z00067997

Vis

30

62ND15547

WASHER D12-D4,3-SP0,8

31

800040717

NUT FLANGE M4X0.7

32

8A00A8423

Vis

33

U00046893

Clip nuts (M6x1)

34

8A00A8423

Vis

35

8A00A8423

Vis

36

0025060206

Vis

37

800069551

COVER, SHOCK ABSORBER

39

8000H1901

SHIELD, HEAT

40

8A00H1405

REAR STAY COMP.

41

800095128

Damper

42

800069282

Bushing

43

8000H1268

FENDER, REAR (BLACK)

44

800094038

BRACKET LICENSE

45

8000A0864

GUIDE, FRONT BRAKE HOSE

46

8A0037283

Vis
