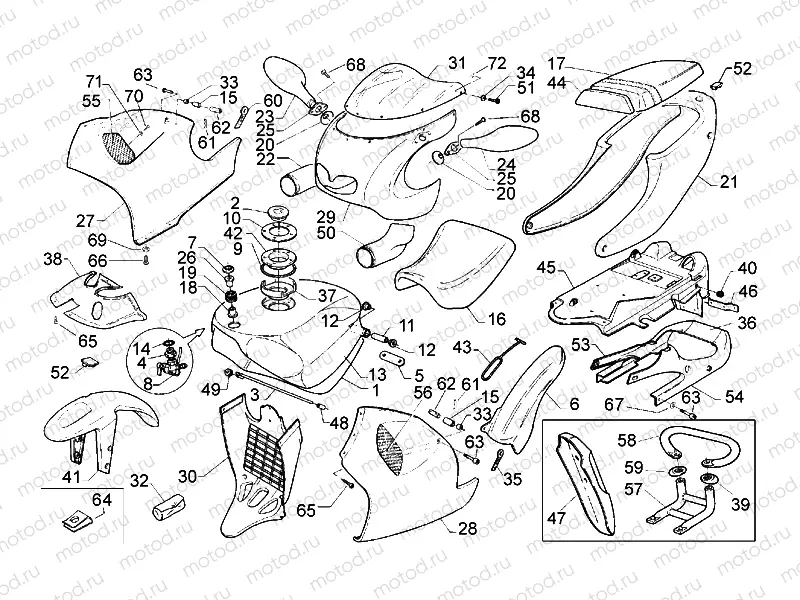

Body

1

AP8131605

Fuel tank

2

AP8202380

Crom.tank plug

3

AP8121803

Fuel tank fastener rod

4

AP8221176

Fuel tap union

5

AP8120815

Fuel tank spacer

6

AP8126356

Low mudguard, black

7

AP8121819

5 pc - Rondelle

8

AP8102802

Robinet d'essence

9

AP8120702

Filler cap gasket

10

AP8102361

Ring nut fuel filler cap

11

AP8152153

Rear spacer

12

AP8120709

pc - Rubber spacer *

13

AP8139071

Fuel tank cover, grey

13

AP8139436

Fuel tank cover, blue

13

AP8139086

Fuel tank cover, black

13

AP8138655

Fuel tank cover, grey

13

AP8138707

Fuel tank cover, bl./gr.

13

AP8139451

Fuel tank cover, black

14

AP8120796

O-ring 3050

15

AP8120699

Lat.frng fix.pipe

16

AP8129118

Driver saddle, black

16

AP8129209

Driver saddle, red

16

AP8129236

Driver saddle, red

17

AP8129191

Rear saddle, grey

17

AP8129234

Rear saddle, grey (no belt)

17

AP8129219

Long rear saddle, black

17

AP8129218

Rear saddle, black (no belt)

17

AP8129192

Rear saddle, grey

17

AP8129235

Long rear saddle, grey

18

AP8221106

pc - Rear brake lever bush

19

AP8120557

Damper

20

AP8102341

pc - Mirror joint cup

21

AP8139610

Rear fairing, black

21

AP8138659

Rear fairing, m.grey

21

AP8139076

Rear fairing, s. grey

21

AP8139440

Rear fairing, grey/blue

21

AP8138760

Rear fairing, black

22

AP8138302

RH air duct

23

AP8102705

RH rearview mirror

23

AP8102632

Rétroviseur droite

24

AP8102633

Rétroviseur gauche

24

AP8102706

LH rearview mirror

25

AP8102909

Mirror insertion kit

26

AP8121114

0 pc - Entretoise

27

AP8138658

RH side panel, m.grey

27

AP8139607

RH side panel, black

27

AP8139072

RH side panel, s.grey

27

AP8139406

RH hol.pun.panel, black

27

AP8139438

RH side panel, red

27

AP8138547

RH side panel, black

27

AP8139407

RH hol.pun.panel, red

28

AP8138484

LH side panel, black

28

AP8139106

LH hol.pun.panel, grey

28

AP8139454

LH side panel, black

28

AP8139073

LH side panel, s.grey

28

AP8139468

LH hol.pun.panel, black

28

AP8138460

LH hol.pun.panel, black

28

AP8139467

LH hol.pun.panel, red

28

AP8138657

LH side panel, m.grey

28

AP8139439

LH side panel, red

29

AP8139609

Front fairing, black

29

AP8138482

Front fairing, black

29

AP8139075

Front fairing, s.grey

29

AP8139437

Front fairing, blue/grey

29

AP8138656

Front fairing, m.grey

30

AP8138469

Water cooler shield, black

31

AP8131916

Windshield

32

AP8102106

Trousse d'outils

33

AP8120531

Rubber w/ insert

34

AP8120965

pc - O-Ring

35

AP8134272

Lower plate fairing

35

AP8134263

Lower plate fairing

36

AP8138683

Centr.saddle sup cov., grey

36

AP8139051

Centr.saddle sup cov.,s.grey

36

AP8138085

Centr.saddle sup cov., black

36

AP8139442

Centr.saddle sup cov., grey

37

AP8135307

Fuel tank

38

AP8138304

Low.front fairing lockup

39

Rh mirror rubber

40

AP8120223

pc - Damper

41

AP8126538

Front mudguard, m. grey

41

AP8126670

Front mudguard

41

AP8126666

Front mudguard, cos. blue

41

AP8126510

Front mudguard

41

AP8126613

Front mudguard, s.grey

42

AP8102233

Filler cap

43

AP8120177

5 pc - Elastic

44

AP8129154

Seat cushion

44

AP8129190

Seat cushion

44

AP8129214

Seat cushion, grey

45

AP8126501

N.plate holder/glove comp.

46

AP8134257

N.plate support

47

AP8126385

Rear extension

48

AP8120712

pc - Rubber spacer

49

AP8120598

Rubber spacer *

50

AP8138303

LH air duct

51

AP8121303

Rivet, anodized nat. 5x10

51

AP8102603

Rivet, anodized blu 5x10

52

AP8120708

Cable-guide

53

AP8138083

RH saddle sup cov., black

53

AP8138681

RH saddle sup cov., m.grey

53

AP8139049

RH saddle sup cov., s.grey

53

AP8139441

RH saddle sup cov., grey

54

AP8139050

LH saddle sup cov., s.grey

54

AP8138462

LH hol.pun.s.sup c., black

54

AP8138485

LH saddle sup cov., black

54

AP8138682

LH saddle sup cov., m.grey

54

AP8139067

LH hol.pun.s.sup c., grey

54

AP8139581

LH saddle sup cov., grey

55

AP8131733

RH side panel guard

56

AP8131734

LH side panel guard

57

AP8134403

Handle support

58

AP8135973

illion grab bar, cat.

58

AP8146142

illion grab bar, grey cat.

59

Rubber spacer *

60

AP8134243

Upper RH fair.supp. plate

61

AP8201287

5 pc - Split pin

62

AP8121867

Special bush *

63

AP8152269

0 pc - Vis

64

AP8102375

Clip nuts (M5)

65

AP8152298

Vis

66

AP8152268

0 pc - Vis

67

AP8150178

pc - Rondelle

68

AP8152246

Vis

69

AP8150248

pc - Rondelle

70

AP8150420

pc - Vis

71

AP8150158

pc - Rondelle (4,3x9x0,8)

72

AP8150450

pc - Washer for shafts D5 (D5)
