Главная Каталог товаров Triumph EPC 2012 Triumph AMERICA EFI Triumph 2012 Airbox

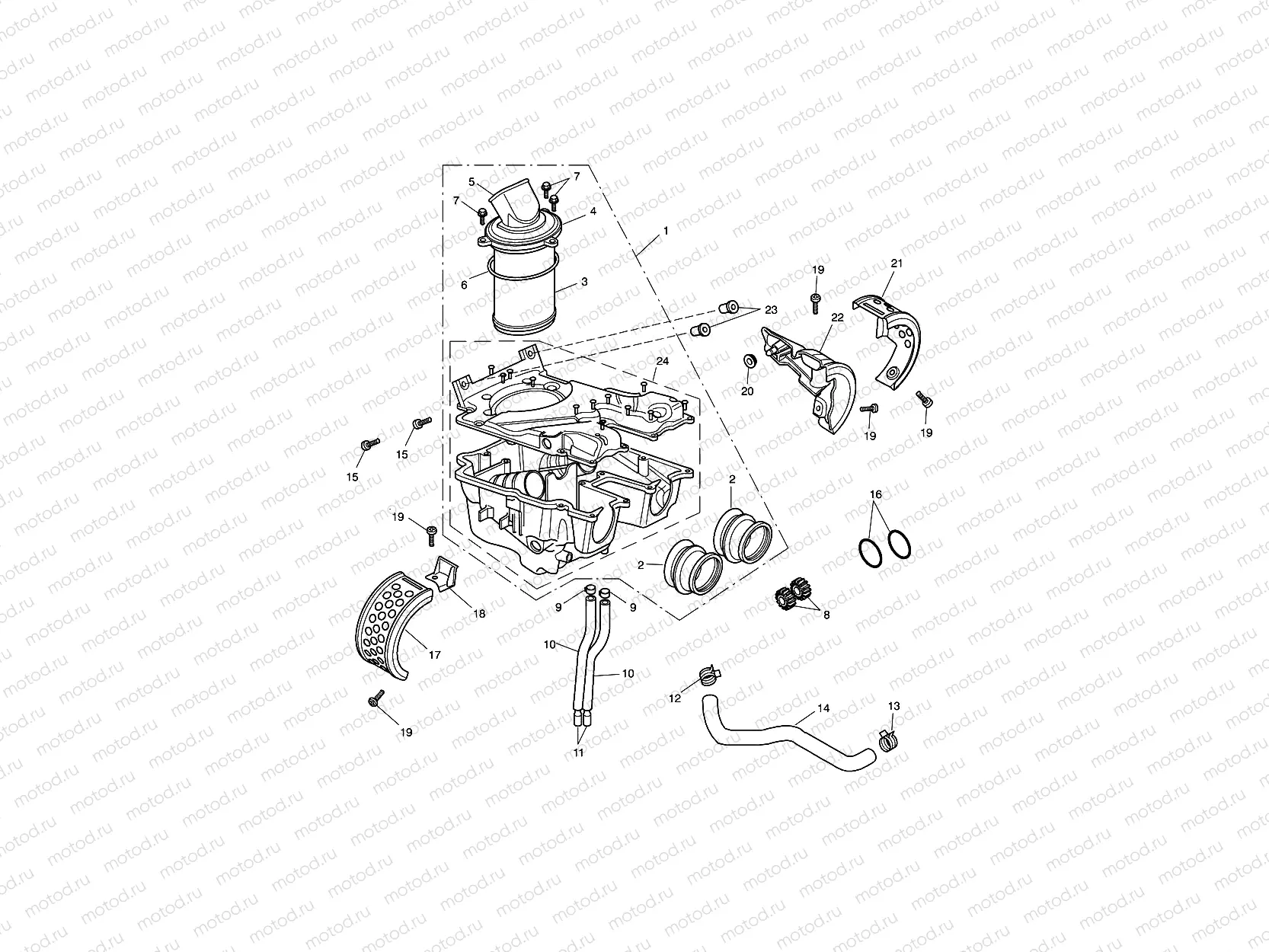

Airbox

Airbox

Например: T2208495

1

T2208495

Airbox assembly

1

T2208575

Airbox Assembly

1

T2208576

Airbox Assembly

2

T2203545

Intake Runner

2 шт. в узле

4

T2208012

Cover, Intake

5

T2202505

Air inlet

6

T3600255

O-Ring

7

T3330583

Screw, HHF, Ph, M5 x 14, Blk

3 шт. в узле

8

T2202503

Bush, Rubber, Airbox Mtg

2 шт. в узле

9

T3700030

Clip pipe

2 шт. в узле

10

T3620239

Pipe, Airbox Drain

2 шт. в узле

11

T3450145

End Tip

2 шт. в узле

12

T3700051

Hose Clip, Dia 18.1-20 x 8mm

2 шт. в узле

13

T3700076

Hose Clip, 14-15.5

14

T2200159

Pipe, Engine Breather

16

T3700041

Clip, Intake, Venturi, 60mm, C

2 шт. в узле

17

T2208114

Cover, Airbox, RH, Pltd

18

T2208118

Bracket, Airbox Cover

19

T3332568

Vis

5 шт. в узле

20

T3020029

Grommet, Side Panel

2 шт. в узле

21

T2208110

Cover, Airbox LH, Pltd

22

T2208222

Airbox Cover, LH

23

T3010061

Flanged Sleeve, M6 x 9 x 3.25

2 шт. в узле

24

T2208491

Airbox Plenum Assy

24

T2208575

Airbox Assembly
