Главная Каталог товаров Triumph EPC 2007 Triumph DAYTONA 675 up to VIN 381274 Triumph 2007 (VIN: SMTTMD10, SMTTMD20) Airbox

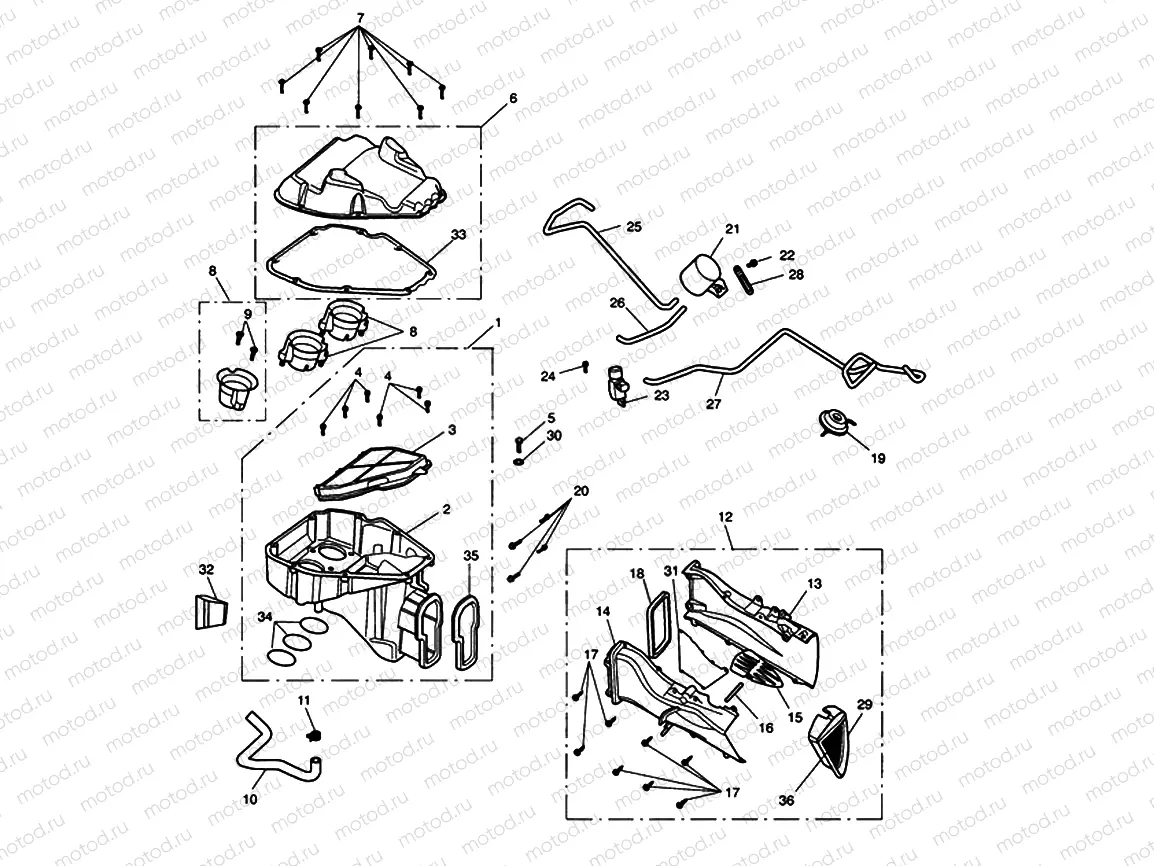

Airbox

Airbox

Например: T2200501

1

T2200501

Airbox Assy, Lower

1

T2203925

Spares Kit, Airbox Assy

2

T2203925

Spares Kit, Airbox Assy

2

T2200492

Airbox, Lower

3

T2203153

Air Filter Multipack (20)

3

T2203118

Air Filter Multipack (10)

3

T2208164

Filtre à air

4

T3330771

Bolt, Domed, M5 x 10

6 шт. в узле

5

T3205065

Bolt, HHF, Lghtd, M6 x 20, Enc

3 шт. в узле

6

T2203925

Spares Kit, Airbox Assy

6

T2200628

Kit, Air Temp Sensor

7

T3331417

Screw, HHF, 50 x 18, Slv

8 шт. в узле

8

T2207603

Intake Trumpet, Assy

3 шт. в узле

9

T3330827

Bolt, Shouldered, M5 x 0.8

6 шт. в узле

10

T2200440

Breather Hose

11

T3700051

Hose Clip, Dia 18.1-20 x 8mm

2 шт. в узле

12

T2200637

Intake Duct Assembly

13

T2200638

Duct, LHS

13

T2200637

Intake Duct Assembly

14

T2200637

Intake Duct Assembly

14

T2200639

Duct, RHS

15

T2200975

Flap

16

T2200978

Spindle, Flap

17

T3330195

Screw, Pozi, S/Tap, 1.6 x 19

9 шт. в узле

18

T2200979

Foam Seal, Headstock

19

T2200980

Diaphragm, Vacuum

20

T3331099

Bolt, HHF, M6 x 20, S/S

4 шт. в узле

21

T2200999

ank Vacuum, Reservoir

22

T3202304

Bolt, RHHF, M6 x 20, Slv

23

T2200985

Solenoid, Vacuum

24

T3332568

Vis

25

T2200990

Hose, Formed, Reservoir

26

T2200991

Hose, Formed, Solenoid

27

T2200992

Hose, Formed, Diaphragm

28

T3700400

Harness Clip

29

T2200949

Seal, Rubber, Cockpit

30

T3555026

Washer, 6.4 x 18 x 1.6

31

T2201061

Stiffening Plate

31

T2200637

Intake Duct Assembly

32

T2200449

Foam, Breather Chamber

33

T2208163

Airbox Seal

34

T2208180

Airbox/Throttle Body, O Ring

3 шт. в узле

35

T2208185

Foam Seal, Headstock

36

T2200952

Grille, Air Intake
