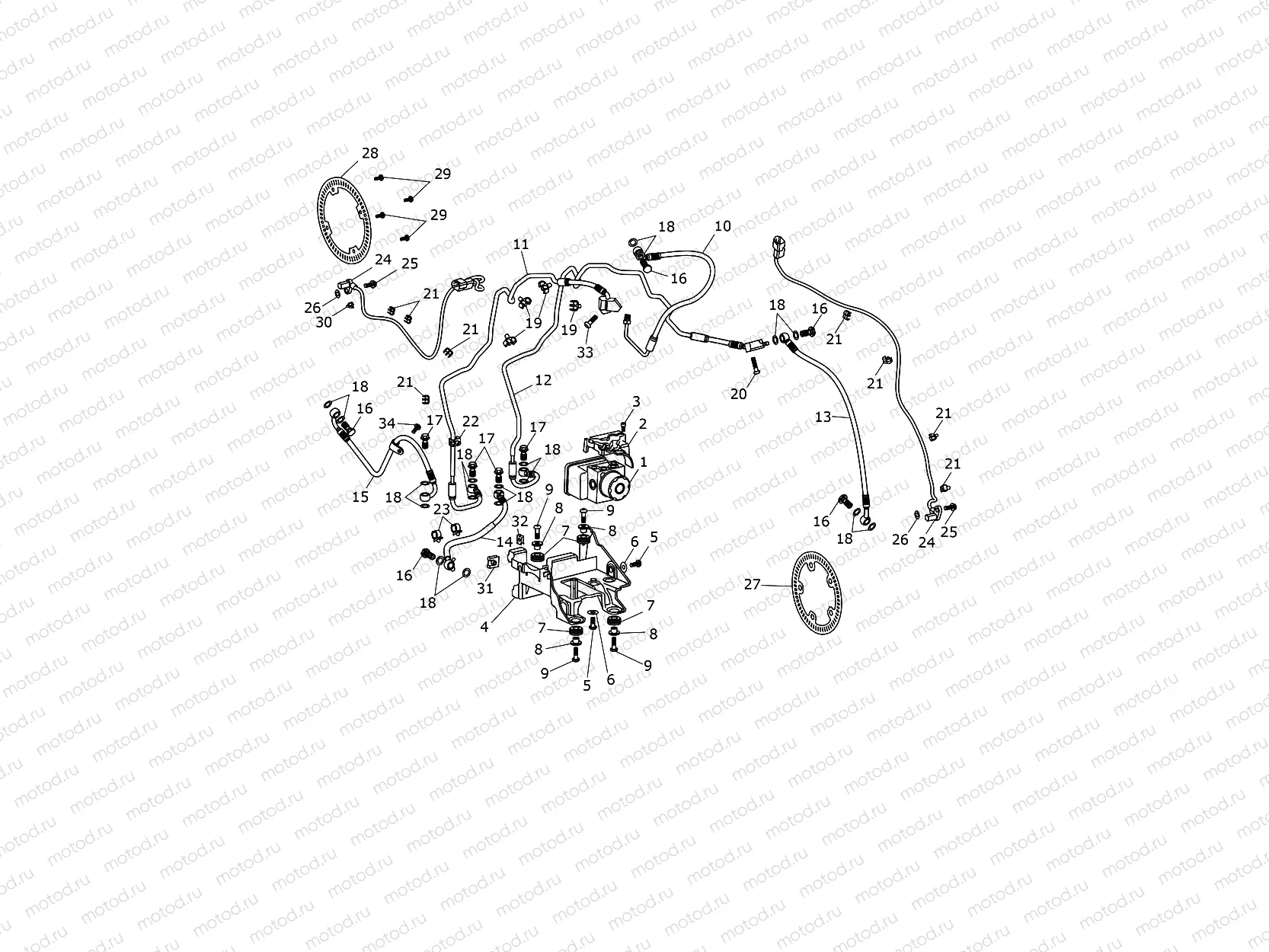

ABS System

ABS System

Например: T2025561

1

T2025561

ABS Modulator, Wet

2

T2025582

Banjo Guide, Anti-Rotation

3

T3050341

Screw, Cap/Hd, M5 x 10, Slv

4

T2025585

Bracket, ABS Modulator

5

T3331044

Screw, Pan/Hd, Tx, M6 x 16, Sl

2 шт. в узле

6

T3555011

Washer, 6.5 x 20 x 2

2 шт. в узле

7

T3021100

Grommet, Dia 13 x 1.8

3 шт. в узле

9

T3331191

Screw, Pan/Hd Tx, M6 x 20, Enc

4 шт. в узле

10

T2025570

Brake Line, M/Cyl to HS, Front

11

T2025571

Brake Line, HS to Modulator, F

12

T2021673

Brake Line, Mod to HS, Front

13

T2025576

Brake Line, HS to Cal, Front

14

T2025590

Brake Line, M/Cyl to Mod, Rear

15

T2025595

Brake Line, Mod to Cal, Rear

16

T3250125

Bolt, Banjo, M10 x 21

17

T3250032

Banjo Bolt, M10 x 19

4 шт. в узле

18

T3550229

Washer, 15.2 x 10 x 1, Plated

6 шт. в узле

19

T3700197

Clip, Hose, 6.5d, Twin

4 шт. в узле

20

T3331041

Screw, Pan/Hd, Tx, M6 x 25, En

21

T3700237

Clip, Twin, 3.9 - 6.0

8 шт. в узле

22

T3700193

Clip, Double, Firtree

2 шт. в узле

23

T3700108

Clip, Cable, 14.3 x 10

2 шт. в узле

24

T2027270

Sensor, Wheel Speed, HAS-5, 27

25

T3330334

Screw, Tx, Pan/HD, M6 x 16, Sl

2 шт. в узле

26

T3552001

Washer, M6 x 14 x 0.5

2 шт. в узле

26

T3552004

Washer, M6 x 14 x 2.0

26

T3552003

Washer, M6 x 14 x 1.5

2 шт. в узле

26

T3552002

Washer, M6 x 14 x 1.0

2 шт. в узле

27

T2022122

Pulser Ring, 5 x 100.5 pcd

2 шт. в узле

28

T2020776

Pulser Ring, Rear

29

T3330649

Screw, Pan/Hd, Tx, M5 x 12, Sl

10 шт. в узле

30

T3700062

Fir Tree Clip

31

T3351021

Nut, Captive, M6, Slv

32

T3350161

Nut, Captive, M5

33

T3331234

Screw, Torx, P/H, M6 x 20, Slv

34

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En
